SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R440 E1
(Intel Xeon E5420,2.50GHz)

CPU2006 license: 20 Test date: Jan-2008
Test sponsor: Bull SAS Hardware Availability: Dec-2007
Tested by: NEC Corporation Software Availability: Nov-2007

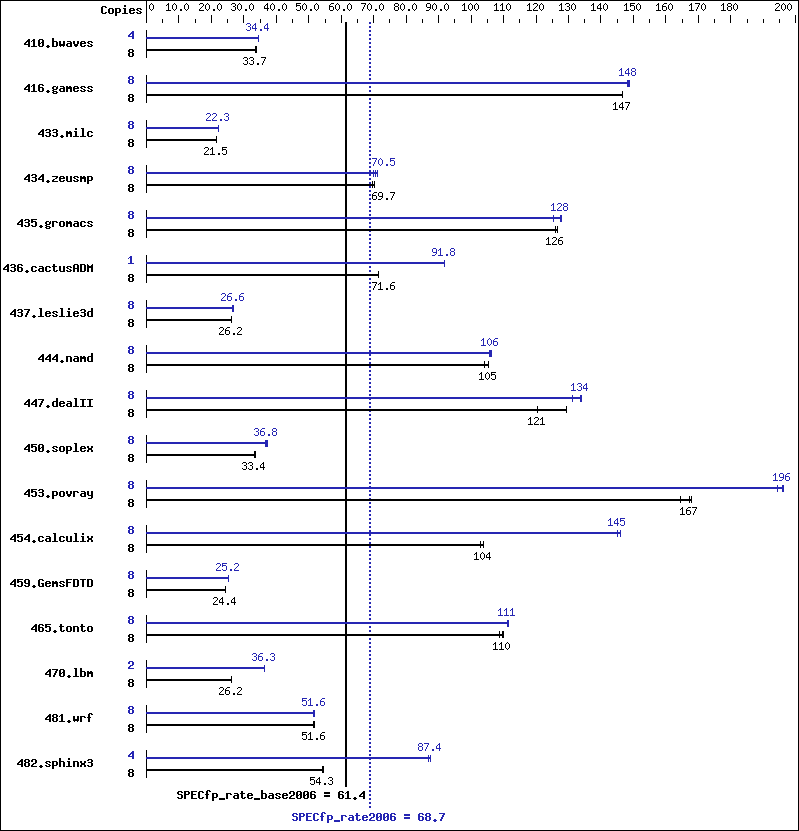

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5420
CPU Characteristics: 2.50 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 15000RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64
version 10.1 Build 20070913 Package ID:
l_cc_p_10.1.008,
l_fc_p_10.1.008
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3226 33.7 3222 33.7 3225 33.7 4 1580 34.4 1581 34.4 1581 34.4
416.gamess 8 1069 147   1068 147   1068 147   8 1054 149   1055 148   1057 148
433.milc 8 3415 21.5 3410 21.5 3409 21.5 8 3300 22.3 3298 22.3 3296 22.3
434.zeusmp 8 1045 69.7 1038 70.1 1044 69.7 8 1040 70.0 1032 70.5 1024 71.1
435.gromacs 8 453 126   453 126   451 127   8 447 128   448 128   455 126
436.cactusADM 8 1335 71.6 1336 71.6 1336 71.6 1 130 91.9 130 91.8 130 91.8
437.leslie3d 8 2873 26.2 2874 26.2 2874 26.2 8 2822 26.6 2822 26.6 2823 26.6
444.namd 8 609 105   616 104   609 105   8 604 106   606 106   608 106
447.dealII 8 759 121   708 129   759 121   8 685 134   682 134   697 131
450.soplex 8 2010 33.2 1997 33.4 1994 33.5 8 1814 36.8 1812 36.8 1794 37.2
453.povray 8 253 168   259 165   255 167   8 217 196   219 194   217 196
454.calculix 8 636 104   636 104   641 103   8 454 145   455 145   452 146
459.GemsFDTD 8 3484 24.4 3489 24.3 3481 24.4 8 3371 25.2 3371 25.2 3356 25.3
465.tonto 8 717 110   724 109   717 110   8 707 111   708 111   707 111
470.lbm 8 4204 26.1 4199 26.2 4189 26.2 2 757 36.3 758 36.2 757 36.3
481.wrf 8 1737 51.5 1728 51.7 1731 51.6 8 1731 51.6 1737 51.5 1731 51.6
482.sphinx3 8 2860 54.5 2869 54.3 2869 54.3 4 898 86.8 892 87.4 890 87.6

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs
 OMP_NUM_THREADS set to number of cores (default).

Platform Notes

Bios settings:
Intel SpeedStep Technology: Disabled

General Notes

All benchmarks compiled in 64-bit mode except 437.leslie3d,
450.soplex, 470.lbm and 482.sphinx3, for peak, are
compiled in 32-bit mode
 The NEC Express5800/120Rh-1(Intel Xeon Prosessor E5420),
 the NEC Express5800/120Rj-2(Intel Xeon Prosessor E5420),
 the Bull NovaScale R440 E1 (Intel Xeon E5420,2.50GHz) and
 the Bull NovaScale R460 E1 (Intel Xeon E5420,2.50GHz) models are electronically equivalent.
 The results have been measured on a NEC Express5800/120Rj-2(Intel Xeon Prosessor E5420) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-FP-intel64-linux-flags.20090713.00.xml.
