SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL165 G5
(2.3 GHz AMD Opteron 2356)

SPECfp®2006 = 18.2

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

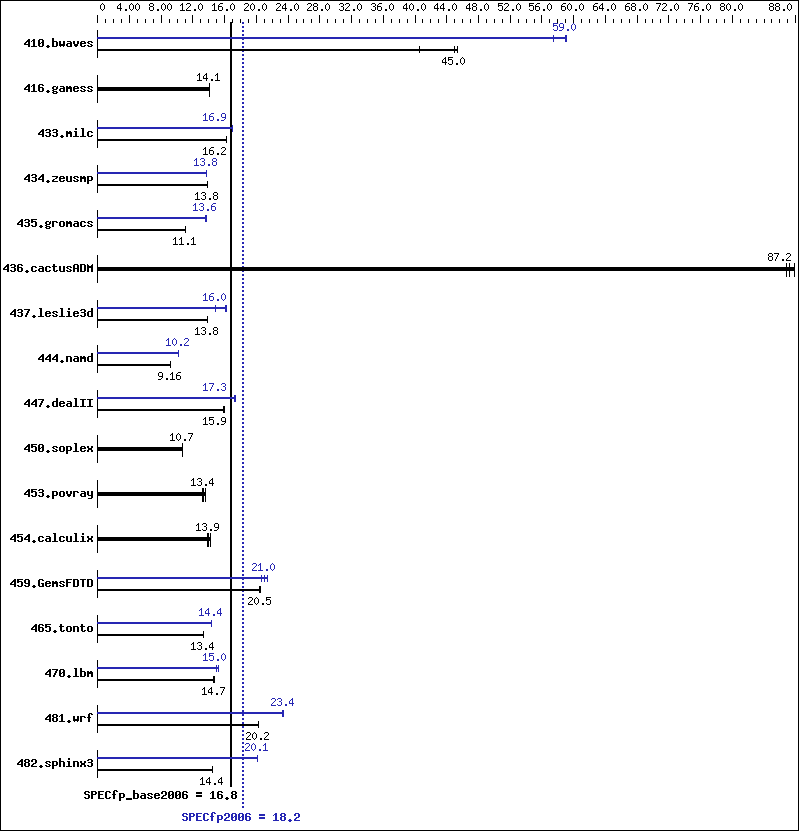

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x146 GB 10 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 336 40.5  300 45.4  302 45.0  230 59.1 236 57.5 230 59.0
416.gamess 1392 14.1  1394 14.0  1389 14.1  1392 14.1 1394 14.0 1389 14.1
433.milc 565 16.2  566 16.2  565 16.2  542 16.9 542 16.9 541 17.0
434.zeusmp 659 13.8  660 13.8  659 13.8  661 13.8 662 13.7 662 13.8
435.gromacs 645 11.1  645 11.1  648 11.0  524 13.6 521 13.7 524 13.6
436.cactusADM 138 86.9  136 87.8  137 87.2  138 86.9 136 87.8 137 87.2
437.leslie3d 679 13.8  681 13.8  679 13.9  634 14.8 578 16.3 586 16.0
444.namd 877 9.15 876 9.16 876 9.16 789 10.2 787 10.2 789 10.2
447.dealII 719 15.9  716 16.0  719 15.9  661 17.3 661 17.3 661 17.3
450.soplex 782 10.7  781 10.7  782 10.7  782 10.7 781 10.7 782 10.7
453.povray 403 13.2  393 13.5  398 13.4  403 13.2 393 13.5 398 13.4
454.calculix 594 13.9  580 14.2  593 13.9  594 13.9 580 14.2 593 13.9
459.GemsFDTD 518 20.5  519 20.5  518 20.5  495 21.5 514 20.6 505 21.0
465.tonto 735 13.4  736 13.4  737 13.3  685 14.4 686 14.4 685 14.4
470.lbm 936 14.7  938 14.6  936 14.7  919 15.0 903 15.2 918 15.0
481.wrf 552 20.2  551 20.3  552 20.2  479 23.3 478 23.4 478 23.4
482.sphinx3 1349 14.4  1347 14.5  1350 14.4  966 20.2 968 20.1 968 20.1

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 7168.

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:896   -Mconcur   -Msafeptr   -Mfprelaxed   -Mipa=jobs:8   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:896   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mconcur=noaltcode(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnovect   -alias=ansi   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fastsse   -Mloop32   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mconcur   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  basepeak = yes
434.zeusmp:  -fast   -Mloop32   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur=noaltcode   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo(pass 2)   -Mconcur(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
465.tonto:  -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mconcur   -Mfpapprox=rsqrt   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mconcur=noaltcode   -Mvect=noaltcode   -Mprefetch=distance:8   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.
