CPU2006 license: | 9001 | Test date: | Mar-2008 |
---|---|---|---|
Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
Tested by: | Itautec | Software Availability: | Jan-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5405 |
CPU Characteristics: | |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 4 GB (4 * 1 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
Disk Subsystem: | 1 x SCSI, 73GB, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for Linux version 10.1 Build 20080112 Package ID: l_cc_p_10.1.012 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run Level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.17.10.50 MicroQuill SmartHeap V8.1 |

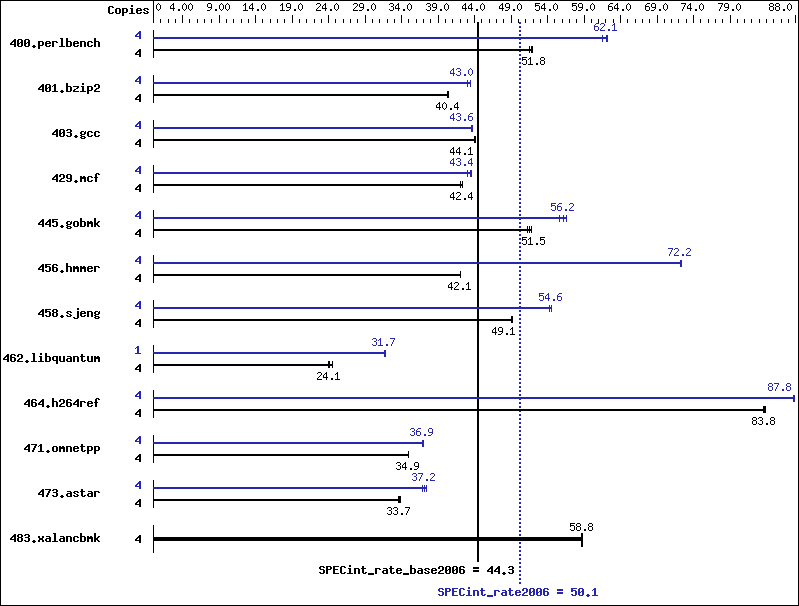

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 755 | 51.8 | 752 | 51.9 | 758 | 51.6 | 4 | 635 | 61.5 | 629 | 62.2 | 630 | 62.1 |
401.bzip2 | 4 | 958 | 40.3 | 957 | 40.4 | 955 | 40.4 | 4 | 890 | 43.4 | 897 | 43.0 | 898 | 43.0 |
403.gcc | 4 | 731 | 44.0 | 729 | 44.2 | 730 | 44.1 | 4 | 739 | 43.6 | 737 | 43.7 | 739 | 43.6 |
429.mcf | 4 | 868 | 42.0 | 860 | 42.4 | 861 | 42.4 | 4 | 838 | 43.5 | 847 | 43.0 | 841 | 43.4 |
445.gobmk | 4 | 811 | 51.7 | 818 | 51.3 | 815 | 51.5 | 4 | 755 | 55.6 | 746 | 56.2 | 741 | 56.6 |
456.hmmer | 4 | 886 | 42.1 | 888 | 42.0 | 887 | 42.1 | 4 | 517 | 72.2 | 517 | 72.2 | 516 | 72.3 |
458.sjeng | 4 | 988 | 49.0 | 985 | 49.1 | 986 | 49.1 | 4 | 892 | 54.3 | 887 | 54.6 | 887 | 54.6 |
462.libquantum | 4 | 3443 | 24.1 | 3463 | 23.9 | 3375 | 24.6 | 1 | 654 | 31.7 | 655 | 31.6 | 651 | 31.8 |
464.h264ref | 4 | 1058 | 83.6 | 1057 | 83.8 | 1056 | 83.8 | 4 | 1010 | 87.7 | 1008 | 87.8 | 1008 | 87.8 |
471.omnetpp | 4 | 715 | 35.0 | 716 | 34.9 | 717 | 34.9 | 4 | 675 | 37.0 | 678 | 36.9 | 679 | 36.8 |
473.astar | 4 | 834 | 33.7 | 831 | 33.8 | 838 | 33.5 | 4 | 751 | 37.4 | 756 | 37.2 | 761 | 36.9 |
483.xalancbmk | 4 | 469 | 58.8 | 471 | 58.7 | 470 | 58.8 | 4 | 469 | 58.8 | 471 | 58.7 | 470 | 58.8 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. '/usr/bin/taskset' used to bind benchmark copies to processors.
BIOS configuration: Hardware Prefetch Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
