SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

HITACHI

BladeSymphony BS320 es (Intel Xeon L5320)

CPU2006 license: 872 Test date: Mar-2008
Test sponsor: HITACHI Hardware Availability: Dec-2007
Tested by: HITACHI Software Availability: Nov-2007

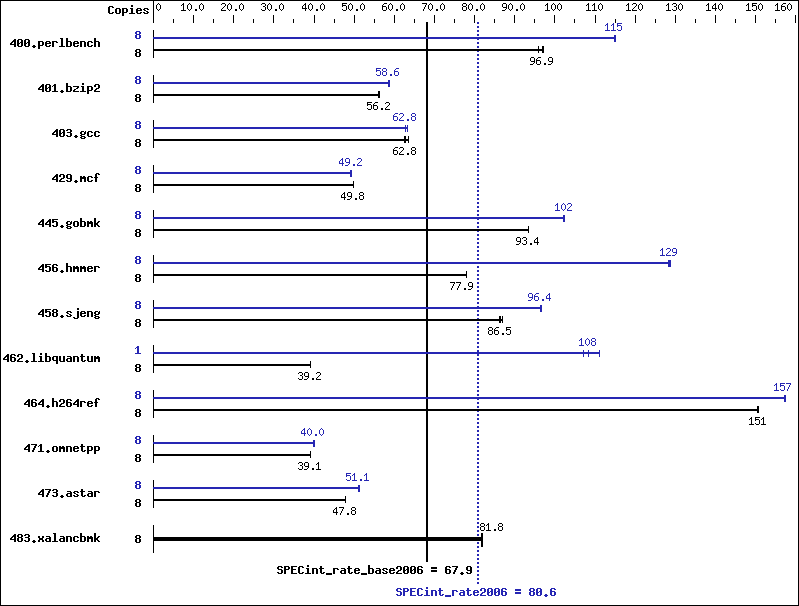

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5320
CPU Characteristics: 1066MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB(4 x 4 GB PC2-5300F CAS 5-5-5)
Disk Subsystem: 1 x 147 GB 10000 rpm SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux
Server release 5.1 (Tikanga)
Kernel 2.6.18-53.el5 on an x86_64
Compiler: Intel C++ Compiler 10.1 for Linux
Build 20070913 Package ID:
l_cc_p_10.1.008
Auto Parallel: Yes
File System: ext3
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 805 97.1 807 96.9 814 96.0 8 680 115   681 115   679 115
401.bzip2 8 1375 56.1 1374 56.2 1374 56.2 8 1317 58.6 1312 58.8 1317 58.6
403.gcc 8 1026 62.8 1012 63.6 1029 62.6 8 1025 62.8 1019 63.2 1027 62.7
429.mcf 8 1467 49.7 1466 49.8 1466 49.8 8 1482 49.2 1482 49.2 1483 49.2
445.gobmk 8 899 93.3 898 93.4 899 93.4 8 820 102   820 102   822 102
456.hmmer 8 957 78.0 958 77.9 958 77.9 8 581 128   580 129   580 129
458.sjeng 8 1113 86.9 1122 86.3 1119 86.5 8 1002 96.6 1005 96.4 1005 96.3
462.libquantum 8 4232 39.2 4230 39.2 4234 39.1 1 193 107   186 111   191 108
464.h264ref 8 1174 151   1176 151   1174 151   8 1126 157   1125 157   1125 157
471.omnetpp 8 1278 39.1 1278 39.1 1275 39.2 8 1254 39.9 1251 40.0 1250 40.0
473.astar 8 1172 47.9 1175 47.8 1176 47.8 8 1099 51.1 1098 51.1 1094 51.3
483.xalancbmk 8 673 82.0 675 81.8 675 81.8 8 673 82.0 675 81.8 675 81.8

General Notes

'/bin/taskset' used to bind processes to CPUs
OMP_NUM_THREADS set to number of cores
KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/home/bsc/smartheap/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include
456.hmmer:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/bsc/smartheap/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/bsc/smartheap/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-INT-ia32-linux-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-INT-ia32-linux-flags.20090713.01.xml.
