SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL465c G5
(2.3 GHz AMD Opteron 2356)

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

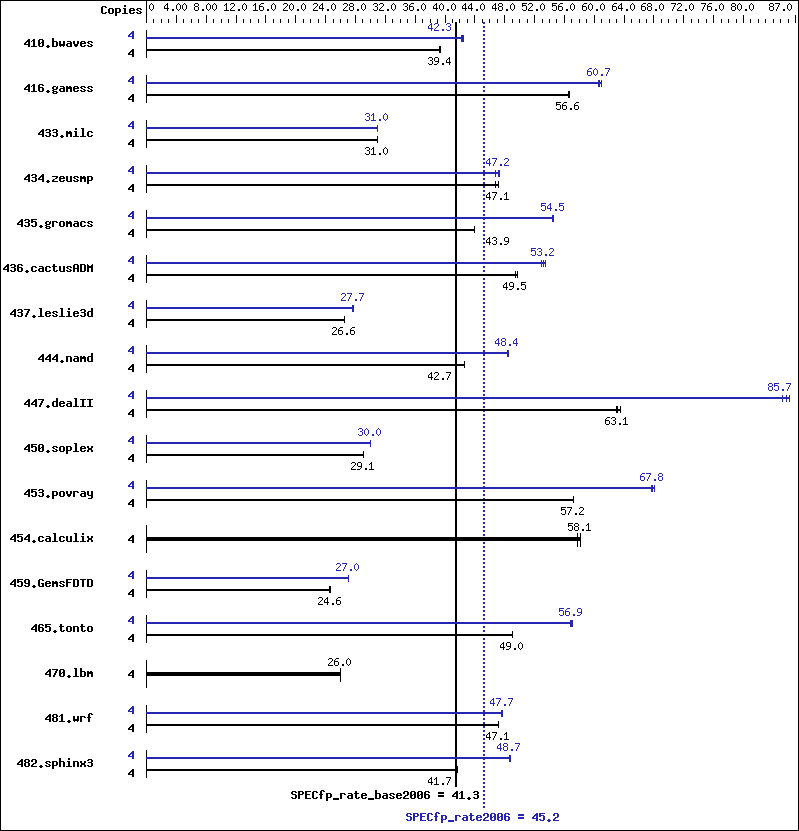

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (4x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x146 GB 10 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite, Release Pre-3.2 Beta
Auto Parallel: No
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1384 39.3 1380 39.4 1380 39.4 4 1279 42.5 1286 42.3 1286 42.3
416.gamess 4 1384 56.6 1385 56.5 1381 56.7 4 1290 60.7 1284 61.0 1294 60.5
433.milc 4 1185 31.0 1185 31.0 1185 31.0 4 1185 31.0 1185 31.0 1185 31.0
434.zeusmp 4 779 46.7 773 47.1 771 47.2 4 770 47.3 771 47.2 778 46.8
435.gromacs 4 650 43.9 650 43.9 650 43.9 4 524 54.5 523 54.6 525 54.4
436.cactusADM 4 962 49.7 966 49.5 965 49.5 4 898 53.2 904 52.9 893 53.5
437.leslie3d 4 1415 26.6 1415 26.6 1415 26.6 4 1357 27.7 1356 27.7 1360 27.6
444.namd 4 752 42.7 753 42.6 752 42.7 4 664 48.3 663 48.4 662 48.5
447.dealII 4 725 63.1 726 63.0 720 63.5 4 534 85.7 537 85.3 531 86.2
450.soplex 4 1147 29.1 1147 29.1 1149 29.0 4 1113 30.0 1112 30.0 1112 30.0
453.povray 4 372 57.2 372 57.2 372 57.2 4 314 67.7 312 68.1 314 67.8
454.calculix 4 568 58.1 572 57.7 567 58.2 4 568 58.1 572 57.7 567 58.2
459.GemsFDTD 4 1723 24.6 1727 24.6 1724 24.6 4 1568 27.1 1570 27.0 1570 27.0
465.tonto 4 803 49.0 803 49.0 802 49.1 4 692 56.9 690 57.0 693 56.8
470.lbm 4 2113 26.0 2113 26.0 2112 26.0 4 2113 26.0 2113 26.0 2112 26.0
481.wrf 4 948 47.1 948 47.1 948 47.1 4 939 47.6 938 47.7 937 47.7
482.sphinx3 4 1870 41.7 1869 41.7 1874 41.6 4 1601 48.7 1604 48.6 1598 48.8

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 3584.
 NCPUS set to number of cores
 numactl used to bind processes to CPUs

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
482.sphinx3:  pathcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=jobs:4   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  basepeak = yes
482.sphinx3:  -march=barcelona   -Ofast   -LNO:vintr=2   -CG:locs_shallow_depth=1

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1   -OPT:malloc_alg=1   -CG:load_exe=0
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -march=barcelona   -Ofast   -m3dnow   -OPT:unroll_size=256   -CG:load_exe=0
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mfpapprox=rsqrt   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off
454.calculix:  basepeak = yes
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -m3dnow   -LANG:copyinout=off   -IPA:callee_limit=5000

Peak Other Flags

C benchmarks (except as noted below):

 -w
482.sphinx3:  No flags used

C++ benchmarks:

444.namd:  -w

Fortran benchmarks:

410.bwaves:  -w
434.zeusmp:  -w

Benchmarks using both Fortran and C:

435.gromacs:  -w
454.calculix:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.
