| CPU2006 license: | 22 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Mar-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Quad Q9450 |
| CPU Characteristics: | |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1 GB PC2-6400 CL6 SDRAM) |
| Disk Subsystem: | 1 x 400 GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate, 64 bit Version |
| Compiler: | Intel C++ Compiler for applications running on Intel 64, Version 10.1, Build 20070913 Intel Visual Fortran Compiler for applications running on Intel 64, Version 10.1, Build 20070913 Microsoft Visual Studio 2005 with SP1 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | SmartHeap Library Version 8.0 (64 bit) from http://www.microquill.com/ |

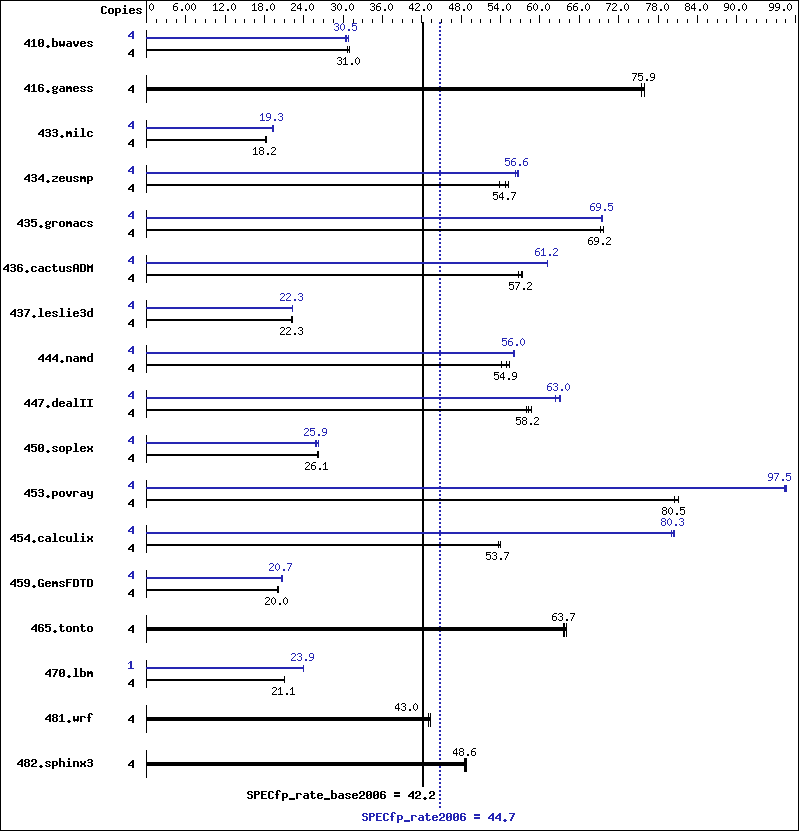

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1756 | 31.0 | 1753 | 31.0 | 1775 | 30.6 | 4 | 1764 | 30.8 | 1790 | 30.4 | 1784 | 30.5 |
| 416.gamess | 4 | 1032 | 75.9 | 1032 | 75.9 | 1038 | 75.5 | 4 | 1032 | 75.9 | 1032 | 75.9 | 1038 | 75.5 |
| 433.milc | 4 | 2015 | 18.2 | 2021 | 18.2 | 2026 | 18.1 | 4 | 1905 | 19.3 | 1908 | 19.3 | 1900 | 19.3 |
| 434.zeusmp | 4 | 660 | 55.2 | 677 | 53.8 | 665 | 54.7 | 4 | 647 | 56.3 | 642 | 56.7 | 643 | 56.6 |
| 435.gromacs | 4 | 410 | 69.7 | 413 | 69.2 | 413 | 69.2 | 4 | 411 | 69.4 | 411 | 69.6 | 411 | 69.5 |
| 436.cactusADM | 4 | 836 | 57.2 | 842 | 56.8 | 833 | 57.4 | 4 | 781 | 61.2 | 782 | 61.1 | 781 | 61.2 |
| 437.leslie3d | 4 | 1683 | 22.3 | 1700 | 22.1 | 1685 | 22.3 | 4 | 1683 | 22.3 | 1685 | 22.3 | 1686 | 22.3 |
| 444.namd | 4 | 580 | 55.3 | 593 | 54.1 | 584 | 54.9 | 4 | 572 | 56.0 | 573 | 56.0 | 572 | 56.1 |
| 447.dealII | 4 | 786 | 58.2 | 779 | 58.7 | 789 | 58.0 | 4 | 725 | 63.1 | 735 | 62.3 | 726 | 63.0 |
| 450.soplex | 4 | 1280 | 26.1 | 1272 | 26.2 | 1277 | 26.1 | 4 | 1293 | 25.8 | 1270 | 26.3 | 1286 | 25.9 |
| 453.povray | 4 | 262 | 81.1 | 264 | 80.5 | 264 | 80.5 | 4 | 218 | 97.5 | 218 | 97.6 | 219 | 97.3 |
| 454.calculix | 4 | 612 | 53.9 | 615 | 53.7 | 614 | 53.7 | 4 | 411 | 80.3 | 410 | 80.6 | 412 | 80.0 |
| 459.GemsFDTD | 4 | 2112 | 20.1 | 2123 | 20.0 | 2126 | 20.0 | 4 | 2056 | 20.6 | 2052 | 20.7 | 2054 | 20.7 |
| 465.tonto | 4 | 618 | 63.7 | 615 | 64.0 | 619 | 63.6 | 4 | 618 | 63.7 | 615 | 64.0 | 619 | 63.6 |
| 470.lbm | 4 | 2602 | 21.1 | 2605 | 21.1 | 2606 | 21.1 | 1 | 574 | 23.9 | 573 | 24.0 | 574 | 23.9 |
| 481.wrf | 4 | 1033 | 43.2 | 1039 | 43.0 | 1040 | 43.0 | 4 | 1033 | 43.2 | 1039 | 43.0 | 1040 | 43.0 |
| 482.sphinx3 | 4 | 1600 | 48.7 | 1604 | 48.6 | 1609 | 48.5 | 4 | 1600 | 48.7 | 1604 | 48.6 | 1609 | 48.5 |
Platform Notes
BIOS default settings have been used.
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com/
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -Qlowercase -assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 -TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast -F950000000 shlW64M.lib |
C++ benchmarks:
| -fast -Qcxx-features -F950000000 shlW64M.lib |
Fortran benchmarks:
| -fast -F950000000 |
Benchmarks using both Fortran and C:
| -fast -F950000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 470.lbm: | -fast -Qunroll2 -Qscalar-rep- -Qprefetch -F950000000 |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -fast -Oa -F950000000 shlW64M.lib |
| 447.dealII: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F950000000 |
| 450.soplex: | Same as 447.dealII |
| 453.povray: | Same as 447.dealII |
Fortran benchmarks:
| 410.bwaves: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | -QxT -O2 -Qprec-div- -Qunroll0 -Qscalar-rep- -F950000000 |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | -fast -Qunroll2 -Ob0 -Qprefetch -F950000000 |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F950000000 |
| 436.cactusADM: | -fast -Qunroll2 -Qprefetch -F950000000 |
| 454.calculix: | -fast -Qunroll-aggressive -F950000000 |
| 481.wrf: | basepeak = yes |
