| CPU2006 license: | 9001 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Dec-2007 |
| Tested by: | Itautec | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5410 |
| CPU Characteristics: | |
| CPU MHz: | 2330 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (6 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 1 x SCSI, 73GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Binutils 2.17.10.50 |

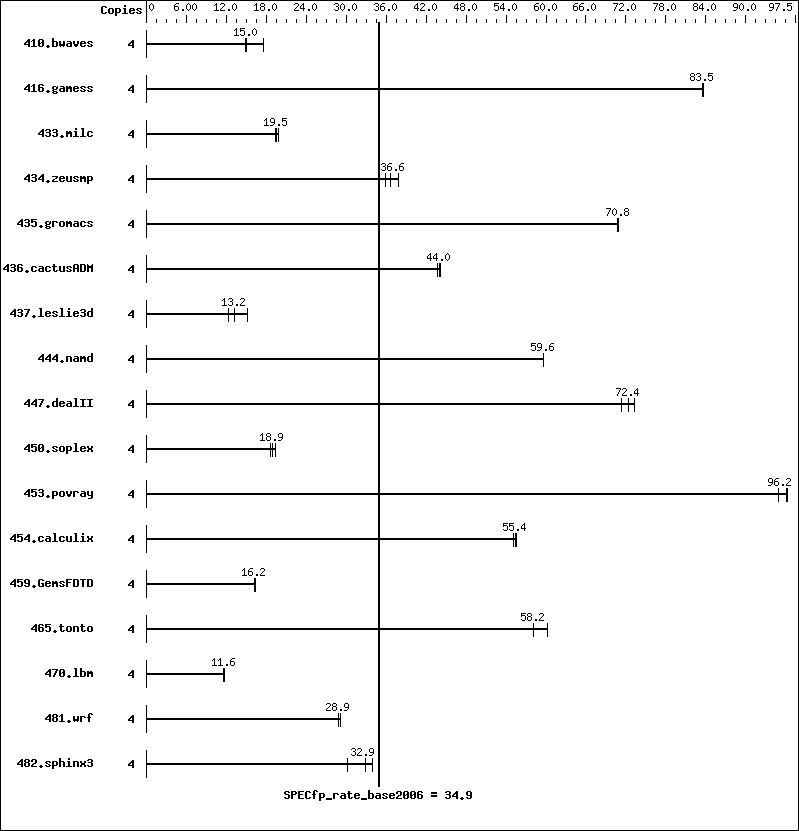

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 3082 | 17.6 | 3614 | 15.0 | 3650 | 14.9 | |||||||
| 416.gamess | 4 | 938 | 83.5 | 938 | 83.5 | 937 | 83.6 | |||||||
| 433.milc | 4 | 1846 | 19.9 | 1902 | 19.3 | 1887 | 19.5 | |||||||
| 434.zeusmp | 4 | 963 | 37.8 | 1014 | 35.9 | 995 | 36.6 | |||||||
| 435.gromacs | 4 | 403 | 70.9 | 403 | 70.8 | 403 | 70.8 | |||||||
| 436.cactusADM | 4 | 1095 | 43.7 | 1083 | 44.1 | 1087 | 44.0 | |||||||
| 437.leslie3d | 4 | 2480 | 15.2 | 3043 | 12.4 | 2851 | 13.2 | |||||||
| 444.namd | 4 | 538 | 59.6 | 538 | 59.7 | 538 | 59.6 | |||||||
| 447.dealII | 4 | 625 | 73.3 | 632 | 72.4 | 641 | 71.3 | |||||||
| 450.soplex | 4 | 1728 | 19.3 | 1798 | 18.6 | 1765 | 18.9 | |||||||
| 453.povray | 4 | 221 | 96.2 | 221 | 96.2 | 224 | 95.0 | |||||||
| 454.calculix | 4 | 599 | 55.1 | 595 | 55.4 | 594 | 55.5 | |||||||
| 459.GemsFDTD | 4 | 2596 | 16.4 | 2620 | 16.2 | 2617 | 16.2 | |||||||
| 465.tonto | 4 | 653 | 60.3 | 678 | 58.1 | 677 | 58.2 | |||||||
| 470.lbm | 4 | 4723 | 11.6 | 4722 | 11.6 | 4696 | 11.7 | |||||||
| 481.wrf | 4 | 1548 | 28.9 | 1537 | 29.1 | 1548 | 28.9 | |||||||
| 482.sphinx3 | 4 | 2581 | 30.2 | 2373 | 32.9 | 2293 | 34.0 | |||||||
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. '/usr/bin/taskset' used to bind benchmark copies to processors.
Platform Notes
BIOS configuration: Hardware Prefetch Disabled
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
