SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec MX221 (Intel Xeon X5460)

CPU2006 license: 9001 Test date: Mar-2008
Test sponsor: Itautec Hardware Availability: Dec-2007
Tested by: Itautec Software Availability: Jan-2008

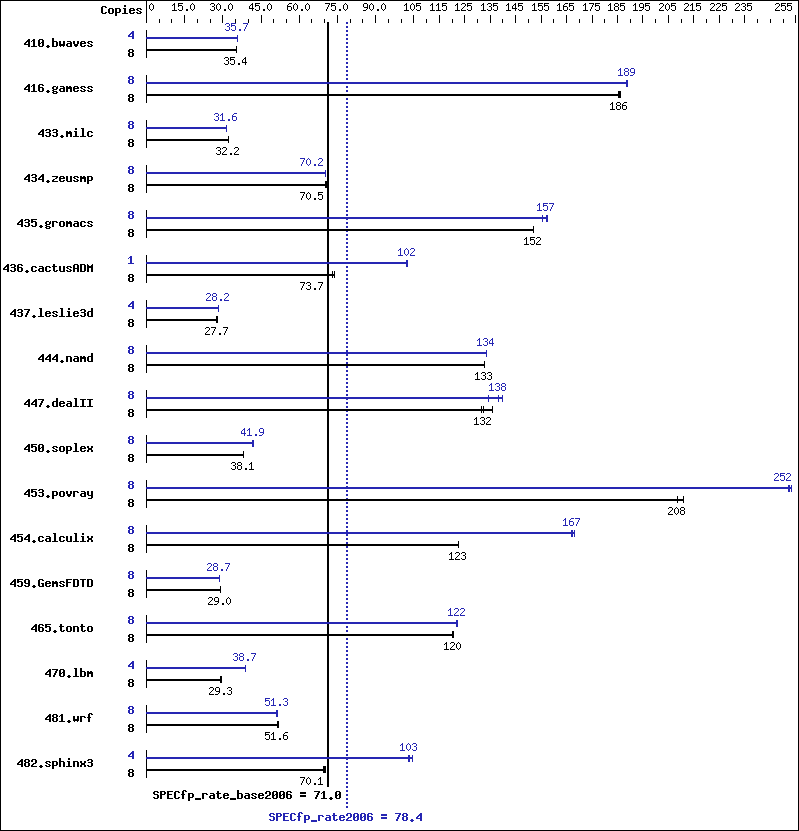

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics:
CPU MHz: 3160
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: 1 x SCSI, 73GB, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler 10.1 for Linux
Build 20080112 Package ID: l_cc_p_10.1.012,
l_fc_p_10.1.012
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.10.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3070 35.4 3071 35.4 3073 35.4 4 1524 35.7 1524 35.7 1526 35.6
416.gamess 8 844 186   842 186   843 186   8 830 189   831 188   830 189
433.milc 8 2276 32.3 2281 32.2 2284 32.1 8 2328 31.6 2324 31.6 2328 31.5
434.zeusmp 8 1037 70.2 1032 70.6 1033 70.5 8 1037 70.2 1037 70.2 1036 70.3
435.gromacs 8 376 152   376 152   376 152   8 367 155   364 157   363 158
436.cactusADM 8 1296 73.7 1306 73.2 1298 73.7 1 117 102   117 103   117 102
437.leslie3d 8 2719 27.7 2711 27.7 2705 27.8 4 1336 28.1 1333 28.2 1330 28.3
444.namd 8 483 133   483 133   483 133   8 480 134   480 134   480 134
447.dealII 8 692 132   674 136   696 131   8 655 140   682 134   661 138
450.soplex 8 1750 38.1 1752 38.1 1751 38.1 8 1595 41.8 1592 41.9 1590 42.0
453.povray 8 202 211   204 208   204 208   8 169 252   169 252   168 253
454.calculix 8 539 122   538 123   538 123   8 395 167   395 167   393 168
459.GemsFDTD 8 2915 29.1 2932 29.0 2930 29.0 8 2959 28.7 2952 28.8 2954 28.7
465.tonto 8 652 121   654 120   654 120   8 644 122   646 122   644 122
470.lbm 8 3753 29.3 3751 29.3 3763 29.2 4 1418 38.7 1417 38.8 1419 38.7
481.wrf 8 1730 51.7 1733 51.6 1733 51.6 8 1742 51.3 1744 51.2 1739 51.4
482.sphinx3 8 2241 69.6 2224 70.1 2220 70.2 4 747 104   756 103   756 103

Compiler Invocation Notes

   OMP_NUM_THREADS set to number of cores
   KMP_STACK_SIZE set to 64M
   KMP_AFFINITY set to physical,0

Operating System Notes

  'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
  '/usr/bin/taskset' used to bind benchmark copies to processors.

Platform Notes

  BIOS configuration:
  Hardware Prefetch Disabled

General Notes

 This result was measured on the Servidor Itautec MX201.
 The Servidor Itautec MX221 and the Servidor Itautec MX201 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.012/bin/icc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.012/bin/icpc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.012/bin/ifort   -L/opt/intel/fc/10.1.012/lib   -I/opt/intel/fc/10.1.012/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 16:43:01 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 April 2008.
