| CPU2006 license: | 22 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5430 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
| Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | binutils-2.17.50.0.5-0.1.x86_64 |

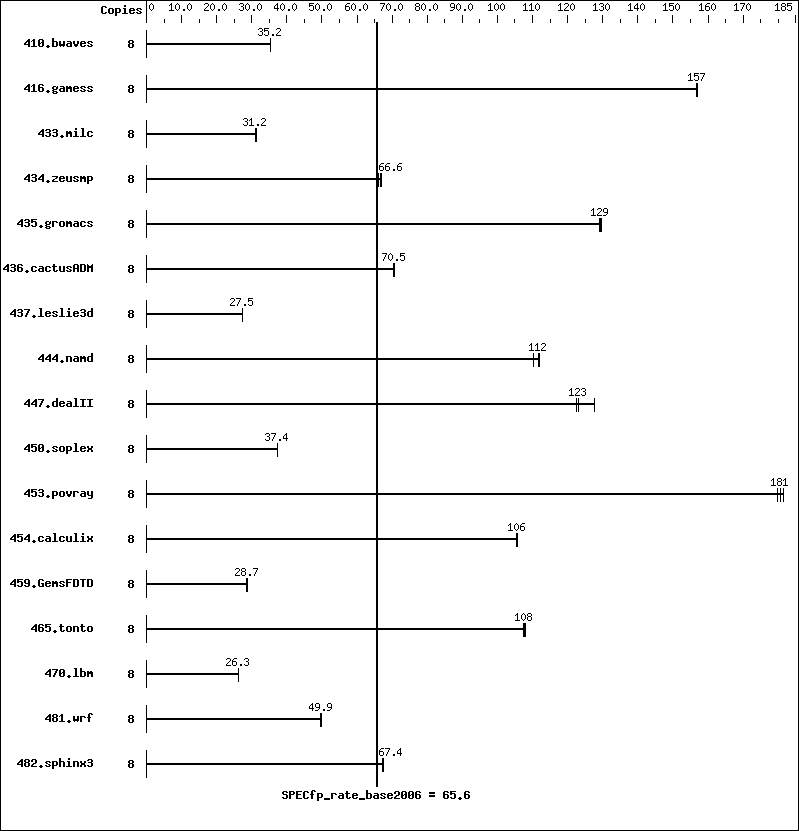

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3084 | 35.3 | 3085 | 35.2 | 3087 | 35.2 | |||||||
| 416.gamess | 8 | 998 | 157 | 997 | 157 | 999 | 157 | |||||||
| 433.milc | 8 | 2348 | 31.3 | 2357 | 31.2 | 2354 | 31.2 | |||||||
| 434.zeusmp | 8 | 1089 | 66.8 | 1093 | 66.6 | 1100 | 66.2 | |||||||
| 435.gromacs | 8 | 442 | 129 | 440 | 130 | 442 | 129 | |||||||
| 436.cactusADM | 8 | 1358 | 70.4 | 1355 | 70.5 | 1354 | 70.6 | |||||||
| 437.leslie3d | 8 | 2740 | 27.4 | 2736 | 27.5 | 2738 | 27.5 | |||||||
| 444.namd | 8 | 574 | 112 | 575 | 112 | 582 | 110 | |||||||
| 447.dealII | 8 | 717 | 128 | 747 | 123 | 743 | 123 | |||||||
| 450.soplex | 8 | 1784 | 37.4 | 1789 | 37.3 | 1784 | 37.4 | |||||||
| 453.povray | 8 | 236 | 181 | 237 | 180 | 235 | 181 | |||||||
| 454.calculix | 8 | 625 | 106 | 624 | 106 | 624 | 106 | |||||||
| 459.GemsFDTD | 8 | 2962 | 28.7 | 2940 | 28.9 | 2964 | 28.6 | |||||||
| 465.tonto | 8 | 729 | 108 | 731 | 108 | 732 | 107 | |||||||
| 470.lbm | 8 | 4177 | 26.3 | 4176 | 26.3 | 4175 | 26.3 | |||||||
| 481.wrf | 8 | 1789 | 50.0 | 1802 | 49.6 | 1790 | 49.9 | |||||||
| 482.sphinx3 | 8 | 2312 | 67.4 | 2305 | 67.6 | 2315 | 67.4 | |||||||
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
