| CPU2006 license: | 9006 | Test date: | Mar-2008 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Feb-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 2.50 GHz, 2x6 MB L2 shared, 1333 MHz bus |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

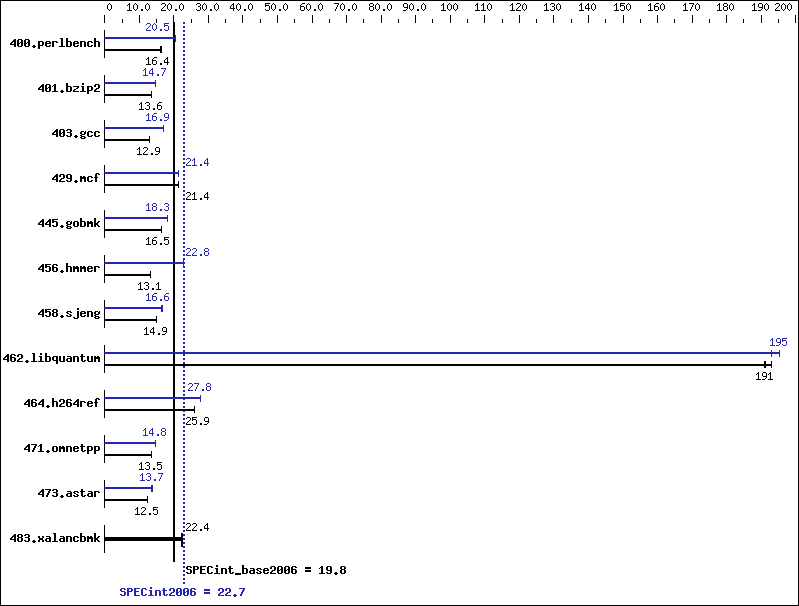

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 595 | 16.4 | 602 | 16.2 | 595 | 16.4 | 477 | 20.5 | 476 | 20.5 | 475 | 20.6 |
| 401.bzip2 | 707 | 13.6 | 708 | 13.6 | 712 | 13.6 | 654 | 14.8 | 655 | 14.7 | 656 | 14.7 |
| 403.gcc | 623 | 12.9 | 622 | 12.9 | 622 | 12.9 | 476 | 16.9 | 474 | 17.0 | 476 | 16.9 |
| 429.mcf | 427 | 21.4 | 425 | 21.4 | 427 | 21.3 | 425 | 21.4 | 426 | 21.4 | 428 | 21.3 |
| 445.gobmk | 637 | 16.5 | 636 | 16.5 | 638 | 16.4 | 575 | 18.3 | 574 | 18.3 | 573 | 18.3 |
| 456.hmmer | 711 | 13.1 | 712 | 13.1 | 711 | 13.1 | 409 | 22.8 | 409 | 22.8 | 409 | 22.8 |
| 458.sjeng | 811 | 14.9 | 815 | 14.9 | 815 | 14.8 | 731 | 16.6 | 730 | 16.6 | 729 | 16.6 |
| 462.libquantum | 107 | 193 | 108 | 191 | 109 | 191 | 107 | 193 | 106 | 195 | 106 | 195 |
| 464.h264ref | 855 | 25.9 | 856 | 25.8 | 854 | 25.9 | 795 | 27.8 | 795 | 27.8 | 797 | 27.8 |
| 471.omnetpp | 461 | 13.6 | 462 | 13.5 | 463 | 13.5 | 423 | 14.8 | 423 | 14.8 | 425 | 14.7 |
| 473.astar | 563 | 12.5 | 564 | 12.5 | 562 | 12.5 | 512 | 13.7 | 515 | 13.6 | 510 | 13.8 |
| 483.xalancbmk | 308 | 22.4 | 308 | 22.4 | 309 | 22.3 | 308 | 22.4 | 308 | 22.4 | 309 | 22.3 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores
Platform Notes
Bios settings: Intel SpeedStep Technology: Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode The NEC Express5800/120Lj(Intel Xeon E5420) and the Bull NovaScale T860 E1(Intel Xeon E5420,2.50GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/120Lj(Intel Xeon E5420) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
