| CPU2006 license: | 001176 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5205 |
| CPU Characteristics: | Dual Core, 1.86GHz |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | Western DigitalD WD1600YS-01SHB1 160GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, kernel 2.6.16.46-0.12-default |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

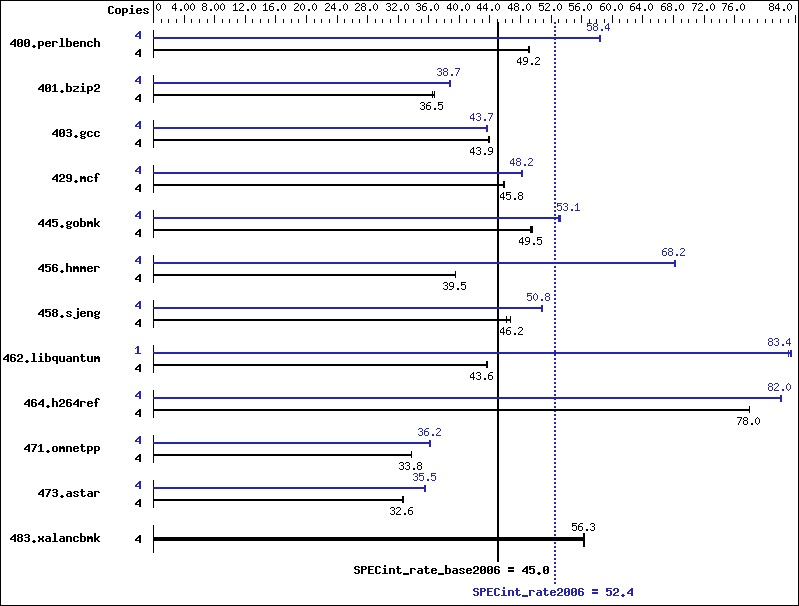

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 798 | 49.0 | 795 | 49.2 | 795 | 49.2 | 4 | 669 | 58.4 | 668 | 58.5 | 669 | 58.4 |
| 401.bzip2 | 4 | 1051 | 36.7 | 1057 | 36.5 | 1057 | 36.5 | 4 | 993 | 38.9 | 998 | 38.7 | 998 | 38.7 |
| 403.gcc | 4 | 735 | 43.8 | 733 | 43.9 | 732 | 44.0 | 4 | 738 | 43.7 | 737 | 43.7 | 739 | 43.6 |
| 429.mcf | 4 | 794 | 46.0 | 797 | 45.8 | 797 | 45.8 | 4 | 757 | 48.2 | 757 | 48.2 | 758 | 48.1 |
| 445.gobmk | 4 | 847 | 49.5 | 848 | 49.5 | 851 | 49.3 | 4 | 788 | 53.2 | 790 | 53.1 | 791 | 53.0 |
| 456.hmmer | 4 | 945 | 39.5 | 946 | 39.5 | 945 | 39.5 | 4 | 547 | 68.2 | 548 | 68.2 | 548 | 68.1 |
| 458.sjeng | 4 | 1037 | 46.7 | 1047 | 46.2 | 1048 | 46.2 | 4 | 951 | 50.9 | 954 | 50.7 | 953 | 50.8 |
| 462.libquantum | 4 | 1902 | 43.6 | 1903 | 43.6 | 1895 | 43.7 | 1 | 249 | 83.4 | 250 | 83.0 | 248 | 83.4 |
| 464.h264ref | 4 | 1135 | 78.0 | 1136 | 78.0 | 1136 | 77.9 | 4 | 1078 | 82.1 | 1079 | 82.0 | 1079 | 82.0 |
| 471.omnetpp | 4 | 739 | 33.8 | 740 | 33.8 | 740 | 33.8 | 4 | 691 | 36.2 | 693 | 36.1 | 691 | 36.2 |
| 473.astar | 4 | 862 | 32.6 | 862 | 32.6 | 860 | 32.7 | 4 | 789 | 35.6 | 791 | 35.5 | 791 | 35.5 |
| 483.xalancbmk | 4 | 490 | 56.3 | 490 | 56.3 | 490 | 56.3 | 4 | 490 | 56.3 | 490 | 56.3 | 490 | 56.3 |
General Notes
Tested systems can be used with CSE-808T-980 case, To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DBT-INF.cfm The system bus runs at 1066 MHz The "taskset" command was used to bind benchmark copies to cores except for 462.libquantum peak
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
