SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M8000

SPECfp®2006 = 24.6

CPU2006 license: 6 Test date: Feb-2008
Test sponsor: Fujitsu Limited Hardware Availability: Apr-2007
Tested by: Sun Microsystems Software Availability: May-2008

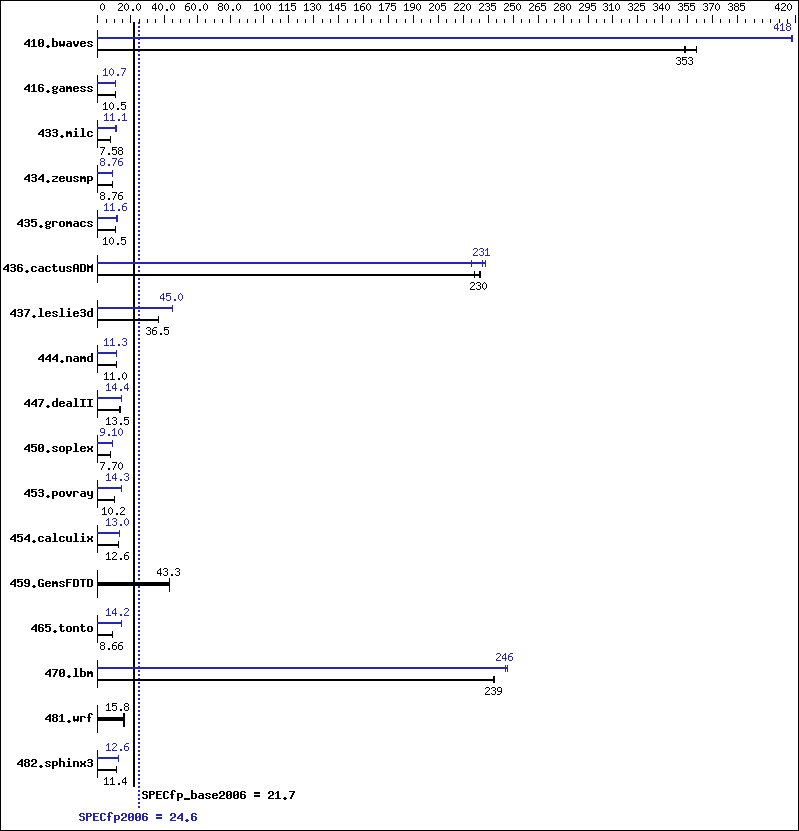

Benchmark results graph
Hardware
CPU Name: SPARC64 VI
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 128 KB I + 128 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (128 x 2 GB DIMMs)
Disk Subsystem: 408 GB SVM RAID 1+0 on 12 x 73 GB
10,000 RPM Fujitsu MAY2073RC SAS
Other Hardware: None
Software
Operating System: Solaris 10 5/08 s10s_u5wos_08
Compiler: Sun Studio 12, Patch 124867-02
(see patch info below)
Auto Parallel: Yes
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 38.5 353    37.7 360    38.5 353    32.5 418    32.5 418    32.5 418
416.gamess 1874   10.4  1873   10.5  1872   10.5  1833   10.7  1833   10.7  1833   10.7
433.milc 1205   7.62 1215   7.56 1211   7.58 826   11.1  826   11.1  836   11.0
434.zeusmp 1039   8.76 1039   8.76 1039   8.76 1039   8.76 1039   8.76 1040   8.75
435.gromacs 684   10.4  683   10.5  683   10.5  619   11.5  615   11.6  616   11.6
436.cactusADM 52.7 227    51.9 230    52.1 230    53.1 225    51.2 233    51.7 231
437.leslie3d 257   36.5  256   36.7  258   36.5  210   44.8  208   45.2  209   45.0
444.namd 729   11.0  729   11.0  730   11.0  710   11.3  710   11.3  710   11.3
447.dealII 845   13.5  844   13.5  875   13.1  793   14.4  798   14.3  793   14.4
450.soplex 1084   7.70 1083   7.70 1084   7.69 910   9.17 917   9.09 916   9.10
453.povray 523   10.2  519   10.3  521   10.2  370   14.4  372   14.3  373   14.3
454.calculix 653   12.6  654   12.6  654   12.6  634   13.0  633   13.0  632   13.1
459.GemsFDTD 246   43.1  245   43.3  245   43.3  246   43.1  245   43.3  245   43.3
465.tonto 1134   8.68 1138   8.64 1136   8.66 693   14.2  693   14.2  696   14.1
470.lbm 57.7 238    57.5 239    57.5 239    56.0 245    55.8 246    55.9 246
481.wrf 707   15.8  708   15.8  705   15.8  707   15.8  708   15.8  705   15.8
482.sphinx3 1704   11.4  1700   11.5  1703   11.4  1539   12.7  1541   12.6  1565   12.5

Compiler Invocation Notes


 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-02, 124861-04,
 124863-02, and 127000-02

Operating System Notes


Stack size set to unlimited via "ulimit -s unlimited"

Program threads were bound to processors with:
    SUNW_MP_PROCBIND="1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37
                      39 41 43 45 47 49 51 53 55 57 59 61 63"

Behavior of parallel threads was set with:
    SUNW_MP_THR_IDLE=SPIN
SPIN specifies that an idle thread should spin while waiting at barrier
or waiting for new parallel regions to work on.

The maximum number of threads a program can create was set with:
    OMP_NUM_THREADS=32


 System Tunables:
 (/etc/system parameters)
    maxphys=4194304
       Defines the maximum size of I/O requests, in bytes.
    maxpgio=1024
       Defines the maximum number of page I/O requests that can
       be queued by the paging system.
    tune_t_fsflushr=4
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=60
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache

Platform Notes


 This result is measured on a Sun SPARC Enterprise
 M8000 Server.  Note that the Sun SPARC Enterprise
 M8000 and Fujitsu SPARC Enterprise M8000 are electrically
 equivalent.

 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=2   -xalias_level=compatible

Fortran benchmarks:

 -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=2

Base Other Flags

C benchmarks:

 -xjobs=64

C++ benchmarks:

 -xjobs=64

Fortran benchmarks:

 -xjobs=64

Benchmarks using both Fortran and C:

 -xjobs=64

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xalias_level=strong   -xprefetch_level=2
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xarch=v8plusb   -xprefetch_level=2   -xautopar   -xreduction
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xalias_level=std

C++ benchmarks:

444.namd:  -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=compatible   -xdepend
447.dealII:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xalias_level=compatible   -xdepend   -xrestrict   -xprefetch=latx:4.5
450.soplex:  -library=stlport4   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xdepend   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3
453.povray:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=compatible   -xdepend   -xrestrict   -xprefetch=latx:4.5

Fortran benchmarks:

410.bwaves:  -fast   -xipo=2   -fma=fused   -xpagesize=512K   -xprefetch=latx:2   -xprefetch_level=2   -xautopar   -xreduction
416.gamess:  -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xprefetch_level=2
434.zeusmp:  -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xautopar   -xreduction
437.leslie3d:  -fast   -xipo=2   -xautopar   -xreduction   -fma=fused   -xprefetch_level=2   -xprefetch=latx:8.0
459.GemsFDTD:  basepeak = yes
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xarch=v8plusa   -xprefetch=latx:12   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xalias_level=std
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xpagesize=4M   -xprefetch=latx:2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xautopar   -xreduction
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -fma=fused   -xalias_level=std
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=64

C++ benchmarks:

 -xjobs=64

Fortran benchmarks:

 -xjobs=64

Benchmarks using both Fortran and C:

 -xjobs=64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 16:39:59 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 March 2008.
