SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel Desktop Board DQ35JO (Intel Core 2 Duo
E8200)

CPU2006 license: 13 Test date: Feb-2008
Test sponsor: Intel Corporation Hardware Availability: Feb-2008
Tested by: Intel Corporation Software Availability: Nov-2007

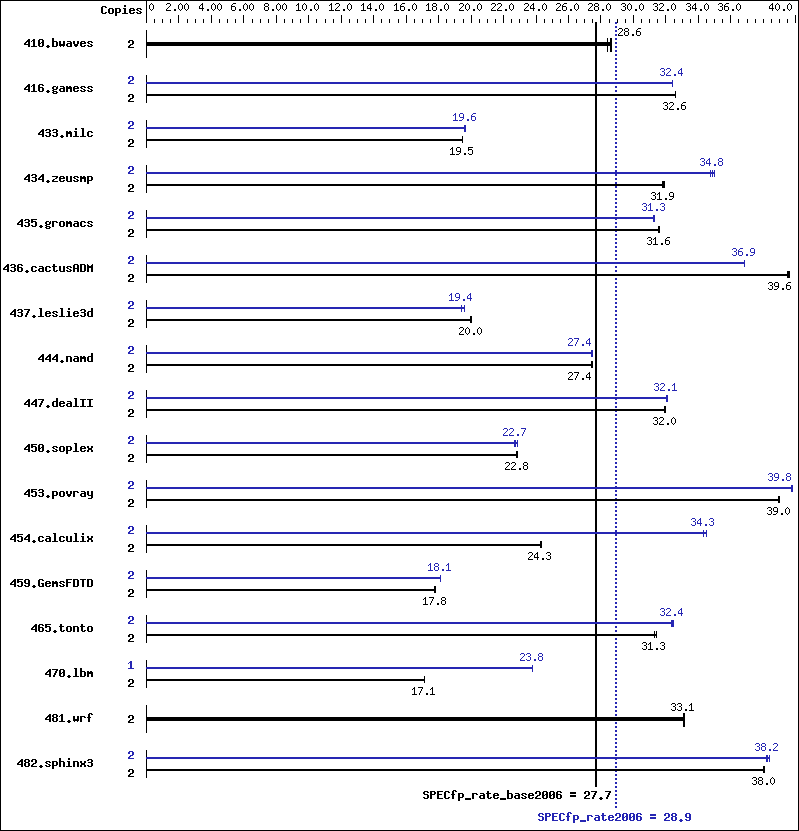

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8200
CPU Characteristics: 2.66 GHz, 1333 FSB
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB Micron DDR2-800 CL5)
Disk Subsystem: Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate (64-bit)
Compiler: Intel C++ Compiler for IA32 version 10.1
Build 20070913 Package ID: w_cc_p_10.1.011
Intel Fortran Compiler for IA32 version 10.1
Build 20070913 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 951 28.6 949 28.6 956 28.4 2 951 28.6 949 28.6 956 28.4
416.gamess 2 1201 32.6 1201 32.6 1201 32.6 2 1209 32.4 1209 32.4 1209 32.4
433.milc 2 943 19.5 943 19.5 942 19.5 2 935 19.6 936 19.6 934 19.6
434.zeusmp 2 571 31.9 571 31.9 573 31.8 2 522 34.8 520 35.0 524 34.7
435.gromacs 2 452 31.6 452 31.6 452 31.6 2 457 31.3 457 31.3 456 31.3
436.cactusADM 2 603 39.6 604 39.6 605 39.5 2 648 36.9 648 36.9 649 36.8
437.leslie3d 2 940 20.0 939 20.0 941 20.0 2 969 19.4 969 19.4 959 19.6
444.namd 2 586 27.4 584 27.5 585 27.4 2 585 27.4 585 27.4 584 27.5
447.dealII 2 716 32.0 716 32.0 716 31.9 2 715 32.0 714 32.1 713 32.1
450.soplex 2 731 22.8 730 22.8 731 22.8 2 734 22.7 736 22.7 729 22.9
453.povray 2 273 39.0 273 38.9 273 39.0 2 268 39.8 268 39.7 267 39.8
454.calculix 2 679 24.3 678 24.3 679 24.3 2 481 34.3 478 34.5 481 34.3
459.GemsFDTD 2 1194 17.8 1193 17.8 1193 17.8 2 1173 18.1 1170 18.1 1171 18.1
465.tonto 2 629 31.3 628 31.3 626 31.4 2 608 32.3 607 32.4 606 32.5
470.lbm 2 1606 17.1 1607 17.1 1607 17.1 1 577 23.8 577 23.8 578 23.8
481.wrf 2 675 33.1 674 33.1 675 33.1 2 675 33.1 674 33.1 675 33.1
482.sphinx3 2 1024 38.1 1026 38.0 1025 38.0 2 1019 38.2 1015 38.4 1021 38.2

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 03/2008:
 http://www.intel.com/products/motherboard/DQ35JO/index.htm
 The system bus runs at 1333 MHz
 System was configured with Asus EN8800GTX discrete graphics card
 Binaries were built on Windows Vista Ultimate (32-bit)
 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
 The start command with the /affinity switch was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F1000000000

C++ benchmarks:

 -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000

Benchmarks using both Fortran and C:

 -fast   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc8   -Qc99

C++ benchmarks:

 icl -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc8   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -Qunroll2   -Oa   /F1000000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000
482.sphinx3:  -fast   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -fast   -Oa   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -fast   -Qunroll2   -Qprefetch   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -fast   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -fast   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000
437.leslie3d:  -fast   -Qprefetch   /F1000000000
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   /F1000000000
465.tonto:  -fast   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Oa   -Qprefetch   /F1000000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   /F1000000000
454.calculix:  -fast   -Qunroll-aggressive   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-win32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-win32-flags.xml.
