| CPU2006 license: | 13 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Quad Q9450 |
| CPU Characteristics: | 2.66 GHz, 1333 FSB |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB Micron DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

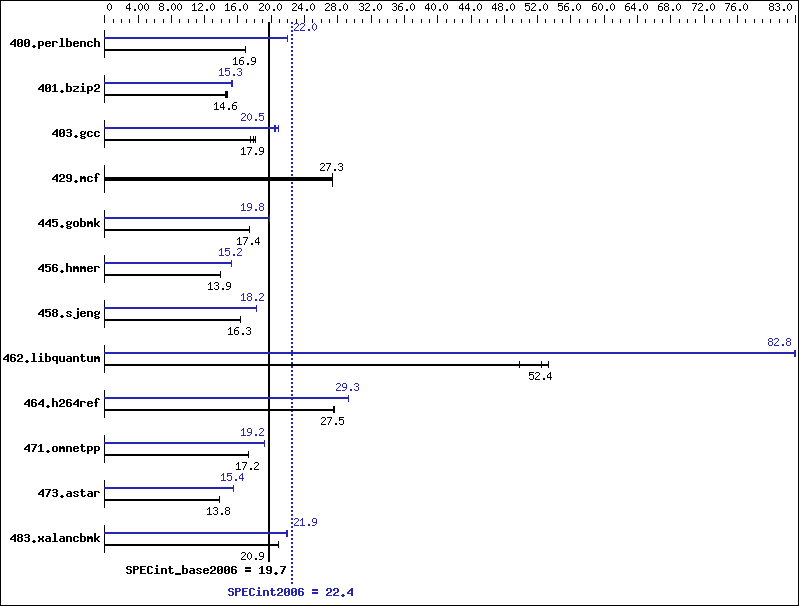

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 578 | 16.9 | 578 | 16.9 | 578 | 16.9 | 445 | 21.9 | 445 | 22.0 | 445 | 22.0 |
| 401.bzip2 | 660 | 14.6 | 663 | 14.6 | 656 | 14.7 | 633 | 15.2 | 633 | 15.3 | 631 | 15.3 |
| 403.gcc | 445 | 18.1 | 450 | 17.9 | 458 | 17.6 | 394 | 20.4 | 392 | 20.5 | 386 | 20.8 |
| 429.mcf | 334 | 27.3 | 334 | 27.3 | 334 | 27.3 | 334 | 27.3 | 334 | 27.3 | 334 | 27.3 |
| 445.gobmk | 604 | 17.4 | 604 | 17.4 | 604 | 17.4 | 529 | 19.8 | 529 | 19.8 | 529 | 19.8 |
| 456.hmmer | 669 | 13.9 | 669 | 13.9 | 669 | 14.0 | 614 | 15.2 | 614 | 15.2 | 614 | 15.2 |
| 458.sjeng | 741 | 16.3 | 741 | 16.3 | 741 | 16.3 | 663 | 18.2 | 663 | 18.2 | 663 | 18.2 |
| 462.libquantum | 395 | 52.4 | 389 | 53.3 | 416 | 49.8 | 250 | 82.8 | 250 | 82.8 | 250 | 82.9 |
| 464.h264ref | 804 | 27.5 | 804 | 27.5 | 803 | 27.6 | 756 | 29.3 | 755 | 29.3 | 755 | 29.3 |
| 471.omnetpp | 363 | 17.2 | 363 | 17.2 | 363 | 17.2 | 326 | 19.2 | 326 | 19.2 | 326 | 19.2 |
| 473.astar | 510 | 13.8 | 510 | 13.8 | 509 | 13.8 | 455 | 15.4 | 455 | 15.4 | 455 | 15.4 |
| 483.xalancbmk | 330 | 20.9 | 330 | 20.9 | 330 | 20.9 | 316 | 21.9 | 315 | 21.9 | 315 | 21.9 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 03/2008: http://www.intel.com/products/motherboard/DQ35JO/index.htm The system bus runs at 1333 MHz System was configured with Asus EN8800GTX discrete graphics card Binaries were built on Windows Vista Ultimate (32-bit) The following VS 2005 SP1 updates were applied: KB926601 and KB932232
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 libguide40.lib |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch -Qparallel -Qpar-runtime-control /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qprefetch /F512000000 libguide40.lib |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 libguide40.lib |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias -Qopt-multi-version-aggressive /F512000000 libguide40.lib |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 libguide40.lib |
| 462.libquantum: | -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always -Qparallel -Qpar-runtime-control /F512000000 libguide40.lib |
| 464.h264ref: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 libguide40.lib |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=block -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=routine -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib libguide40.lib -link /FORCE:MULTIPLE |
