| CPU2006 license: | 9006 | Test date: | Feb-2008 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5205 |
| CPU Characteristics: | 1.86 GHz, 6 MB L2, 1066 MHz bus |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

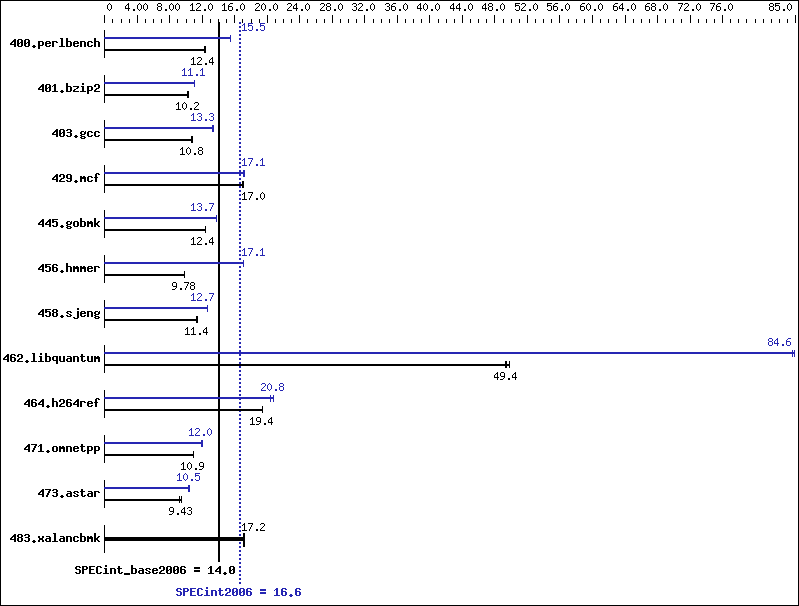

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 787 | 12.4 | 787 | 12.4 | 795 | 12.3 | 629 | 15.5 | 632 | 15.5 | 632 | 15.5 |
| 401.bzip2 | 947 | 10.2 | 941 | 10.3 | 942 | 10.2 | 871 | 11.1 | 874 | 11.0 | 872 | 11.1 |
| 403.gcc | 751 | 10.7 | 748 | 10.8 | 747 | 10.8 | 604 | 13.3 | 608 | 13.2 | 605 | 13.3 |
| 429.mcf | 538 | 17.0 | 537 | 17.0 | 535 | 17.0 | 533 | 17.1 | 533 | 17.1 | 531 | 17.2 |
| 445.gobmk | 847 | 12.4 | 848 | 12.4 | 847 | 12.4 | 763 | 13.7 | 761 | 13.8 | 763 | 13.7 |
| 456.hmmer | 954 | 9.78 | 952 | 9.80 | 954 | 9.78 | 547 | 17.1 | 547 | 17.1 | 546 | 17.1 |
| 458.sjeng | 1071 | 11.3 | 1066 | 11.4 | 1063 | 11.4 | 954 | 12.7 | 953 | 12.7 | 955 | 12.7 |
| 462.libquantum | 419 | 49.4 | 420 | 49.3 | 416 | 49.8 | 245 | 84.6 | 244 | 84.8 | 245 | 84.6 |
| 464.h264ref | 1139 | 19.4 | 1141 | 19.4 | 1139 | 19.4 | 1084 | 20.4 | 1064 | 20.8 | 1064 | 20.8 |
| 471.omnetpp | 574 | 10.9 | 572 | 10.9 | 571 | 10.9 | 523 | 12.0 | 522 | 12.0 | 524 | 11.9 |
| 473.astar | 759 | 9.25 | 741 | 9.47 | 745 | 9.43 | 681 | 10.3 | 672 | 10.5 | 672 | 10.5 |
| 483.xalancbmk | 402 | 17.2 | 402 | 17.2 | 403 | 17.1 | 402 | 17.2 | 402 | 17.2 | 403 | 17.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores
Platform Notes
Bios settings: Intel SpeedStep Technology: Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode The NEC Express5800/120Rh-1(Intel Xeon Processor E5205), the NEC Express5800/120Rj-2(Intel Xeon Processor E5205), the Bull NovaScale R440 E1 (Intel Xeon E5205,1.86GHz) and the Bull NovaScale R460 E1 (Intel Xeon E5205,1.86GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/120Rj-2(Intel Xeon Processor E5205) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
