SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade T6320

CPU2006 license: 6 Test date: Feb-2008
Test sponsor: Sun Microsystems Hardware Availability: Feb-2008
Tested by: Sun Microsystems Software Availability: Feb-2008

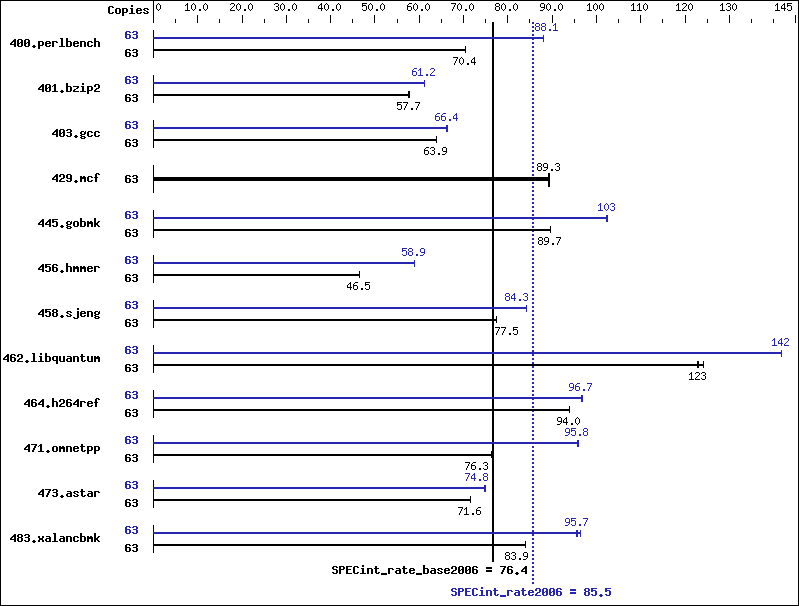

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2
CPU Characteristics:
CPU MHz: 1417
FPU: Integrated
CPU(s) enabled: 8 cores, 1 chip, 8 cores/chip, 8 threads/core
CPU(s) orderable: 1 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 64 GB (16 x 4 GB)
Disk Subsystem: 330 GB Solaris Volume Manager
RAID 0, interlace 384 KB, on
3 x SUN146G 10K RPM SAS disks;
ufs fragment size 8192 bytes
Other Hardware: None
Software
Operating System: Solaris 10 8/07 + patches (see notes)
Compiler: Sun Studio 12 (see patch information below)
gccfss V4.2.0 (see additional detail below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 63 8748 70.4 8729 70.5 8744 70.4 63 6996 88.0 6990 88.1 6988 88.1
401.bzip2 63 10534 57.7 10507 57.9 10542 57.7 63 9934 61.2 9922 61.3 9935 61.2
403.gcc 63 7938 63.9 7941 63.9 7946 63.8 63 7639 66.4 7670 66.1 7642 66.4
429.mcf 63 6432 89.3 6436 89.3 6434 89.3 63 6432 89.3 6436 89.3 6434 89.3
445.gobmk 63 7373 89.6 7372 89.7 7372 89.7 63 6442 103   6444 103   6456 102
456.hmmer 63 12643 46.5 12641 46.5 12641 46.5 63 9974 58.9 9972 58.9 9977 58.9
458.sjeng 63 9836 77.5 9835 77.5 9836 77.5 63 9043 84.3 9044 84.3 9043 84.3
462.libquantum 63 10620 123   10611 123   10509 124   63 9203 142   9200 142   9203 142
464.h264ref 63 14839 94.0 14838 94.0 14842 93.9 63 14413 96.7 14410 96.7 14414 96.7
471.omnetpp 63 5157 76.3 5163 76.3 5160 76.3 63 4109 95.8 4112 95.8 4107 95.9
473.astar 63 6174 71.6 6175 71.6 6179 71.6 63 5917 74.7 5916 74.8 5906 74.9
483.xalancbmk 63 5178 83.9 5181 83.9 5170 84.1 63 4543 95.7 4511 96.4 4547 95.6

Compiler Invocation Notes


 Sun Studio compiler patches are available at
 http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
 The tested configuration included patch 124867-02, 124861-04, 124863-01

 Peak also uses "GCC for SPARC Systems", which combines gcc
 with the Sun Code Generator for SPARC systems.  It is invoked
 as "gcc", and accepts source code compatible with GCC 4.2.
 For more information, including support, see
      http://cooltools.sunsource.net/gcc/

Operating System Notes


 Processes were bound to cores using "submit" and "pbind".
 A processor set was created using
   psrset -c 1-63
 and the runspec process was placed into the set using
   psrset -e 1

 ulimit -s 131072 was used to allow the stack to grow
 up to 131072 KB (aka 128 MB).  Note that saying "131072"
 is preferable to "unlimited", because there is a tradeoff
 between space for the stack vs. space for the heap.

 The Sun Blade T6320 is supported by Solaris 10 8/07
 plus a factory-installed set of patches.  As tested, the
 system used a 15 January 2008 pre-release build of the
 patch set.

 /etc/system parameters
    autoup = 600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr = 10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Peak Compiler Invocation

C benchmarks (except as noted below):

 cc
403.gcc:  gcc
456.hmmer:  gcc
462.libquantum:  gcc

C++ benchmarks (except as noted below):

 CC
471.omnetpp:  g++

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_NEED_COMPLEX_I
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -xipo=2   -Xc   -xrestrict   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2   -xalias_level=std
429.mcf:  basepeak = yes
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -xrestrict
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2
462.libquantum:  -fast   -xipo=2
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std
473.astar:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -xipo=2   -xarch=v8plusb   -lfast   -lbsdmalloc
483.xalancbmk:  -g0   -library=stlport4   -fast   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -xipo=2   -lfast

Peak Other Flags

C benchmarks (except as noted below):

 -xjobs=32   -V   -#
403.gcc:  -v
456.hmmer:  -v
462.libquantum:  -v

C++ benchmarks (except as noted below):

 -xjobs=32   -verbose=diags,version
471.omnetpp:  -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090714.xml.
