| CPU2006 license: | 22 | Test date: | Jan-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jan-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5260 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64, Version 10.1, Build 20070913 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User, Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library, Version 8.1 binutils-2.17.50.0.5-0.1.x86_64 |

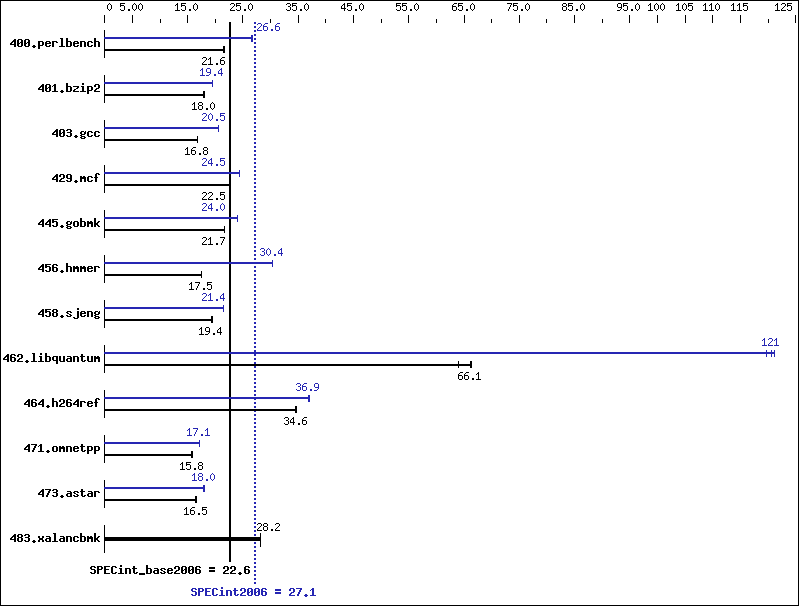

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 453 | 21.6 | 454 | 21.5 | 453 | 21.6 | 367 | 26.6 | 367 | 26.6 | 369 | 26.5 |
| 401.bzip2 | 534 | 18.1 | 535 | 18.0 | 539 | 17.9 | 497 | 19.4 | 497 | 19.4 | 497 | 19.4 |
| 403.gcc | 479 | 16.8 | 479 | 16.8 | 478 | 16.8 | 392 | 20.5 | 392 | 20.5 | 391 | 20.6 |
| 429.mcf | 406 | 22.5 | 405 | 22.5 | 405 | 22.5 | 374 | 24.4 | 373 | 24.5 | 373 | 24.5 |
| 445.gobmk | 485 | 21.7 | 484 | 21.7 | 484 | 21.7 | 437 | 24.0 | 437 | 24.0 | 437 | 24.0 |
| 456.hmmer | 533 | 17.5 | 533 | 17.5 | 533 | 17.5 | 307 | 30.4 | 307 | 30.4 | 308 | 30.3 |
| 458.sjeng | 624 | 19.4 | 623 | 19.4 | 626 | 19.3 | 564 | 21.4 | 565 | 21.4 | 561 | 21.6 |
| 462.libquantum | 324 | 64.0 | 314 | 66.1 | 312 | 66.4 | 171 | 121 | 172 | 121 | 173 | 120 |
| 464.h264ref | 639 | 34.6 | 642 | 34.5 | 639 | 34.6 | 600 | 36.9 | 599 | 36.9 | 599 | 37.0 |
| 471.omnetpp | 396 | 15.8 | 395 | 15.8 | 396 | 15.8 | 365 | 17.1 | 365 | 17.1 | 366 | 17.1 |
| 473.astar | 424 | 16.5 | 427 | 16.5 | 425 | 16.5 | 392 | 17.9 | 390 | 18.0 | 390 | 18.0 |
| 483.xalancbmk | 245 | 28.2 | 245 | 28.2 | 245 | 28.2 | 245 | 28.2 | 245 | 28.2 | 245 | 28.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
Platform Notes
BIOS configuration: Enhanced Speedstep Technology = Disable Hardware Prefetch = Enable, Adjacent Sector Prefetch = Enable SnoopFilter = Disable
General Notes
All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
