SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

SGI

SGI Altix ICE 8200
(Intel Xeon E5440, 2.83 GHz)

CPU2006 license: 4 Test date: Jan-2007
Test sponsor: SGI Hardware Availability: Jan-2008
Tested by: SGI Software Availability: Nov-2007

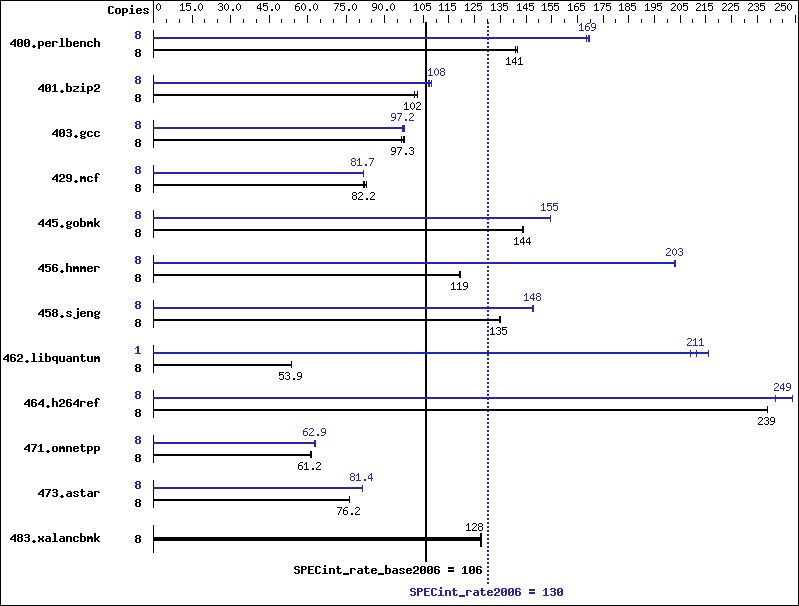

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5440
CPU Characteristics: Quad Core, 2.83GHz
CPU MHz: 2833
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8*2GB PC2-5300 FB-DIMMs)
Disk Subsystem: 16 TB RAID 5+1
32 x 500 GB SATA (Seagate Barracuda 7200 rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ Compiler for Linux
Version 10.1, Build 20070913
Auto Parallel: Yes
File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
SGI ProPack 5 for Linux Service Pack 3
Binutils 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 552 142   554 141   554 141   8 464   168   461   170   461   169
401.bzip2 8 760 102   761 101   751 103   8 722   107   718   108   713   108
403.gcc 8 667 96.5 662 97.3 660 97.5 8 665   96.9 658   97.8 663   97.2
429.mcf 8 881 82.8 894 81.6 888 82.2 8 892   81.8 894   81.6 893   81.7
445.gobmk 8 583 144   583 144   584 144   8 543   155   543   155   542   155
456.hmmer 8 625 119   625 119   626 119   8 368   203   367   203   367   203
458.sjeng 8 719 135   716 135   719 135   8 654   148   657   147   654   148
462.libquantum 8 3078 53.9 3077 53.9 3078 53.8 1 99.1 209   95.9 216   98.0 211
464.h264ref 8 741 239   741 239   741 239   8 712   249   711   249   731   242
471.omnetpp 8 818 61.2 811 61.6 818 61.1 8 794   63.0 795   62.9 797   62.7
473.astar 8 737 76.2 737 76.2 737 76.2 8 689   81.5 690   81.4 690   81.4
483.xalancbmk 8 432 128   434 127   432 128   8 432   128   434   127   432   128

General Notes

BIOS settings:
  Snoop Filter:             Disabled
  Hardware Prefetcher:      Enabled
  Adjacent Sector Prefetch: Disabled
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode
The taskset utility was used to bind processes to cores
Parallel settings for 462.libquantum peak:
  OMP_NUM_THREADS = 8
  KMP_AFFINITY = physical,0
  KMP_STACKSIZE = 64M

Base Compiler Invocation

C benchmarks:

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

C++ benchmarks:

 /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
401.bzip2:  /sw/sdev/intel-cc/x86_64/10.1.008/bin/icc   -L/sw/sdev/intel-cc/x86_64/10.1.008/lib   -I/sw/sdev/intel-cc/x86_64/10.1.008/include
456.hmmer:  /sw/sdev/intel-cc/x86_64/10.1.008/bin/icc   -L/sw/sdev/intel-cc/x86_64/10.1.008/lib   -I/sw/sdev/intel-cc/x86_64/10.1.008/include

C++ benchmarks:

 /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.04.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.04.xml.
