CPU2006 license: | 3 | Test date: | Jan-2008 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2008 |
Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3220 |
CPU Characteristics: | 2.4 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (4x2 GB PC2-6400E CL5) |
Disk Subsystem: | 1x250 GB 7.2 K SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for applications running on IA-32 and Intel 64, Version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 Intel Fortran Compiler for applications running on IA-32 and Intel 64, Version 10.1 Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multi-user run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils-2.17.50 |

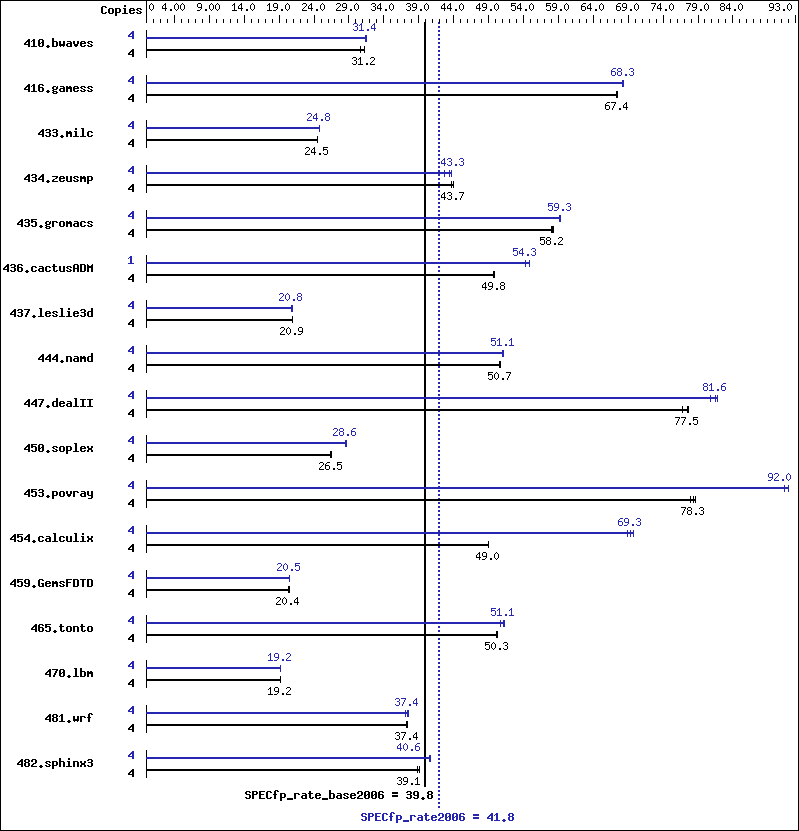

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 1772 | 30.7 | 1743 | 31.2 | 1740 | 31.2 | 4 | 1725 | 31.5 | 1730 | 31.4 | 1734 | 31.3 |
416.gamess | 4 | 1162 | 67.4 | 1162 | 67.4 | 1163 | 67.3 | 4 | 1148 | 68.2 | 1145 | 68.4 | 1146 | 68.3 |
433.milc | 4 | 1496 | 24.5 | 1496 | 24.5 | 1496 | 24.6 | 4 | 1482 | 24.8 | 1482 | 24.8 | 1484 | 24.7 |
434.zeusmp | 4 | 833 | 43.7 | 827 | 44.0 | 834 | 43.7 | 4 | 833 | 43.7 | 853 | 42.7 | 840 | 43.3 |
435.gromacs | 4 | 493 | 58.0 | 491 | 58.2 | 490 | 58.3 | 4 | 482 | 59.3 | 483 | 59.1 | 482 | 59.3 |
436.cactusADM | 4 | 962 | 49.7 | 960 | 49.8 | 960 | 49.8 | 1 | 218 | 54.9 | 220 | 54.3 | 220 | 54.2 |
437.leslie3d | 4 | 1799 | 20.9 | 1799 | 20.9 | 1794 | 21.0 | 4 | 1804 | 20.8 | 1805 | 20.8 | 1802 | 20.9 |
444.namd | 4 | 634 | 50.6 | 633 | 50.7 | 632 | 50.7 | 4 | 628 | 51.1 | 628 | 51.1 | 629 | 51.0 |
447.dealII | 4 | 596 | 76.8 | 589 | 77.6 | 591 | 77.5 | 4 | 559 | 81.8 | 567 | 80.7 | 561 | 81.6 |
450.soplex | 4 | 1260 | 26.5 | 1263 | 26.4 | 1260 | 26.5 | 4 | 1167 | 28.6 | 1169 | 28.5 | 1168 | 28.6 |
453.povray | 4 | 273 | 77.9 | 272 | 78.3 | 271 | 78.6 | 4 | 231 | 92.0 | 231 | 92.0 | 233 | 91.4 |
454.calculix | 4 | 673 | 49.0 | 673 | 49.0 | 674 | 49.0 | 4 | 476 | 69.3 | 473 | 69.8 | 479 | 68.8 |
459.GemsFDTD | 4 | 2082 | 20.4 | 2079 | 20.4 | 2079 | 20.4 | 4 | 2073 | 20.5 | 2074 | 20.5 | 2073 | 20.5 |
465.tonto | 4 | 785 | 50.2 | 782 | 50.3 | 782 | 50.3 | 4 | 775 | 50.8 | 770 | 51.1 | 767 | 51.3 |
470.lbm | 4 | 2861 | 19.2 | 2862 | 19.2 | 2862 | 19.2 | 4 | 2856 | 19.2 | 2856 | 19.2 | 2856 | 19.2 |
481.wrf | 4 | 1193 | 37.5 | 1200 | 37.2 | 1196 | 37.4 | 4 | 1191 | 37.5 | 1196 | 37.4 | 1204 | 37.1 |
482.sphinx3 | 4 | 1996 | 39.1 | 1990 | 39.2 | 2010 | 38.8 | 4 | 1918 | 40.6 | 1915 | 40.7 | 1921 | 40.6 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS configuration: Power Regulator set to Static High Performance Mode Adjacent Sector Prefetch Disabled Hardware Prefetcher Disabled
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
