| CPU2006 license: | 11 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jan-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Binutils 2.17.50.0.15 |

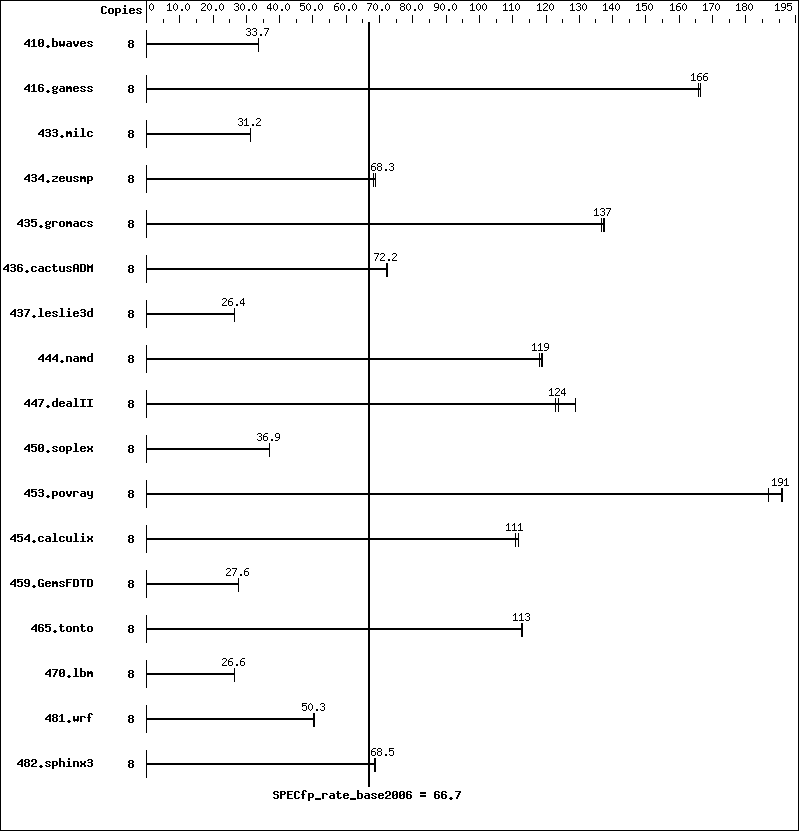

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3229 | 33.7 | 3231 | 33.6 | 3228 | 33.7 | |||||||
| 416.gamess | 8 | 944 | 166 | 942 | 166 | 941 | 166 | |||||||
| 433.milc | 8 | 2355 | 31.2 | 2349 | 31.3 | 2354 | 31.2 | |||||||
| 434.zeusmp | 8 | 1065 | 68.3 | 1066 | 68.3 | 1060 | 68.7 | |||||||
| 435.gromacs | 8 | 415 | 138 | 416 | 137 | 418 | 137 | |||||||
| 436.cactusADM | 8 | 1329 | 71.9 | 1324 | 72.2 | 1322 | 72.3 | |||||||
| 437.leslie3d | 8 | 2852 | 26.4 | 2847 | 26.4 | 2854 | 26.3 | |||||||
| 444.namd | 8 | 541 | 119 | 540 | 119 | 543 | 118 | |||||||
| 447.dealII | 8 | 739 | 124 | 746 | 123 | 711 | 129 | |||||||
| 450.soplex | 8 | 1810 | 36.9 | 1813 | 36.8 | 1810 | 36.9 | |||||||
| 453.povray | 8 | 223 | 191 | 223 | 191 | 228 | 187 | |||||||
| 454.calculix | 8 | 596 | 111 | 591 | 112 | 595 | 111 | |||||||
| 459.GemsFDTD | 8 | 3072 | 27.6 | 3075 | 27.6 | 3087 | 27.5 | |||||||
| 465.tonto | 8 | 697 | 113 | 698 | 113 | 698 | 113 | |||||||
| 470.lbm | 8 | 4139 | 26.6 | 4142 | 26.5 | 4140 | 26.6 | |||||||
| 481.wrf | 8 | 1776 | 50.3 | 1786 | 50.0 | 1775 | 50.4 | |||||||
| 482.sphinx3 | 8 | 2266 | 68.8 | 2278 | 68.5 | 2281 | 68.3 | |||||||
General Notes
All benchmarks compiled in 64-bit mode Hardware Sector Prefetch Disabled and Adjacent Sector Prefetch Disabled Powersaved dameon was disabled in OS taskset utility used to bind CPU(s) to processes
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
