SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade T6320

CPU2006 license: 6 Test date: Oct-2007
Test sponsor: Sun Microsystems Hardware Availability: Feb-2008
Tested by: Sun Microsystems Software Availability: Sep-2007

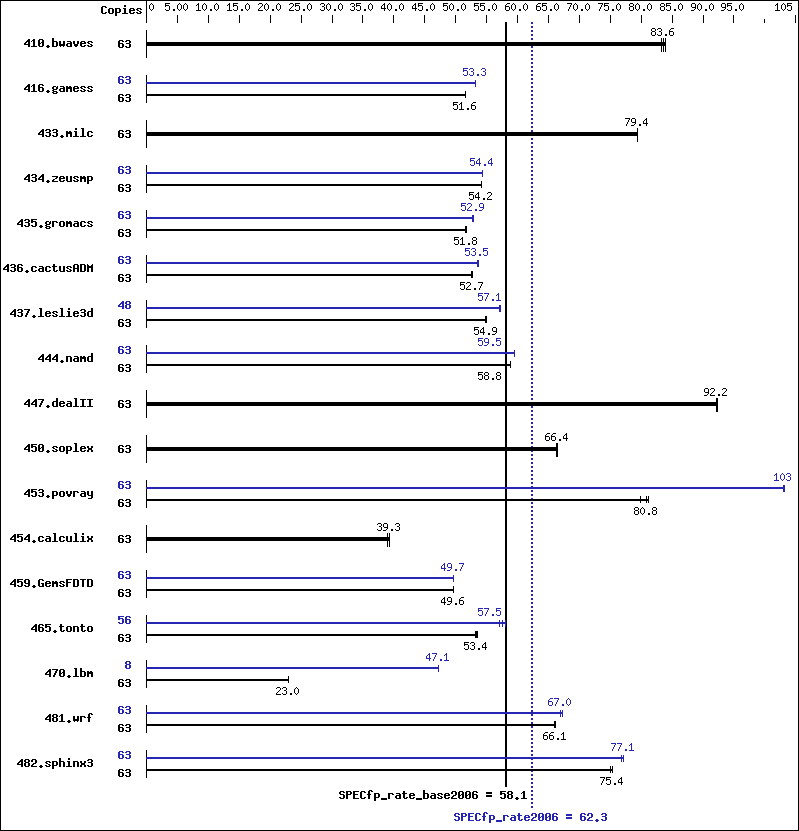

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2
CPU Characteristics:
CPU MHz: 1417
FPU: Integrated
CPU(s) enabled: 8 cores, 1 chip, 8 cores/chip, 8 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 64 GB (16 x 4 GB)
Disk Subsystem: 1 x SUN72G 10K RPM SAS disk
ufs fragment size 8192 bytes
Other Hardware: None
Software
Operating System: Solaris 10 8/07 (build s10s_u4wos_12b)
Compiler: Sun Studio 12 (patch build 2007/08/30)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 63 10206 83.9 10240 83.6 10276 83.3 63 10206 83.9 10240 83.6 10276 83.3
416.gamess 63 23889 51.6 23886 51.6 23887 51.6 63 23159 53.3 23165 53.2 23156 53.3
433.milc 63 7284 79.4 7280 79.4 7283 79.4 63 7284 79.4 7280 79.4 7283 79.4
434.zeusmp 63 10580 54.2 10571 54.2 10576 54.2 63 10541 54.4 10540 54.4 10556 54.3
435.gromacs 63 8718 51.6 8683 51.8 8687 51.8 63 8540 52.7 8493 53.0 8511 52.9
436.cactusADM 63 14303 52.6 14291 52.7 14278 52.7 63 14077 53.5 14037 53.6 14079 53.5
437.leslie3d 63 10796 54.9 10778 54.9 10769 55.0 48 7899 57.1 7915 57.0 7890 57.2
444.namd 63 8592 58.8 8586 58.8 8585 58.9 63 8479 59.6 8497 59.5 8497 59.5
447.dealII 63 7823 92.1 7816 92.2 7810 92.3 63 7823 92.1 7816 92.2 7810 92.3
450.soplex 63 7907 66.5 7908 66.4 7915 66.4 63 7907 66.5 7908 66.4 7915 66.4
453.povray 63 4146 80.8 4127 81.2 4194 79.9 63 3252 103   3250 103   3254 103
454.calculix 63 13329 39.0 13225 39.3 13205 39.4 63 13329 39.0 13225 39.3 13205 39.4
459.GemsFDTD 63 13471 49.6 13467 49.6 13467 49.6 63 13452 49.7 13454 49.7 13452 49.7
465.tonto 63 11609 53.4 11653 53.2 11589 53.5 56 9639 57.2 9481 58.1 9579 57.5
470.lbm 63 37575 23.0 37561 23.0 37600 23.0 8 2331 47.2 2332 47.1 2331 47.1
481.wrf 63 10662 66.0 10643 66.1 10646 66.1 63 10460 67.3 10511 66.9 10511 67.0
482.sphinx3 63 16275 75.4 16346 75.1 16294 75.4 63 15913 77.2 15976 76.9 15928 77.1

Compiler Invocation Notes


Compiler patches are available at
http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
The above result used a 30 August 2007 build of patch 124861-03.

Operating System Notes


Processes were bound to cores using "submit" and "pbind".

ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.

 The "webconsole" service was turned off using
     svcadm disable webconsole

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xdepend   -xalias_level=compatible

Fortran benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -g   -fast(cc)   -fast(f90)   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access

Base Other Flags

C benchmarks:

 -xjobs=32   -V

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V

Benchmarks using both Fortran and C:

 -xjobs=32   -V

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch_level=3   -xipo=2   -xrestrict
482.sphinx3:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xinline=   -xprefetch_level=2   -Wc,-Qlp-ol=1   -xrestrict   -xalias_level=strong   -fsimple=1   -xlinkopt=2   -lfast

C++ benchmarks:

444.namd:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xdepend   -xalias_level=compatible   -xprefetch_level=1   -xlinkopt=2
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xdepend   -xalias_level=compatible   -xipo=2   -xrestrict   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xlinkopt=2
434.zeusmp:  -g   -fast   -xpagesize=4M   -xipo=1   -qoption cg -Qeps:enabled=1   -qoption cg -Qeps:ws=8   -lmopt
437.leslie3d:  -g   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -xprefetch_level=3   -xprefetch=latx:1.6   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4
459.GemsFDTD:  -g   -fast   -xpagesize=4M   -fsimple=1
465.tonto:  -g   -fast   -xpagesize=4M   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -xipo=1   -xinline=   -xarch=generic   -xchip=generic   -fsimple=0
436.cactusADM:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -xipo=2   -fsimple=1   -xlinkopt=2
454.calculix:  basepeak = yes
481.wrf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -xlinkopt=2

Peak Other Flags

C benchmarks:

 -xjobs=32   -V

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V

Benchmarks using both Fortran and C:

 -xjobs=32   -V

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.1.
Report generated on Tue Jul 22 16:33:38 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 6 February 2008.
