| CPU2006 license: | 97 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2007 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 2130 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2048 MB ECC Unbuffered DDR2-800 CL5) |
| Disk Subsystem: | 1 x 160 GB 7200RPM SATA HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 SP1 (x86_64) Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

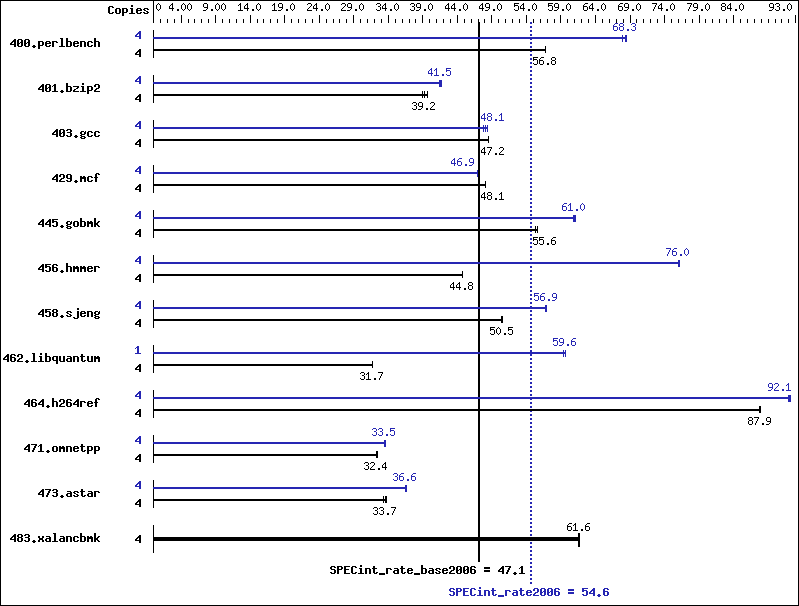

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 688 | 56.8 | 689 | 56.7 | 688 | 56.8 | 4 | 572 | 68.3 | 575 | 68.0 | 571 | 68.4 |
| 401.bzip2 | 4 | 984 | 39.2 | 992 | 38.9 | 973 | 39.7 | 4 | 932 | 41.4 | 926 | 41.7 | 929 | 41.5 |
| 403.gcc | 4 | 682 | 47.2 | 665 | 48.5 | 683 | 47.2 | 4 | 666 | 48.4 | 670 | 48.1 | 675 | 47.7 |
| 429.mcf | 4 | 758 | 48.1 | 760 | 48.0 | 759 | 48.1 | 4 | 778 | 46.9 | 778 | 46.9 | 777 | 47.0 |
| 445.gobmk | 4 | 754 | 55.6 | 759 | 55.2 | 754 | 55.6 | 4 | 687 | 61.1 | 688 | 61.0 | 690 | 60.9 |
| 456.hmmer | 4 | 834 | 44.8 | 834 | 44.8 | 835 | 44.7 | 4 | 491 | 76.0 | 490 | 76.2 | 491 | 76.0 |
| 458.sjeng | 4 | 957 | 50.6 | 960 | 50.4 | 958 | 50.5 | 4 | 851 | 56.9 | 850 | 56.9 | 852 | 56.8 |
| 462.libquantum | 4 | 2619 | 31.7 | 2617 | 31.7 | 2618 | 31.7 | 1 | 349 | 59.3 | 347 | 59.6 | 347 | 59.7 |
| 464.h264ref | 4 | 1007 | 87.9 | 1009 | 87.7 | 1008 | 87.9 | 4 | 960 | 92.2 | 961 | 92.1 | 963 | 91.9 |
| 471.omnetpp | 4 | 773 | 32.4 | 773 | 32.4 | 772 | 32.4 | 4 | 745 | 33.5 | 747 | 33.5 | 747 | 33.5 |
| 473.astar | 4 | 832 | 33.8 | 834 | 33.7 | 843 | 33.3 | 4 | 769 | 36.5 | 768 | 36.6 | 766 | 36.6 |
| 483.xalancbmk | 4 | 448 | 61.7 | 448 | 61.6 | 448 | 61.6 | 4 | 448 | 61.7 | 448 | 61.6 | 448 | 61.6 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode "ulimit -s unlimited" was set for stacksize unlimited All results used taskset to bind processes to cores. OMP_NUM_THREADS set to number of cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
