SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/110Rh-1
(Intel Xeon processor 3060)

SPECint®2006 = 18.2

CPU2006 license: 9006 Test date: Nov-2007
Test sponsor: NEC Corporation Hardware Availability: Nov-2006
Tested by: NEC Corporation Software Availability: Jun-2007

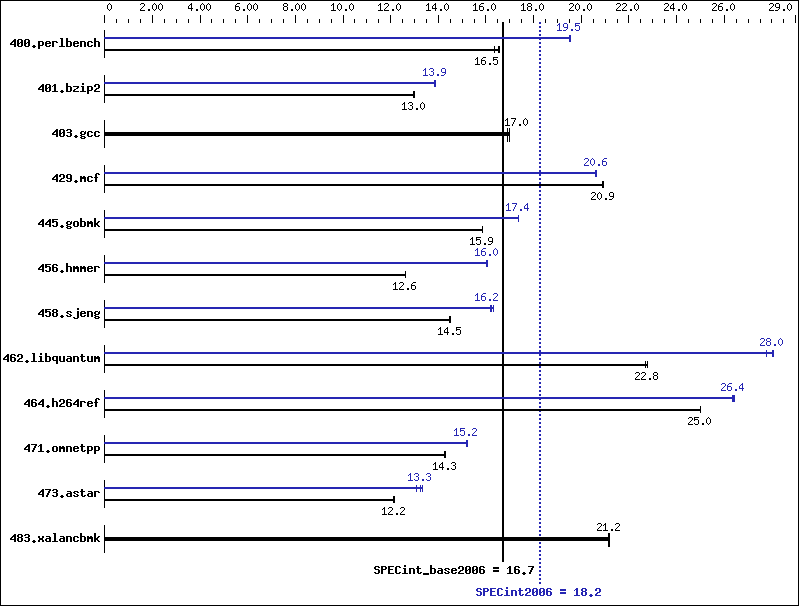

Benchmark results graph
Hardware
CPU Name: Intel Xeon 3060
CPU Characteristics: 2.40 GHz, 4 MB L2, 1066 MHz bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-5300E, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x80 GB SATAII, 7200RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64),
Kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.0 Build 20070426 Package ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 589 16.6 591 16.5 598 16.4 501 19.5 501 19.5 500 19.5
401.bzip2 743 13.0 742 13.0 746 12.9 698 13.8 695 13.9 695 13.9
403.gcc 476 16.9 474 17.0 474 17.0 476 16.9 474 17.0 474 17.0
429.mcf 436 20.9 437 20.9 435 20.9 443 20.6 442 20.6 442 20.6
445.gobmk 661 15.9 661 15.9 661 15.9 605 17.4 605 17.4 604 17.4
456.hmmer 740 12.6 738 12.6 738 12.6 580 16.1 582 16.0 581 16.0
458.sjeng 833 14.5 833 14.5 837 14.5 742 16.3 745 16.2 747 16.2
462.libquantum 909 22.8 910 22.8 913 22.7 739 28.0 738 28.1 746 27.8
464.h264ref 885 25.0 885 25.0 886 25.0 838 26.4 839 26.4 837 26.4
471.omnetpp 437 14.3 437 14.3 438 14.3 411 15.2 411 15.2 411 15.2
473.astar 579 12.1 577 12.2 577 12.2 526 13.3 529 13.3 536 13.1
483.xalancbmk 326 21.2 326 21.2 326 21.2 326 21.2 326 21.2 326 21.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes


All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-ic10-INT-ia32-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-ic10-INT-ia32-intel64-linux-flags.xml.
