CPU2006 license: | 55 | Test date: | Dec-2007 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2007 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5450 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008, l_fc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

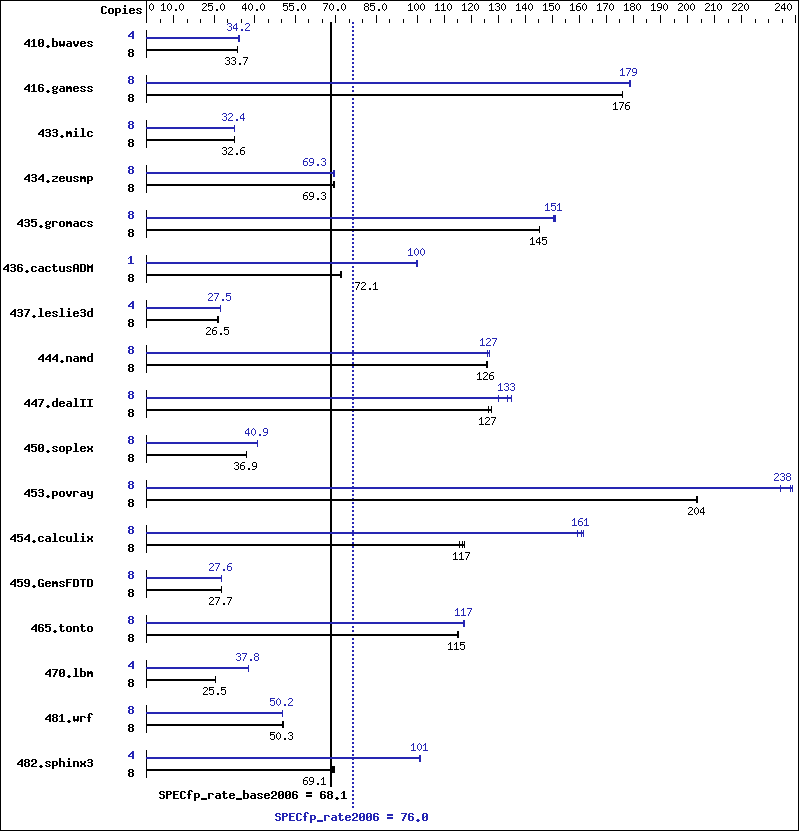

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3227 | 33.7 | 3227 | 33.7 | 3225 | 33.7 | 4 | 1586 | 34.3 | 1588 | 34.2 | 1590 | 34.2 |
416.gamess | 8 | 890 | 176 | 890 | 176 | 891 | 176 | 8 | 877 | 179 | 877 | 179 | 876 | 179 |
433.milc | 8 | 2260 | 32.5 | 2254 | 32.6 | 2254 | 32.6 | 8 | 2264 | 32.4 | 2262 | 32.5 | 2268 | 32.4 |
434.zeusmp | 8 | 1053 | 69.1 | 1051 | 69.3 | 1045 | 69.7 | 8 | 1052 | 69.2 | 1049 | 69.4 | 1050 | 69.3 |
435.gromacs | 8 | 393 | 145 | 393 | 145 | 393 | 145 | 8 | 379 | 151 | 380 | 150 | 378 | 151 |
436.cactusADM | 8 | 1332 | 71.8 | 1326 | 72.1 | 1326 | 72.1 | 1 | 119 | 100 | 119 | 100 | 120 | 99.9 |
437.leslie3d | 8 | 2837 | 26.5 | 2846 | 26.4 | 2842 | 26.5 | 4 | 1366 | 27.5 | 1369 | 27.5 | 1367 | 27.5 |
444.namd | 8 | 510 | 126 | 510 | 126 | 510 | 126 | 8 | 506 | 127 | 508 | 126 | 506 | 127 |
447.dealII | 8 | 719 | 127 | 724 | 126 | 723 | 127 | 8 | 704 | 130 | 677 | 135 | 686 | 133 |
450.soplex | 8 | 1808 | 36.9 | 1806 | 36.9 | 1808 | 36.9 | 8 | 1630 | 40.9 | 1627 | 41.0 | 1630 | 40.9 |
453.povray | 8 | 209 | 204 | 209 | 204 | 209 | 203 | 8 | 182 | 234 | 178 | 239 | 179 | 238 |
454.calculix | 8 | 571 | 116 | 561 | 118 | 564 | 117 | 8 | 415 | 159 | 409 | 161 | 410 | 161 |
459.GemsFDTD | 8 | 3066 | 27.7 | 3082 | 27.5 | 3058 | 27.8 | 8 | 3066 | 27.7 | 3075 | 27.6 | 3071 | 27.6 |
465.tonto | 8 | 683 | 115 | 684 | 115 | 686 | 115 | 8 | 670 | 117 | 671 | 117 | 673 | 117 |
470.lbm | 8 | 4309 | 25.5 | 4303 | 25.5 | 4301 | 25.6 | 4 | 1455 | 37.8 | 1454 | 37.8 | 1456 | 37.7 |
481.wrf | 8 | 1781 | 50.2 | 1770 | 50.5 | 1776 | 50.3 | 8 | 1784 | 50.1 | 1771 | 50.4 | 1778 | 50.2 |
482.sphinx3 | 8 | 2247 | 69.4 | 2268 | 68.8 | 2255 | 69.1 | 4 | 769 | 101 | 773 | 101 | 771 | 101 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
