SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel QX6850, 3.00 GHz)

SPECfp®2006 = 20.6

CPU2006 license: 55 Test date: Dec-2007
Test sponsor: Dell Inc. Hardware Availability: Oct-2007
Tested by: Dell Inc. Software Availability: Nov-2007

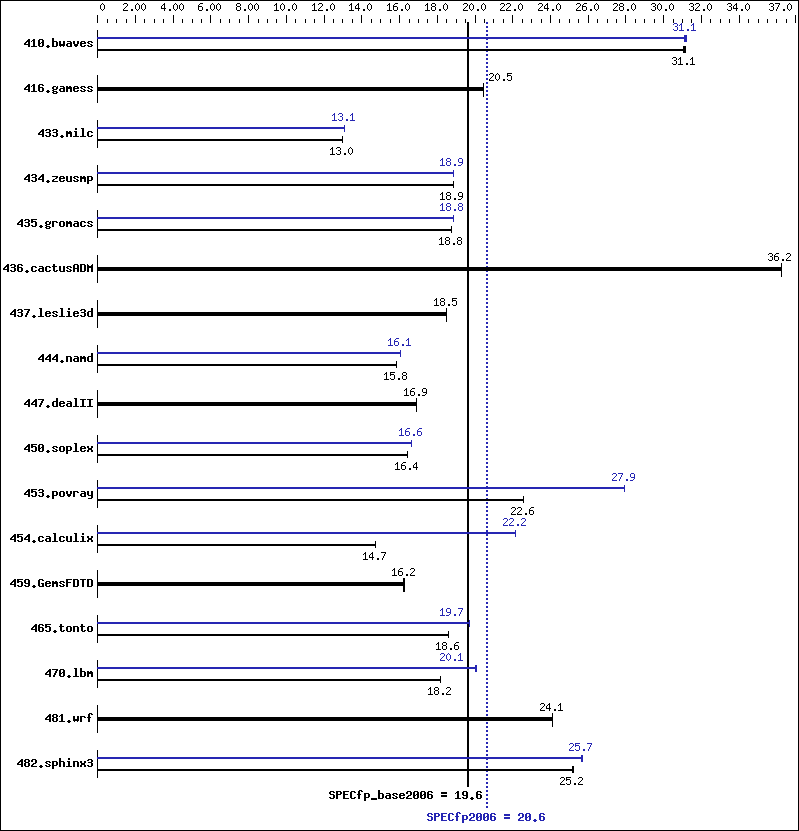

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX6850
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB 800 MHz ECC CL6 DDR2)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.1
Build 20070809 Package ID: w_cc_p_10.1.011
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070809 Package ID: w_fc_p_10.1.011
Microsoft Visual Studio 2005 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 437 31.1 437 31.1 436 31.1 436 31.1 437 31.1 435 31.2
416.gamess 957 20.5 957 20.5 957 20.5 957 20.5 957 20.5 957 20.5
433.milc 709 13.0 709 13.0 708 13.0 701 13.1 701 13.1 701 13.1
434.zeusmp 483 18.8 483 18.9 483 18.9 483 18.9 483 18.9 483 18.9
435.gromacs 381 18.8 381 18.8 380 18.8 379 18.8 379 18.8 379 18.8
436.cactusADM 330 36.2 330 36.2 330 36.2 330 36.2 330 36.2 330 36.2
437.leslie3d 508 18.5 508 18.5 508 18.5 508 18.5 508 18.5 508 18.5
444.namd 506 15.8 506 15.8 506 15.8 499 16.1 499 16.1 499 16.1
447.dealII 678 16.9 678 16.9 678 16.9 678 16.9 678 16.9 678 16.9
450.soplex 507 16.4 507 16.4 507 16.4 502 16.6 502 16.6 502 16.6
453.povray 236 22.6 236 22.6 236 22.6 191 27.9 191 27.9 191 27.9
454.calculix 560 14.7 560 14.7 560 14.7 372 22.2 373 22.1 372 22.2
459.GemsFDTD 653 16.3 654 16.2 653 16.2 653 16.3 654 16.2 653 16.2
465.tonto 530 18.6 530 18.6 530 18.6 500 19.7 499 19.7 500 19.7
470.lbm 757 18.1 756 18.2 757 18.2 686 20.0 685 20.1 684 20.1
481.wrf 463 24.1 463 24.1 463 24.1 463 24.1 463 24.1 463 24.1
482.sphinx3 773 25.2 775 25.2 774 25.2 760 25.7 760 25.6 758 25.7

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto-ilp32   -Qparallel   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Oa   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
470.lbm:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll2   -Qscalar-rep-   -Qprefetch   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
482.sphinx3:  -fast   -Qauto-ilp32   -Qunroll2   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qparallel   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qansi-alias   -Qcxx_features   /F1000000000   shlw64mt.lib   libguide40.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -fast   -Qauto-ilp32   -Qparallel   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Qunroll4   -Qauto   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qauto-ilp32   -Oa   -Qprefetch   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto-ilp32   -Qunroll-aggressive   /F1000000000   libguide40.lib    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.1.windows.flags.20090714.01.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:59:15 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 26 December 2007.
