| CPU2006 license: | 55 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2008 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5272 |
| CPU Characteristics: | 1600 MHz Bus Speed |
| CPU MHz: | 3400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB 800 MHz FB-DIMM CL5) |
| Disk Subsystem: | 1 x 73 GB SAS 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional x64 Edition SP2 |
| Compiler: | Intel C++ Compiler for IA-32, Version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Microsoft Visual Studio 2005 SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

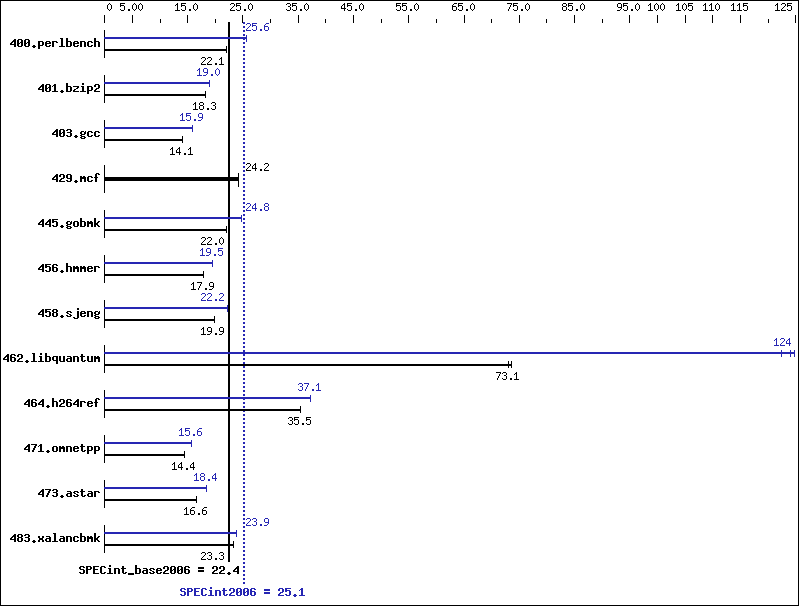

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 442 | 22.1 | 442 | 22.1 | 442 | 22.1 | 382 | 25.6 | 382 | 25.6 | 382 | 25.6 |
| 401.bzip2 | 528 | 18.3 | 529 | 18.2 | 529 | 18.3 | 508 | 19.0 | 508 | 19.0 | 508 | 19.0 |
| 403.gcc | 569 | 14.2 | 571 | 14.1 | 572 | 14.1 | 506 | 15.9 | 505 | 15.9 | 505 | 15.9 |
| 429.mcf | 377 | 24.2 | 377 | 24.2 | 377 | 24.2 | 377 | 24.2 | 377 | 24.2 | 377 | 24.2 |
| 445.gobmk | 476 | 22.0 | 476 | 22.0 | 476 | 22.0 | 423 | 24.8 | 424 | 24.7 | 424 | 24.8 |
| 456.hmmer | 520 | 17.9 | 520 | 17.9 | 520 | 17.9 | 480 | 19.5 | 480 | 19.5 | 480 | 19.5 |
| 458.sjeng | 608 | 19.9 | 607 | 19.9 | 607 | 19.9 | 546 | 22.2 | 546 | 22.2 | 545 | 22.2 |
| 462.libquantum | 283 | 73.1 | 284 | 73.0 | 282 | 73.5 | 167 | 124 | 166 | 125 | 169 | 123 |
| 464.h264ref | 624 | 35.5 | 624 | 35.5 | 624 | 35.5 | 596 | 37.1 | 596 | 37.1 | 596 | 37.1 |
| 471.omnetpp | 435 | 14.4 | 435 | 14.4 | 435 | 14.4 | 400 | 15.6 | 399 | 15.6 | 399 | 15.6 |
| 473.astar | 424 | 16.6 | 423 | 16.6 | 423 | 16.6 | 381 | 18.4 | 381 | 18.4 | 380 | 18.5 |
| 483.xalancbmk | 297 | 23.3 | 296 | 23.3 | 297 | 23.3 | 289 | 23.9 | 289 | 23.9 | 289 | 23.9 |
General Notes
Binaries were built on Windows Vista Ultimate (64-bit) BIOS Settings Adjacent Cache Line Prefetch set to ON
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 shlw32mt.lib libguide40.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32mt.lib libguide40.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=block -Qcxx_features /F512000000 shlw32mt.lib libguide40.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qopt-ra-region-strategy=routine -Qcxx_features /F512000000 shlw32mt.lib libguide40.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32mt.lib libguide40.lib -link /FORCE:MULTIPLE |
