| CPU2006 license: | 22 | Test date: | Dec-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5260 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

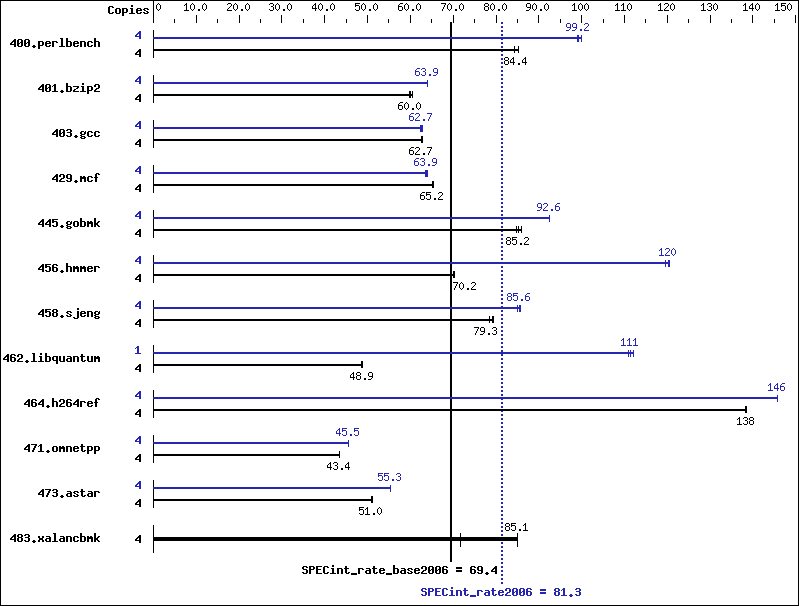

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 464 | 84.3 | 459 | 85.2 | 463 | 84.4 | 4 | 391 | 99.9 | 394 | 99.2 | 395 | 99.0 |
| 401.bzip2 | 4 | 639 | 60.4 | 643 | 60.0 | 644 | 59.9 | 4 | 604 | 63.9 | 604 | 63.9 | 602 | 64.1 |
| 403.gcc | 4 | 514 | 62.7 | 515 | 62.6 | 513 | 62.7 | 4 | 513 | 62.8 | 516 | 62.5 | 514 | 62.7 |
| 429.mcf | 4 | 560 | 65.2 | 561 | 65.1 | 557 | 65.5 | 4 | 573 | 63.6 | 571 | 63.9 | 570 | 64.0 |
| 445.gobmk | 4 | 488 | 85.9 | 495 | 84.7 | 493 | 85.2 | 4 | 453 | 92.6 | 453 | 92.6 | 453 | 92.6 |
| 456.hmmer | 4 | 531 | 70.2 | 532 | 70.2 | 532 | 70.2 | 4 | 310 | 120 | 312 | 120 | 310 | 120 |
| 458.sjeng | 4 | 610 | 79.4 | 611 | 79.3 | 616 | 78.5 | 4 | 564 | 85.8 | 569 | 85.1 | 566 | 85.6 |
| 462.libquantum | 4 | 1707 | 48.6 | 1696 | 48.9 | 1696 | 48.9 | 1 | 186 | 111 | 185 | 112 | 187 | 111 |
| 464.h264ref | 4 | 639 | 139 | 639 | 138 | 640 | 138 | 4 | 608 | 146 | 608 | 146 | 607 | 146 |
| 471.omnetpp | 4 | 576 | 43.4 | 576 | 43.4 | 575 | 43.5 | 4 | 550 | 45.5 | 550 | 45.5 | 550 | 45.5 |
| 473.astar | 4 | 551 | 51.0 | 549 | 51.1 | 550 | 51.0 | 4 | 508 | 55.3 | 508 | 55.3 | 508 | 55.3 |
| 483.xalancbmk | 4 | 324 | 85.1 | 386 | 71.6 | 324 | 85.1 | 4 | 324 | 85.1 | 386 | 71.6 | 324 | 85.1 |
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
