| CPU2006 license: | 22 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

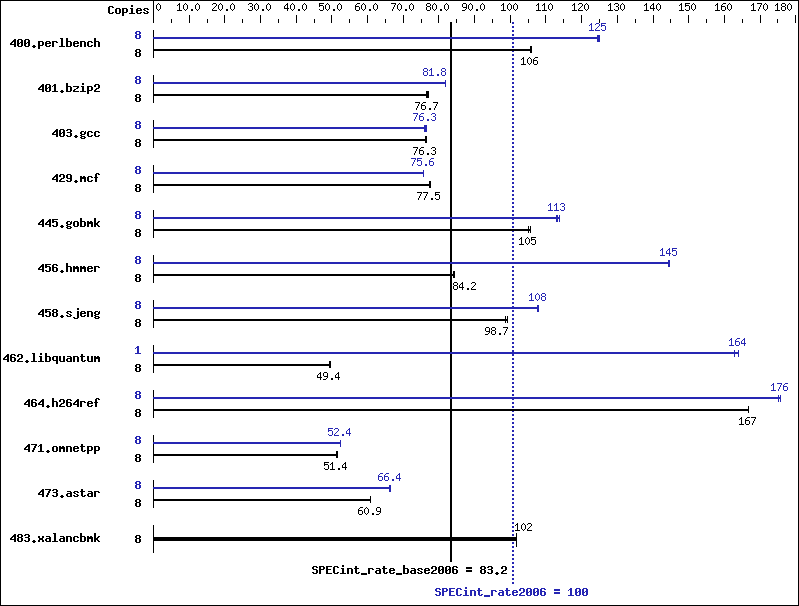

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 738 | 106 | 741 | 106 | 741 | 106 | 8 | 626 | 125 | 627 | 125 | 628 | 125 |
| 401.bzip2 | 8 | 1007 | 76.7 | 1002 | 77.0 | 1008 | 76.6 | 8 | 945 | 81.7 | 942 | 81.9 | 943 | 81.8 |
| 403.gcc | 8 | 844 | 76.3 | 842 | 76.5 | 846 | 76.2 | 8 | 844 | 76.3 | 842 | 76.5 | 847 | 76.1 |
| 429.mcf | 8 | 940 | 77.6 | 942 | 77.5 | 943 | 77.4 | 8 | 965 | 75.6 | 965 | 75.6 | 964 | 75.7 |
| 445.gobmk | 8 | 795 | 106 | 799 | 105 | 798 | 105 | 8 | 738 | 114 | 742 | 113 | 741 | 113 |
| 456.hmmer | 8 | 887 | 84.2 | 886 | 84.3 | 887 | 84.2 | 8 | 517 | 144 | 516 | 145 | 516 | 145 |
| 458.sjeng | 8 | 981 | 98.7 | 980 | 98.7 | 977 | 99.1 | 8 | 897 | 108 | 898 | 108 | 899 | 108 |
| 462.libquantum | 8 | 3357 | 49.4 | 3350 | 49.5 | 3355 | 49.4 | 1 | 127 | 163 | 126 | 164 | 126 | 164 |
| 464.h264ref | 8 | 1062 | 167 | 1061 | 167 | 1062 | 167 | 8 | 1007 | 176 | 1010 | 175 | 1008 | 176 |
| 471.omnetpp | 8 | 970 | 51.5 | 972 | 51.4 | 973 | 51.4 | 8 | 955 | 52.4 | 954 | 52.4 | 954 | 52.4 |
| 473.astar | 8 | 922 | 60.9 | 923 | 60.9 | 924 | 60.8 | 8 | 846 | 66.4 | 846 | 66.4 | 848 | 66.3 |
| 483.xalancbmk | 8 | 542 | 102 | 542 | 102 | 542 | 102 | 8 | 542 | 102 | 542 | 102 | 542 | 102 |
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
