CPU2006 license: | 9006 | Test date: | Nov-2007 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Oct-2006 |
Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 7110M |
CPU Characteristics: | 2.60 GHz, 800 MHz bus |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16x2 GB PC2-3200R, 2 rank, CL3-3-3, ECC) |
Disk Subsystem: | 1x146.5 GB SAS, 15000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap library 8.1 |

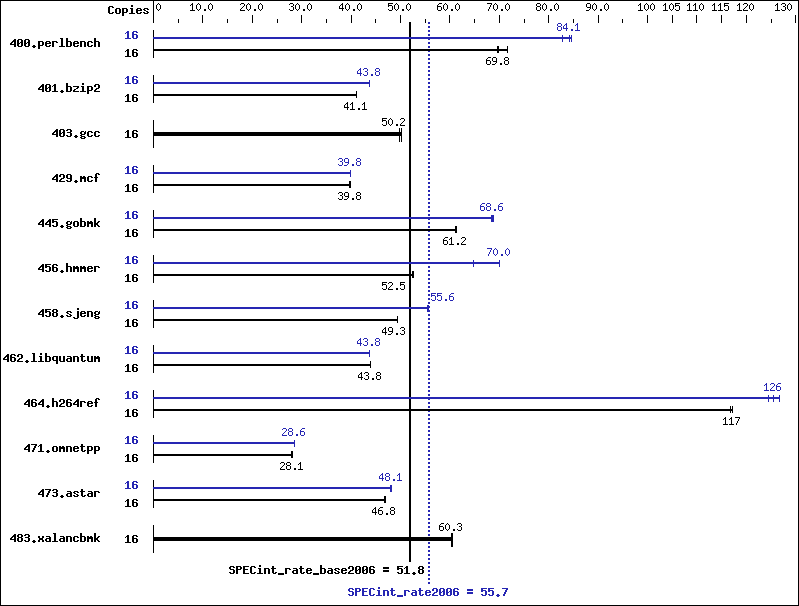

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 2181 | 71.7 | 2246 | 69.6 | 2240 | 69.8 | 16 | 1848 | 84.6 | 1890 | 82.7 | 1858 | 84.1 |
401.bzip2 | 16 | 3760 | 41.1 | 3761 | 41.0 | 3759 | 41.1 | 16 | 3526 | 43.8 | 3528 | 43.8 | 3531 | 43.7 |
403.gcc | 16 | 2581 | 49.9 | 2563 | 50.2 | 2568 | 50.2 | 16 | 2581 | 49.9 | 2563 | 50.2 | 2568 | 50.2 |
429.mcf | 16 | 3673 | 39.7 | 3667 | 39.8 | 3663 | 39.8 | 16 | 3658 | 39.9 | 3669 | 39.8 | 3667 | 39.8 |
445.gobmk | 16 | 2734 | 61.4 | 2742 | 61.2 | 2745 | 61.2 | 16 | 2446 | 68.6 | 2452 | 68.4 | 2441 | 68.7 |
456.hmmer | 16 | 2841 | 52.5 | 2845 | 52.5 | 2841 | 52.5 | 16 | 2134 | 70.0 | 2302 | 64.9 | 2132 | 70.0 |
458.sjeng | 16 | 3925 | 49.3 | 3923 | 49.4 | 3927 | 49.3 | 16 | 3482 | 55.6 | 3483 | 55.6 | 3488 | 55.5 |
462.libquantum | 16 | 7563 | 43.8 | 7563 | 43.8 | 7564 | 43.8 | 16 | 7568 | 43.8 | 7579 | 43.7 | 7574 | 43.8 |
464.h264ref | 16 | 3021 | 117 | 3032 | 117 | 3024 | 117 | 16 | 2794 | 127 | 2820 | 126 | 2846 | 124 |
471.omnetpp | 16 | 3557 | 28.1 | 3567 | 28.0 | 3557 | 28.1 | 16 | 3500 | 28.6 | 3501 | 28.6 | 3502 | 28.6 |
473.astar | 16 | 2396 | 46.9 | 2400 | 46.8 | 2399 | 46.8 | 16 | 2334 | 48.1 | 2336 | 48.1 | 2338 | 48.0 |
483.xalancbmk | 16 | 1826 | 60.4 | 1831 | 60.3 | 1831 | 60.3 | 16 | 1826 | 60.4 | 1831 | 60.3 | 1831 | 60.3 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode The Express5800/140Hf and the Express5800/140Re-4 models are electronically equivalent. The results have been measured on a Express5800/140Re-4 model.
icc -static(*) |
icpc |
(*) Indicates a compiler flag that was found in a non-compiler variable.
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xP -ipo -O3 -no-prec-div |
-xP -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icpc |
(*) Indicates a compiler flag that was found in a non-compiler variable.
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div |
403.gcc: | basepeak = yes |
429.mcf: | -xP -ipo -O3 -no-prec-div -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xP -O2 -ipo -no-prec_div -ansi-alias |
456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -no-prec-div -unroll4 |
462.libquantum: | Same as 458.sjeng |
464.h264ref: | Same as 456.hmmer |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xP -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | Same as 471.omnetpp |
483.xalancbmk: | basepeak = yes |
