CPU2006 license: | 9006 | Test date: | Nov-2007 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | May-2007 |
Tested by: | NEC Corporation | Software Availability: | Apr-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 3040 |
CPU Characteristics: | 1.86 GHz, 2 MB L2, 1066 MHz bus |
CPU MHz: | 1866 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 2 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 4 GB (4x1 GB PC2-5300E, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x80 GB SATAII, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64), Kernel 2.6.16.21-0.8-smp |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package-ID: l_cc_c_9.1.049 Intel Fortran Compiler for IA32/EM64T application, Version 9.1 - Build 20070320, Package ID: l_fc_c_9.1.045 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

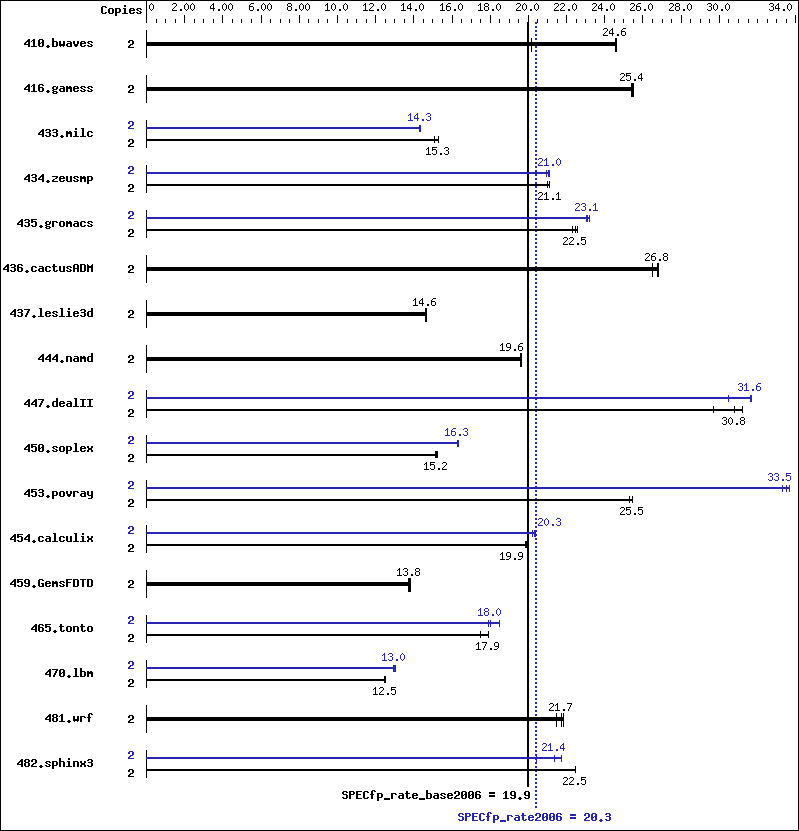

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 2 | 1347 | 20.2 | 1105 | 24.6 | 1106 | 24.6 | 2 | 1347 | 20.2 | 1105 | 24.6 | 1106 | 24.6 |
416.gamess | 2 | 1543 | 25.4 | 1539 | 25.4 | 1536 | 25.5 | 2 | 1543 | 25.4 | 1539 | 25.4 | 1536 | 25.5 |
433.milc | 2 | 1217 | 15.1 | 1200 | 15.3 | 1200 | 15.3 | 2 | 1280 | 14.3 | 1284 | 14.3 | 1282 | 14.3 |
434.zeusmp | 2 | 866 | 21.0 | 863 | 21.1 | 863 | 21.1 | 2 | 862 | 21.1 | 869 | 20.9 | 865 | 21.0 |
435.gromacs | 2 | 636 | 22.5 | 641 | 22.3 | 633 | 22.6 | 2 | 616 | 23.2 | 619 | 23.1 | 618 | 23.1 |
436.cactusADM | 2 | 901 | 26.5 | 892 | 26.8 | 892 | 26.8 | 2 | 901 | 26.5 | 892 | 26.8 | 892 | 26.8 |
437.leslie3d | 2 | 1281 | 14.7 | 1288 | 14.6 | 1287 | 14.6 | 2 | 1281 | 14.7 | 1288 | 14.6 | 1287 | 14.6 |
444.namd | 2 | 817 | 19.6 | 818 | 19.6 | 818 | 19.6 | 2 | 817 | 19.6 | 818 | 19.6 | 818 | 19.6 |
447.dealII | 2 | 743 | 30.8 | 771 | 29.7 | 733 | 31.2 | 2 | 723 | 31.6 | 751 | 30.5 | 722 | 31.7 |
450.soplex | 2 | 1104 | 15.1 | 1094 | 15.2 | 1097 | 15.2 | 2 | 1023 | 16.3 | 1024 | 16.3 | 1021 | 16.3 |
453.povray | 2 | 418 | 25.5 | 418 | 25.5 | 420 | 25.3 | 2 | 318 | 33.5 | 319 | 33.3 | 316 | 33.6 |
454.calculix | 2 | 829 | 19.9 | 830 | 19.9 | 831 | 19.9 | 2 | 817 | 20.2 | 809 | 20.4 | 811 | 20.3 |
459.GemsFDTD | 2 | 1548 | 13.7 | 1536 | 13.8 | 1540 | 13.8 | 2 | 1548 | 13.7 | 1536 | 13.8 | 1540 | 13.8 |
465.tonto | 2 | 1123 | 17.5 | 1100 | 17.9 | 1098 | 17.9 | 2 | 1092 | 18.0 | 1100 | 17.9 | 1064 | 18.5 |
470.lbm | 2 | 2209 | 12.4 | 2195 | 12.5 | 2199 | 12.5 | 2 | 2121 | 13.0 | 2120 | 13.0 | 2105 | 13.1 |
481.wrf | 2 | 1028 | 21.7 | 1024 | 21.8 | 1040 | 21.5 | 2 | 1028 | 21.7 | 1024 | 21.8 | 1040 | 21.5 |
482.sphinx3 | 2 | 1736 | 22.5 | 1735 | 22.5 | 1733 | 22.5 | 2 | 1825 | 21.4 | 1908 | 20.4 | 1792 | 21.8 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
The system bus runs at 1066 MHz All binaries were built with 64-bit Intel compiler except: 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with 32-bit Intel compiler by changing the path for include and library files.
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/9.1.049/bin/icc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib |
icpc | |
450.soplex: | /opt/intel/cc/9.1.049/bin/icpc -I/opt/intel/cc/9.1.049/include -L/opt/intel/cc/9.1.049/lib |
ifort | |
434.zeusmp: | /opt/intel/fc/9.1.045/bin/ifort -I/opt/intel/fc/9.1.045/include -L/opt/intel/fc/9.1.045/lib |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
470.lbm: | Same as 433.milc |
482.sphinx3: | -fast |
444.namd: | basepeak = yes |
447.dealII: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
450.soplex: | Same as 447.dealII |
453.povray: | Same as 447.dealII |
410.bwaves: | basepeak = yes |
416.gamess: | basepeak = yes |
434.zeusmp: | -fast |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
435.gromacs: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
436.cactusADM: | basepeak = yes |
454.calculix: | Same as 435.gromacs |
481.wrf: | basepeak = yes |
