| CPU2006 license: | 22 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

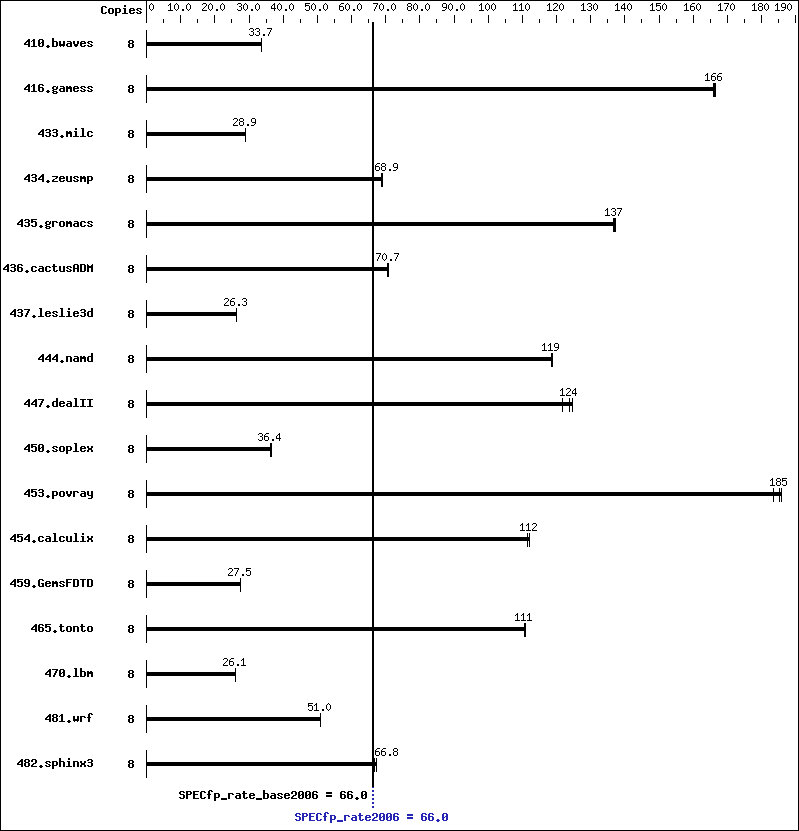

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3227 | 33.7 | 3227 | 33.7 | 3228 | 33.7 | 8 | 3227 | 33.7 | 3227 | 33.7 | 3228 | 33.7 |
| 416.gamess | 8 | 941 | 166 | 944 | 166 | 943 | 166 | 8 | 941 | 166 | 944 | 166 | 943 | 166 |
| 433.milc | 8 | 2543 | 28.9 | 2536 | 29.0 | 2540 | 28.9 | 8 | 2543 | 28.9 | 2536 | 29.0 | 2540 | 28.9 |
| 434.zeusmp | 8 | 1056 | 68.9 | 1060 | 68.7 | 1055 | 69.0 | 8 | 1056 | 68.9 | 1060 | 68.7 | 1055 | 69.0 |
| 435.gromacs | 8 | 417 | 137 | 418 | 137 | 417 | 137 | 8 | 417 | 137 | 418 | 137 | 417 | 137 |
| 436.cactusADM | 8 | 1351 | 70.8 | 1352 | 70.7 | 1353 | 70.7 | 8 | 1351 | 70.8 | 1352 | 70.7 | 1353 | 70.7 |
| 437.leslie3d | 8 | 2850 | 26.4 | 2859 | 26.3 | 2856 | 26.3 | 8 | 2850 | 26.4 | 2859 | 26.3 | 2856 | 26.3 |
| 444.namd | 8 | 541 | 119 | 540 | 119 | 541 | 119 | 8 | 541 | 119 | 540 | 119 | 541 | 119 |
| 447.dealII | 8 | 734 | 125 | 753 | 122 | 739 | 124 | 8 | 734 | 125 | 753 | 122 | 739 | 124 |
| 450.soplex | 8 | 1827 | 36.5 | 1834 | 36.4 | 1832 | 36.4 | 8 | 1827 | 36.5 | 1834 | 36.4 | 1832 | 36.4 |
| 453.povray | 8 | 229 | 186 | 230 | 185 | 232 | 183 | 8 | 229 | 186 | 230 | 185 | 232 | 183 |
| 454.calculix | 8 | 592 | 111 | 589 | 112 | 589 | 112 | 8 | 592 | 111 | 589 | 112 | 589 | 112 |
| 459.GemsFDTD | 8 | 3085 | 27.5 | 3097 | 27.4 | 3071 | 27.6 | 8 | 3085 | 27.5 | 3097 | 27.4 | 3071 | 27.6 |
| 465.tonto | 8 | 713 | 110 | 711 | 111 | 710 | 111 | 8 | 713 | 110 | 711 | 111 | 710 | 111 |
| 470.lbm | 8 | 4216 | 26.1 | 4214 | 26.1 | 4214 | 26.1 | 8 | 4216 | 26.1 | 4214 | 26.1 | 4214 | 26.1 |
| 481.wrf | 8 | 1752 | 51.0 | 1750 | 51.1 | 1755 | 50.9 | 8 | 1752 | 51.0 | 1750 | 51.1 | 1755 | 50.9 |
| 482.sphinx3 | 8 | 2335 | 66.8 | 2336 | 66.7 | 2317 | 67.3 | 8 | 2335 | 66.8 | 2336 | 66.7 | 2317 | 67.3 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
This result has been produced with binaries provided and compiled by Intel. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -fast |
Fortran benchmarks:
| -fast |
Benchmarks using both Fortran and C:
| -fast |
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | basepeak = yes |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | basepeak = yes |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
