| CPU2006 license: | 22 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Dec-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5440 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

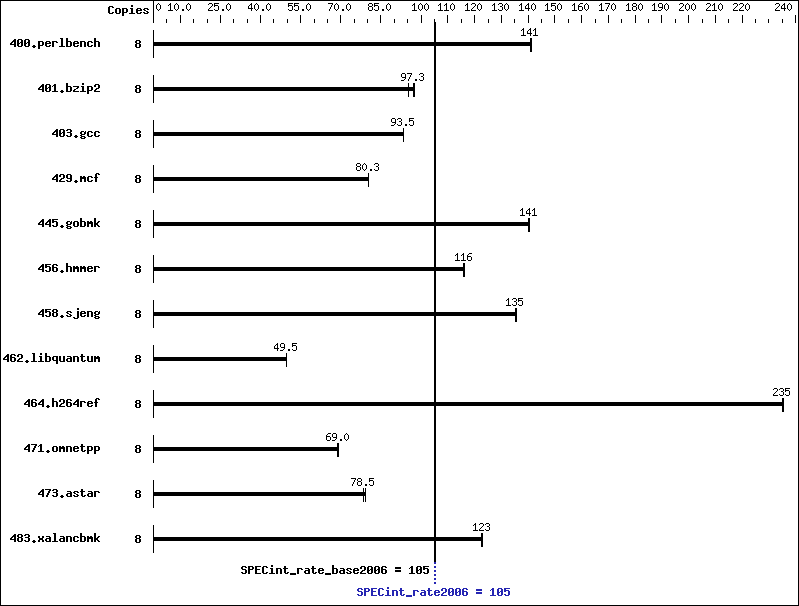

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 555 | 141 | 553 | 141 | 554 | 141 | 8 | 555 | 141 | 553 | 141 | 554 | 141 |
| 401.bzip2 | 8 | 809 | 95.4 | 794 | 97.3 | 792 | 97.5 | 8 | 809 | 95.4 | 794 | 97.3 | 792 | 97.5 |
| 403.gcc | 8 | 689 | 93.5 | 690 | 93.4 | 689 | 93.5 | 8 | 689 | 93.5 | 690 | 93.4 | 689 | 93.5 |
| 429.mcf | 8 | 906 | 80.5 | 908 | 80.3 | 908 | 80.3 | 8 | 906 | 80.5 | 908 | 80.3 | 908 | 80.3 |
| 445.gobmk | 8 | 596 | 141 | 600 | 140 | 597 | 141 | 8 | 596 | 141 | 600 | 140 | 597 | 141 |
| 456.hmmer | 8 | 644 | 116 | 643 | 116 | 643 | 116 | 8 | 644 | 116 | 643 | 116 | 643 | 116 |
| 458.sjeng | 8 | 715 | 135 | 715 | 135 | 713 | 136 | 8 | 715 | 135 | 715 | 135 | 713 | 136 |
| 462.libquantum | 8 | 3347 | 49.5 | 3347 | 49.5 | 3347 | 49.5 | 8 | 3347 | 49.5 | 3347 | 49.5 | 3347 | 49.5 |
| 464.h264ref | 8 | 752 | 235 | 753 | 235 | 753 | 235 | 8 | 752 | 235 | 753 | 235 | 753 | 235 |
| 471.omnetpp | 8 | 725 | 69.0 | 729 | 68.6 | 725 | 69.0 | 8 | 725 | 69.0 | 729 | 68.6 | 725 | 69.0 |
| 473.astar | 8 | 716 | 78.5 | 717 | 78.3 | 710 | 79.1 | 8 | 716 | 78.5 | 717 | 78.3 | 710 | 79.1 |
| 483.xalancbmk | 8 | 448 | 123 | 450 | 123 | 450 | 123 | 8 | 448 | 123 | 450 | 123 | 450 | 123 |
General Notes
This result has been produced with binaries provided and compiled by Intel. BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | basepeak = yes |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
