CPU2006 license: | 55 | Test date: | Sep-2007 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Nov-2007 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5440 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 2833 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap library V8.1 |

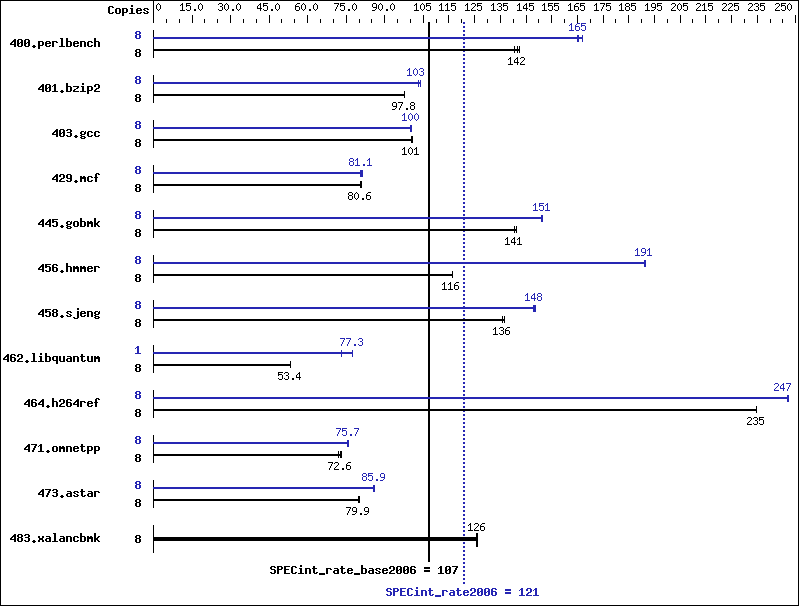

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 552 | 142 | 549 | 142 | 557 | 140 | 8 | 474 | 165 | 468 | 167 | 472 | 165 |
401.bzip2 | 8 | 789 | 97.9 | 789 | 97.8 | 789 | 97.8 | 8 | 747 | 103 | 743 | 104 | 749 | 103 |
403.gcc | 8 | 640 | 101 | 640 | 101 | 642 | 100 | 8 | 640 | 101 | 643 | 100 | 641 | 100 |
429.mcf | 8 | 901 | 81.0 | 906 | 80.6 | 906 | 80.5 | 8 | 903 | 80.8 | 899 | 81.2 | 899 | 81.1 |
445.gobmk | 8 | 598 | 140 | 597 | 141 | 594 | 141 | 8 | 556 | 151 | 554 | 151 | 555 | 151 |
456.hmmer | 8 | 642 | 116 | 642 | 116 | 642 | 116 | 8 | 390 | 191 | 391 | 191 | 390 | 191 |
458.sjeng | 8 | 712 | 136 | 713 | 136 | 709 | 137 | 8 | 652 | 149 | 652 | 148 | 654 | 148 |
462.libquantum | 8 | 3107 | 53.4 | 3106 | 53.4 | 3104 | 53.4 | 1 | 267 | 77.5 | 283 | 73.1 | 268 | 77.3 |
464.h264ref | 8 | 754 | 235 | 754 | 235 | 754 | 235 | 8 | 718 | 247 | 716 | 247 | 717 | 247 |
471.omnetpp | 8 | 689 | 72.6 | 692 | 72.2 | 684 | 73.1 | 8 | 660 | 75.7 | 658 | 76.0 | 662 | 75.5 |
473.astar | 8 | 703 | 79.9 | 704 | 79.7 | 701 | 80.1 | 8 | 655 | 85.7 | 654 | 85.9 | 652 | 86.1 |
483.xalancbmk | 8 | 438 | 126 | 437 | 126 | 438 | 126 | 8 | 438 | 126 | 437 | 126 | 438 | 126 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
