CPU2006 license: | 55 | Test date: | Oct-2007 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
Tested by: | Dell Inc. | Software Availability: | Oct-2007 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 8212 |
CPU Characteristics: | |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | None |
Other Cache: | None |
Memory: | 32 GB (16x2GB, DDR2-667 CL5 ECC Dual Rank) |
Disk Subsystem: | 1 x 250 GB SATA 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | The Portland Group (PGI) PGI pgf90 7.1-0 Fortran Compiler PGI pgcc 7.1-0 C Compiler PGI pgCC 7.1-0 C++ Compiler |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |
Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |

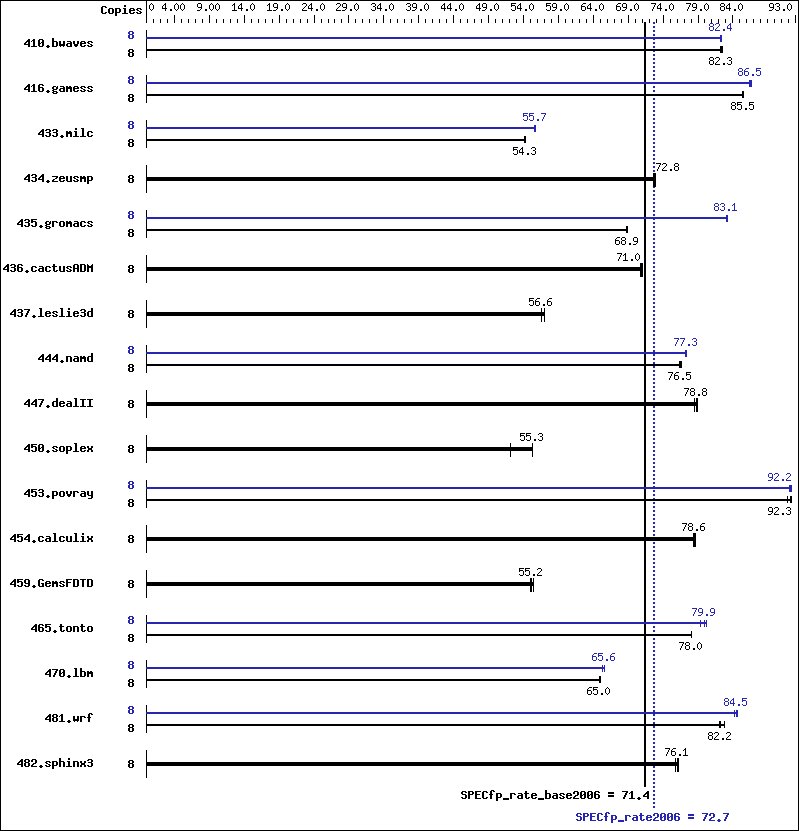

Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1319 | 82.5 | 1323 | 82.2 | 1321 | 82.3 | 8 | 1323 | 82.2 | 1320 | 82.4 | 1319 | 82.4 |
416.gamess | 8 | 1831 | 85.6 | 1834 | 85.4 | 1832 | 85.5 | 8 | 1807 | 86.7 | 1810 | 86.5 | 1814 | 86.3 |
433.milc | 8 | 1354 | 54.3 | 1358 | 54.1 | 1353 | 54.3 | 8 | 1318 | 55.7 | 1321 | 55.6 | 1319 | 55.7 |
434.zeusmp | 8 | 1000 | 72.8 | 1001 | 72.7 | 998 | 73.0 | 8 | 1000 | 72.8 | 1001 | 72.7 | 998 | 73.0 |
435.gromacs | 8 | 831 | 68.7 | 829 | 68.9 | 829 | 68.9 | 8 | 687 | 83.2 | 688 | 83.1 | 688 | 83.1 |
436.cactusADM | 8 | 1347 | 71.0 | 1352 | 70.7 | 1347 | 71.0 | 8 | 1347 | 71.0 | 1352 | 70.7 | 1347 | 71.0 |
437.leslie3d | 8 | 1320 | 57.0 | 1329 | 56.6 | 1330 | 56.6 | 8 | 1320 | 57.0 | 1329 | 56.6 | 1330 | 56.6 |
444.namd | 8 | 841 | 76.3 | 838 | 76.6 | 838 | 76.5 | 8 | 830 | 77.3 | 831 | 77.2 | 829 | 77.3 |
447.dealII | 8 | 1160 | 78.9 | 1162 | 78.8 | 1165 | 78.6 | 8 | 1160 | 78.9 | 1162 | 78.8 | 1165 | 78.6 |
450.soplex | 8 | 1280 | 52.1 | 1206 | 55.3 | 1205 | 55.4 | 8 | 1280 | 52.1 | 1206 | 55.3 | 1205 | 55.4 |
453.povray | 8 | 461 | 92.4 | 463 | 91.9 | 461 | 92.3 | 8 | 462 | 92.1 | 461 | 92.4 | 462 | 92.2 |
454.calculix | 8 | 842 | 78.4 | 840 | 78.6 | 840 | 78.6 | 8 | 842 | 78.4 | 840 | 78.6 | 840 | 78.6 |
459.GemsFDTD | 8 | 1544 | 55.0 | 1538 | 55.2 | 1530 | 55.5 | 8 | 1544 | 55.0 | 1538 | 55.2 | 1530 | 55.5 |
465.tonto | 8 | 1009 | 78.0 | 1008 | 78.1 | 1009 | 78.0 | 8 | 982 | 80.2 | 991 | 79.4 | 985 | 79.9 |
470.lbm | 8 | 1692 | 65.0 | 1693 | 64.9 | 1692 | 65.0 | 8 | 1675 | 65.6 | 1676 | 65.6 | 1683 | 65.3 |
481.wrf | 8 | 1087 | 82.2 | 1089 | 82.1 | 1079 | 82.9 | 8 | 1055 | 84.7 | 1060 | 84.3 | 1057 | 84.5 |
482.sphinx3 | 8 | 2059 | 75.7 | 2046 | 76.2 | 2049 | 76.1 | 8 | 2059 | 75.7 | 2046 | 76.2 | 2049 | 76.1 |
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2457600' was used to set environment locked pages in memory quantity 'numactl' was used to bind one copy per core, and memory to a local NUMA node Set vm/nr_hugepages=1200 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages Environment variable PGI_HUGE_PAGES set to 150
pgcc |
pgcpp |
pgf95 |
pgcc pgf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:8 --zc_eh -tp k8-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi |
-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi |
-w |
-w |
-w |
-w |
pgcc |
pgcpp |
pgf95 |
pgcc pgf95 |
Same as Base Portability Flags
433.milc: | -Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fast -O4 -Mdse -Mfprelaxed -Msmartalloc=huge:8 -tp k8-64 -Bstatic_pgi |
470.lbm: | -fast -Mfprelaxed -Msmartalloc=huge:8 -Mipa=fast -Mipa=noarg -tp k8-64 -Bstatic_pgi |
482.sphinx3: | basepeak = yes |
444.namd: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fast -O4 -Mfprelaxed -Msmartalloc=huge:32 --zc_eh -tp k8-64 -Bstatic_pgi |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -fast -Mfprelaxed -Msmartalloc=huge:32 -Mipa=fast -Mipa=inline --zc_eh -tp k8-64 -Bstatic_pgi |
410.bwaves: | -fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc -tp k8-64 -Bstatic_pgi |
416.gamess: | -fast -Mipa=fast -Mipa=inline -Mfprelaxed -Mvect=noaltcode -Msmartalloc=huge:64 -tp k8-64 -Bstatic_pgi |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -fast -Mfprelaxed -Msmartalloc=huge:128 -Mipa=fast -Mipa=inline -Mvect=noaltcode -tp k8-64 -Bstatic_pgi |
435.gromacs: | -fast -O4 -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:16 -tp k8-64 -Mfpapprox=rsqrt -Bstatic_pgi |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -fast -Mfprelaxed -Msmartalloc=huge:32 -Mvect=noaltcode -tp k8-64 -Bstatic_pgi |
