| CPU2006 license: | 001176 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Nov-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5472 |
| CPU Characteristics: | Quad Core, 3.00GHz |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8 X 1GB ECC PC2-6400, CL5, FBDIMM) |
| Disk Subsystem: | Westren Digital WD5000YS 500GB SATA2, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, kernel 2.6.16.46-0.12-default |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

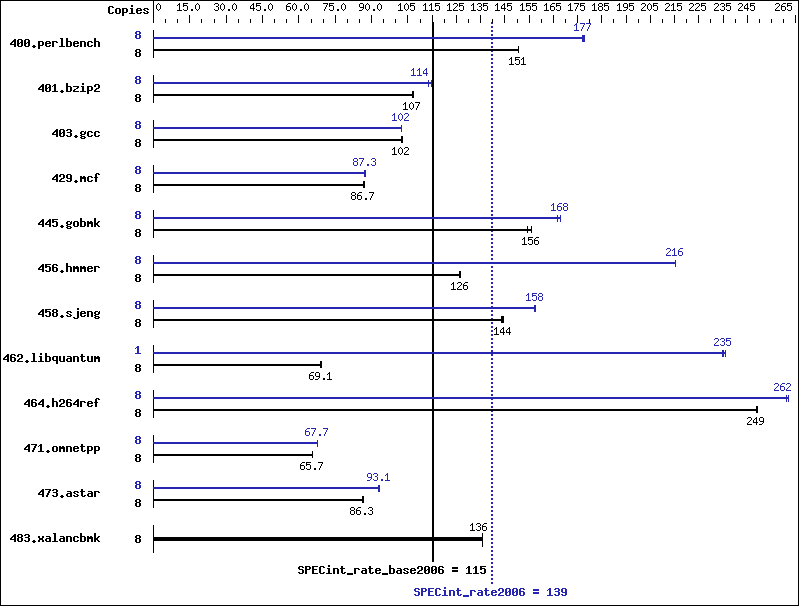

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 519 | 151 | 519 | 151 | 519 | 151 | 8 | 440 | 178 | 441 | 177 | 442 | 177 |
| 401.bzip2 | 8 | 723 | 107 | 721 | 107 | 721 | 107 | 8 | 681 | 113 | 674 | 115 | 680 | 114 |
| 403.gcc | 8 | 630 | 102 | 627 | 103 | 630 | 102 | 8 | 629 | 102 | 629 | 102 | 628 | 102 |
| 429.mcf | 8 | 844 | 86.5 | 842 | 86.7 | 839 | 86.9 | 8 | 835 | 87.4 | 836 | 87.3 | 836 | 87.2 |
| 445.gobmk | 8 | 543 | 154 | 538 | 156 | 538 | 156 | 8 | 503 | 167 | 500 | 168 | 500 | 168 |
| 456.hmmer | 8 | 591 | 126 | 590 | 126 | 590 | 126 | 8 | 347 | 215 | 346 | 216 | 346 | 216 |
| 458.sjeng | 8 | 670 | 144 | 673 | 144 | 672 | 144 | 8 | 616 | 157 | 614 | 158 | 614 | 158 |
| 462.libquantum | 8 | 2397 | 69.2 | 2401 | 69.0 | 2397 | 69.1 | 1 | 88.1 | 235 | 87.7 | 236 | 88.2 | 235 |
| 464.h264ref | 8 | 711 | 249 | 711 | 249 | 712 | 249 | 8 | 676 | 262 | 677 | 261 | 676 | 262 |
| 471.omnetpp | 8 | 762 | 65.6 | 761 | 65.7 | 761 | 65.7 | 8 | 738 | 67.7 | 737 | 67.8 | 738 | 67.7 |
| 473.astar | 8 | 651 | 86.2 | 647 | 86.8 | 651 | 86.3 | 8 | 604 | 92.9 | 603 | 93.1 | 603 | 93.1 |
| 483.xalancbmk | 8 | 407 | 136 | 406 | 136 | 407 | 136 | 8 | 407 | 136 | 406 | 136 | 407 | 136 |
General Notes
Tested systems can be used with CSE-743TQ-865 case, To ensure system stability, a 550W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5400/X7DWA-N.cfm The system bus runs at 1600 MHz taskset was used to bind processes to cores except for 462.libquantum at peak
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
