SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 (Intel Xeon E5335)

CPU2006 license: 11 Test date: Aug-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Nov-2007

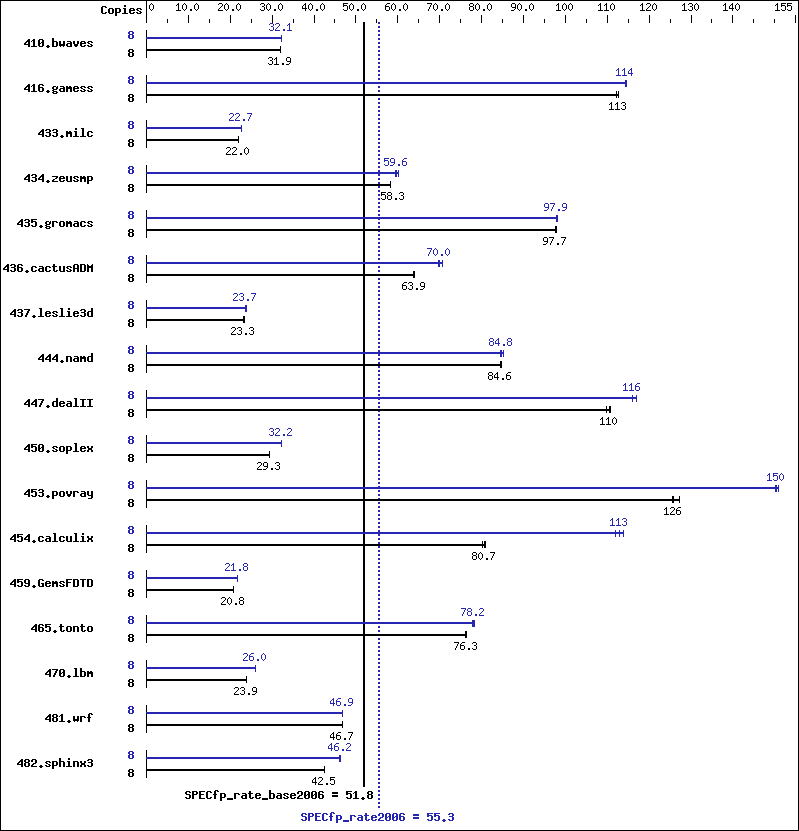

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: 1333MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-5300F ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: Memory and I/O Expansion Unit (P/N 42C1600)
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: Intel C++ and Fortran Compiler for Linux version
10.1
Build 20070725
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3407 31.9 3407 31.9 3405 31.9 8 3383 32.1 3382 32.1 3383 32.1
416.gamess 8 1390 113   1390 113   1395 112   8 1369 114   1369 114   1368 115
433.milc 8 3340 22.0 3339 22.0 3337 22.0 8 3234 22.7 3236 22.7 3233 22.7
434.zeusmp 8 1250 58.3 1250 58.3 1251 58.2 8 1211 60.1 1223 59.5 1221 59.6
435.gromacs 8 585 97.6 584 97.8 585 97.7 8 582 98.2 583 97.9 584 97.9
436.cactusADM 8 1498 63.8 1496 63.9 1494 64.0 8 1352 70.7 1366 70.0 1369 69.8
437.leslie3d 8 3225 23.3 3233 23.3 3241 23.2 8 3175 23.7 3161 23.8 3169 23.7
444.namd 8 757 84.7 758 84.6 758 84.6 8 756 84.8 754 85.1 759 84.5
447.dealII 8 834 110   828 110   827 111   8 788 116   789 116   782 117
450.soplex 8 2274 29.3 2274 29.3 2274 29.3 8 2074 32.2 2073 32.2 2072 32.2
453.povray 8 335 127   339 126   338 126   8 284 150   282 151   283 150
454.calculix 8 823 80.2 818 80.7 816 80.9 8 585 113   580 114   590 112
459.GemsFDTD 8 4075 20.8 4070 20.9 4072 20.8 8 3893 21.8 3889 21.8 3890 21.8
465.tonto 8 1031 76.3 1032 76.3 1031 76.4 8 1005 78.3 1007 78.2 1012 77.8
470.lbm 8 4604 23.9 4604 23.9 4606 23.9 8 4225 26.0 4225 26.0 4225 26.0
481.wrf 8 1912 46.7 1914 46.7 1913 46.7 8 1906 46.9 1909 46.8 1906 46.9
482.sphinx3 8 3663 42.6 3668 42.5 3669 42.5 8 3371 46.2 3376 46.2 3374 46.2

General Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.22.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.22.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:37:52 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 13 November 2007.
