SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL360 G5
(3.16 GHz, Intel Xeon processor X5460)

CPU2006 license: 3 Test date: Oct-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2007

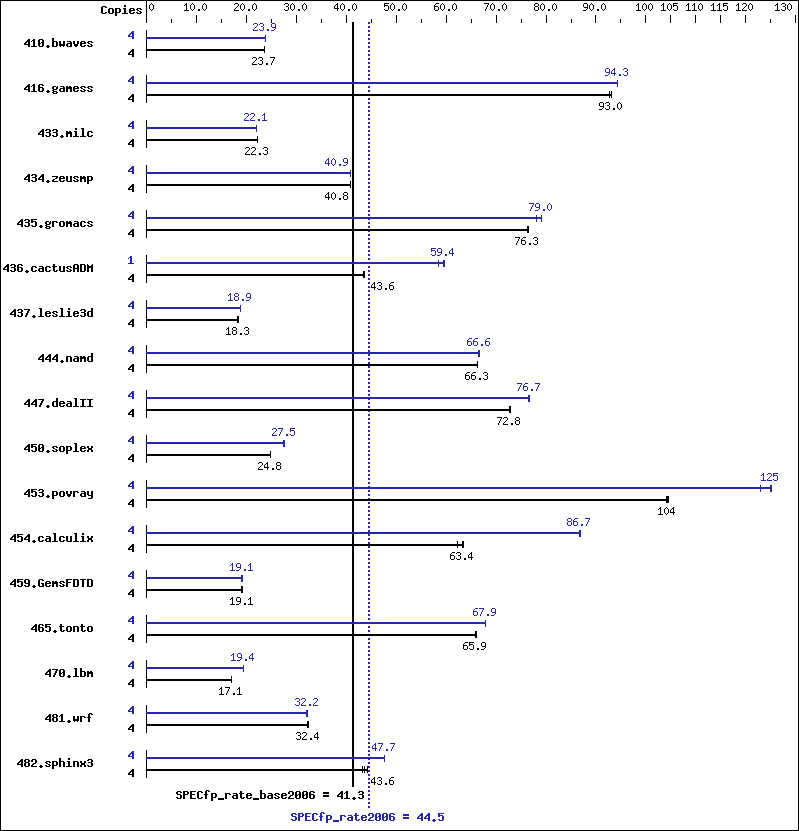

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics: 3.16 GHz, 2x6 MB L2 shared, 1333 MHz system bus
CPU MHz: 3166
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1
kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: Yes
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils-2.17.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2292 23.7 2295 23.7 2294 23.7 4 2276 23.9 2276 23.9 2276 23.9
416.gamess 4 842 93.0 845 92.7 842 93.0 4 831 94.3 830 94.4 830 94.3
433.milc 4 1650 22.3 1652 22.2 1650 22.3 4 1670 22.0 1665 22.1 1661 22.1
434.zeusmp 4 891 40.9 892 40.8 892 40.8 4 890 40.9 892 40.8 891 40.9
435.gromacs 4 374 76.3 374 76.4 374 76.3 4 361 79.0 361 79.0 365 78.2
436.cactusADM 4 1100 43.5 1097 43.6 1097 43.6 1 200 59.6 201 59.4 204 58.5
437.leslie3d 4 2052 18.3 2058 18.3 2039 18.4 4 1989 18.9 1990 18.9 1992 18.9
444.namd 4 485 66.2 484 66.3 484 66.3 4 482 66.6 483 66.5 481 66.6
447.dealII 4 630 72.6 628 72.8 629 72.8 4 597 76.7 598 76.5 597 76.7
450.soplex 4 1345 24.8 1346 24.8 1344 24.8 4 1211 27.5 1213 27.5 1211 27.5
453.povray 4 204 104   204 105   204 104   4 170 125   173 123   170 125
454.calculix 4 530 62.3 521 63.4 521 63.4 4 380 86.8 381 86.7 381 86.7
459.GemsFDTD 4 2218 19.1 2216 19.2 2241 18.9 4 2221 19.1 2219 19.1 2212 19.2
465.tonto 4 598 65.8 597 65.9 596 66.0 4 579 68.0 580 67.9 580 67.9
470.lbm 4 3213 17.1 3211 17.1 3211 17.1 4 2828 19.4 2829 19.4 2828 19.4
481.wrf 4 1379 32.4 1382 32.3 1378 32.4 4 1386 32.2 1395 32.0 1385 32.3
482.sphinx3 4 1790 43.6 1762 44.3 1802 43.3 4 1635 47.7 1636 47.7 1637 47.6

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 200M

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode
  Adjacent Sector Prefetch Disabled
  Hardware Prefetcher Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/HP-Intel-ic10.1-linux-fp-flags.20090714.01.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:38:22 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 13 November 2007.
