| CPU2006 license: | 22 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jul-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1067 MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | Seagate ST973451SS (SAS, 73GB, 15000rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 SP1 (x86_64), Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Multiuser, Runlevel 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Smart Heap Library, Version 8.1 binutils-2.17.tar.gz, Version 2.17 |

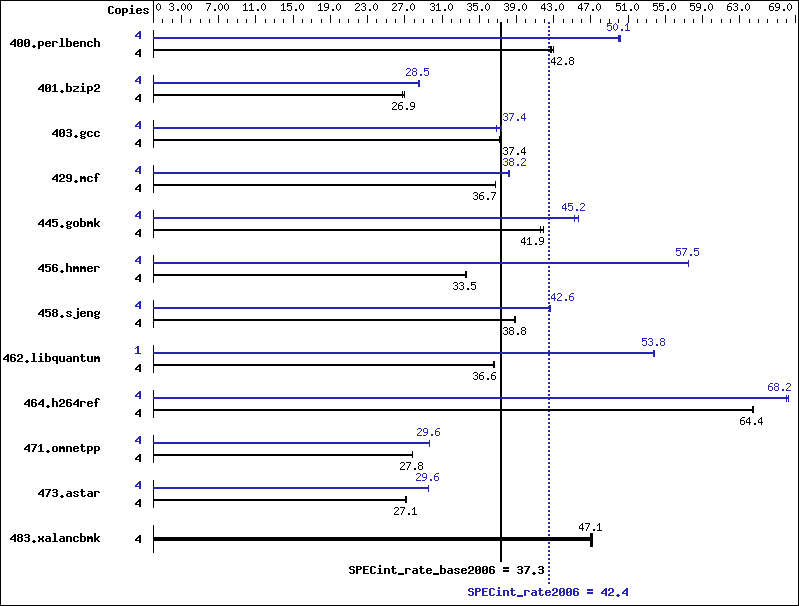

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 915 | 42.7 | 913 | 42.8 | 909 | 43.0 | 4 | 781 | 50.1 | 783 | 49.9 | 778 | 50.2 |
| 401.bzip2 | 4 | 1434 | 26.9 | 1432 | 27.0 | 1440 | 26.8 | 4 | 1352 | 28.6 | 1355 | 28.5 | 1358 | 28.4 |
| 403.gcc | 4 | 862 | 37.4 | 865 | 37.2 | 861 | 37.4 | 4 | 861 | 37.4 | 861 | 37.4 | 873 | 36.9 |
| 429.mcf | 4 | 994 | 36.7 | 994 | 36.7 | 993 | 36.7 | 4 | 956 | 38.1 | 956 | 38.2 | 955 | 38.2 |
| 445.gobmk | 4 | 1001 | 41.9 | 1009 | 41.6 | 1001 | 41.9 | 4 | 918 | 45.7 | 927 | 45.2 | 928 | 45.2 |
| 456.hmmer | 4 | 1113 | 33.5 | 1111 | 33.6 | 1112 | 33.5 | 4 | 649 | 57.5 | 649 | 57.5 | 649 | 57.5 |
| 458.sjeng | 4 | 1247 | 38.8 | 1244 | 38.9 | 1248 | 38.8 | 4 | 1136 | 42.6 | 1135 | 42.6 | 1137 | 42.6 |
| 462.libquantum | 4 | 2265 | 36.6 | 2269 | 36.5 | 2265 | 36.6 | 1 | 385 | 53.8 | 386 | 53.7 | 385 | 53.8 |
| 464.h264ref | 4 | 1373 | 64.5 | 1375 | 64.4 | 1375 | 64.4 | 4 | 1297 | 68.3 | 1302 | 68.0 | 1298 | 68.2 |
| 471.omnetpp | 4 | 897 | 27.9 | 898 | 27.8 | 899 | 27.8 | 4 | 844 | 29.6 | 843 | 29.6 | 842 | 29.7 |
| 473.astar | 4 | 1032 | 27.2 | 1035 | 27.1 | 1037 | 27.1 | 4 | 950 | 29.6 | 950 | 29.6 | 950 | 29.6 |
| 483.xalancbmk | 4 | 586 | 47.1 | 588 | 46.9 | 585 | 47.2 | 4 | 586 | 47.1 | 588 | 46.9 | 585 | 47.2 |
General Notes
This result has been produced with binaries provided and compiled by Intel. All binaries were built with 32-bit Intel compiler except: 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
