SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 6850 (Intel Xeon 7140M, 3.40 GHz)

CPU2006 license: 55 Test date: Oct-2007
Test sponsor: Dell Inc. Hardware Availability: Aug-2006
Tested by: Dell Inc. Software Availability: Nov-2007

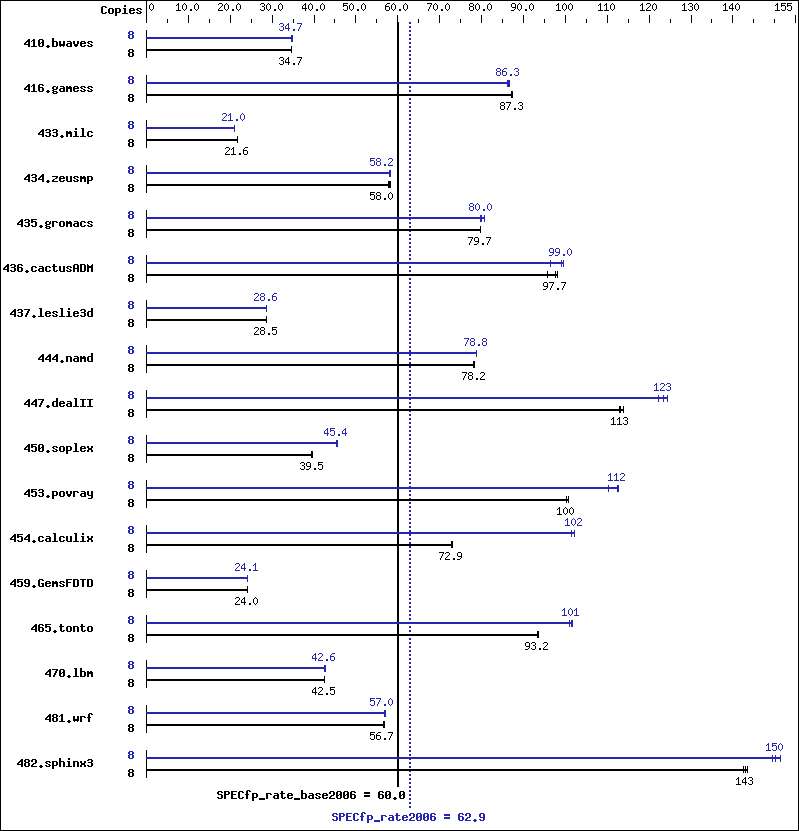

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7140M
CPU Characteristics: 800 MHz system bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (16 x 1 GB ECC 400 MHz DDR2 SDRAM)
Disk Subsystem: 2 x 36 GB SCSI 15k RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10 SP1
Compiler: Intel C++ and Fortran Compiler for Linux32 and
Linux64 version 10.1
Build 20070725
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3138 34.6 3134 34.7 3136 34.7 8 3132 34.7 3131 34.7 3129 34.7
416.gamess 8 1792 87.4 1793 87.3 1795 87.3 8 1819 86.1 1814 86.3 1808 86.6
433.milc 8 3395 21.6 3396 21.6 3397 21.6 8 3503 21.0 3506 20.9 3502 21.0
434.zeusmp 8 1252 58.2 1259 57.8 1255 58.0 8 1255 58.0 1251 58.2 1248 58.3
435.gromacs 8 716 79.8 717 79.7 717 79.6 8 708 80.6 716 79.8 714 80.0
436.cactusADM 8 998 95.8 973 98.2 978 97.7 8 961 99.5 990 96.5 966 99.0
437.leslie3d 8 2626 28.6 2635 28.5 2635 28.5 8 2626 28.6 2627 28.6 2626 28.6
444.namd 8 821 78.1 820 78.2 821 78.2 8 814 78.9 814 78.8 815 78.7
447.dealII 8 804 114   809 113   810 113   8 736 124   742 123   749 122
450.soplex 8 1681 39.7 1690 39.5 1688 39.5 8 1469 45.4 1466 45.5 1469 45.4
453.povray 8 425 100   423 101   424 100   8 378 113   379 112   386 110
454.calculix 8 906 72.8 906 72.9 904 73.0 8 646 102   650 102   646 102
459.GemsFDTD 8 3534 24.0 3532 24.0 3531 24.0 8 3533 24.0 3529 24.1 3529 24.1
465.tonto 8 842 93.5 844 93.2 844 93.2 8 777 101   775 102   780 101
470.lbm 8 2585 42.5 2586 42.5 2591 42.4 8 2578 42.6 2581 42.6 2581 42.6
481.wrf 8 1578 56.6 1575 56.7 1572 56.8 8 1567 57.0 1567 57.0 1573 56.8
482.sphinx3 8 1093 143   1089 143   1086 144   8 1030 151   1043 150   1038 150

Operating System Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
'/usr/bin/taskset' used to bind processes to CPUs

Platform Notes

BIOS Settings:
Logical Processor = Disabled (default Enabled)

General Notes

This result was measured on the Dell PowerEdge 6800.
The PowerEdge 6800 and PowerEdge 6850 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -static

C++ benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -static

Fortran benchmarks:

 -xP   -ipo   -O3   -no-prec-div   -static

Benchmarks using both Fortran and C:

 -xP   -ipo   -O3   -no-prec-div   -static

Peak Compiler Invocation

C benchmarks (except as noted below):

 /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/icpc   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/bin/ifort   -L/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/lib   -I/home/cmplr/usr3/alrahate/compilers/ic10.1mainline/20070725/Linux32/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -xP   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xP   -ipo   -O3   -no-prec-div   -static   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -xP   -ipo   -O3   -no-prec-div   -static   -unroll2   -prefetch   -auto-ilp32
454.calculix:  -xP   -ipo   -O3   -no-prec-div   -static   -unroll-aggressive   -auto-ilp32
481.wrf:  -xP   -ipo   -O3   -no-prec-div   -static   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.25.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-FP-intel64-linux-flags.20090714.25.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:06:57 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 1 November 2007.
