SPEC® CINT2006 Result

Hewlett-Packard Company

HP Integrity rx3600 (1.66GHz/18MB Dual-Core Intel
Itanium)

SPECint®2006 = 16.8

SPECint_base2006 = 15.6

CPU2006 license:	03	Test date:	Sep-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Nov-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2007

Hardware
CPU Name:	Dual-Core Intel Itanium 9140M
CPU Characteristics:	1.66GHz/18MB, 667MHz FSB
CPU MHz:	1666
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1-2 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	9 MB I+D on chip per core
Other Cache:	None
Memory:	16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier)
Disk Subsystem:	73GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	HPUX11i-MCOE B.11.31 (LR)
Compiler:	HP C/aC++ Developer's Bundle C.11.31.03 HP Fortran90 Compiler B.11.31.03
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill Smartheap 8.1

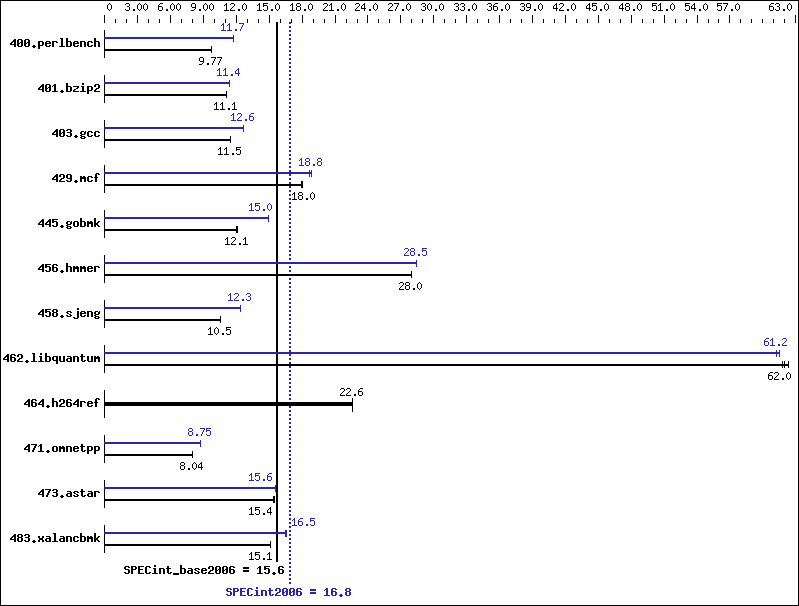

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	1000	9.77	1001	9.76	1000	9.77	835	11.7	835	11.7	835	11.7
401.bzip2	870	11.1	871	11.1	871	11.1	847	11.4	847	11.4	848	11.4
403.gcc	699	11.5	699	11.5	699	11.5	637	12.6	637	12.6	637	12.6
429.mcf	507	18.0	508	17.9	506	18.0	488	18.7	484	18.8	483	18.9
445.gobmk	870	12.1	870	12.1	870	12.1	701	15.0	701	15.0	701	15.0
456.hmmer	333	28.0	333	28.0	333	28.0	328	28.4	328	28.5	328	28.5
458.sjeng	1148	10.5	1148	10.5	1148	10.5	980	12.3	980	12.3	980	12.3
462.libquantum	332	62.3	334	62.0	335	61.8	338	61.2	338	61.2	337	61.5
464.h264ref	980	22.6	980	22.6	980	22.6	980	22.6	980	22.6	980	22.6
471.omnetpp	778	8.03	777	8.04	777	8.04	715	8.74	714	8.75	715	8.75
473.astar	455	15.4	455	15.4	455	15.4	452	15.5	451	15.6	451	15.6
483.xalancbmk	456	15.1	456	15.1	455	15.2	417	16.5	418	16.5	417	16.6

Operating System Notes

   The system had the September 2007 HP-UX 11i v3 Mission Critical
   Operating Environment (MCOE) and compilers installed, along with
   the following patches:

   PHSS_36349  linker + fdp cumulative patch
   PHSS_36351  Math Library Cumulative Patch
   PHSS_36352  Integrity Unwind Library
   PHSS_36350  aC++ Runtime (A.06.15)
   PHSS_36354  assembler patch

   The following kernel tunables were set, in addition to the defaults
   set by the Mission Critical OE:

   maxdsiz=3221225472
   maxssiz=401604608
   maxrsessiz=41943040

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

 The setboot command was used to disable hyperthreading.

Base Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N

C++ benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N
401.bzip2:	Same as 400.perlbench
403.gcc:	Same as 400.perlbench
429.mcf:	Same as 400.perlbench
445.gobmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct
456.hmmer:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M
458.sjeng:	Same as 445.gobmk
462.libquantum:	Same as 456.hmmer
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a
473.astar:	+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a
483.xalancbmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /opt/smartheap/SmartHeap_8.1/lib/libsmartheapC.a /opt/smartheap/SmartHeap_8.1/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.xml.
