SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx2660 (1.66GHz/18MB Dual-Core Intel
Itanium)

SPECfp®2006 = 20.4

CPU2006 license: 03 Test date: Sep-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2007
Tested by: Hewlett-Packard Company Software Availability: Sep-2007

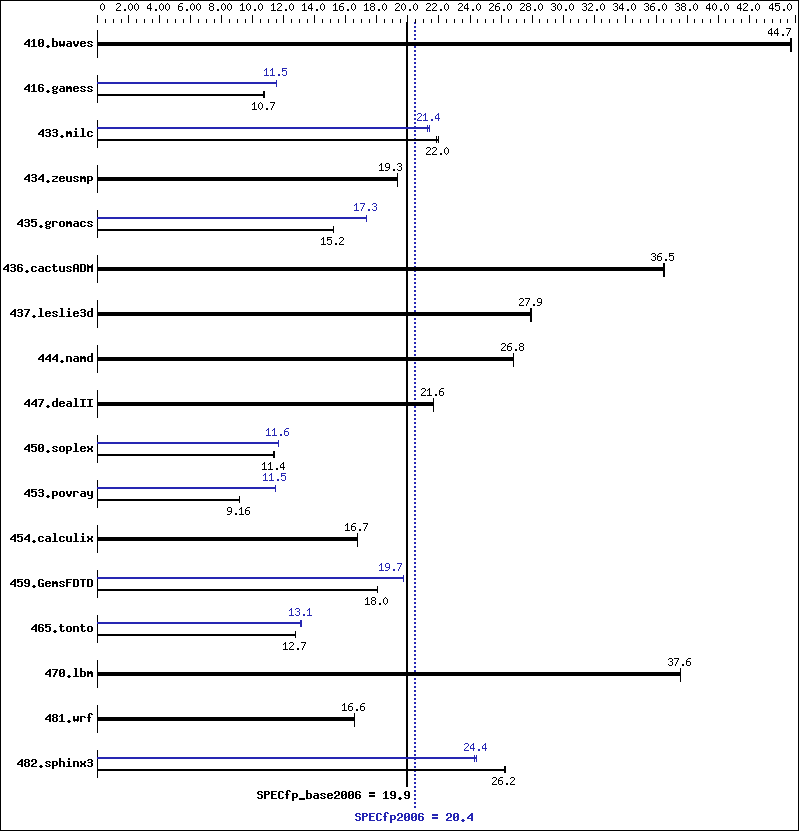

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9140M
CPU Characteristics: 1.66GHz/18MB, 667MHz FSB
CPU MHz: 1666
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 16 GB (8x2GB DIMMs)
Disk Subsystem: 73GB 10K RPM SAS
Other Hardware: None
Software
Operating System: HPUX11i-MCOE B.11.31 (LR)
Compiler: HP C/aC++ Developer's Bundle C.11.31.03
HP Fortran90 Compiler B.11.31.03
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill Smartheap 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 304 44.7  304 44.7  304 44.7  304 44.7 304 44.7 304 44.7
416.gamess 1826 10.7  1826 10.7  1827 10.7  1700 11.5 1701 11.5 1701 11.5
433.milc 420 21.8  418 22.0  418 22.0  429 21.4 430 21.4 432 21.3
434.zeusmp 471 19.3  471 19.3  471 19.3  471 19.3 471 19.3 471 19.3
435.gromacs 470 15.2  470 15.2  471 15.2  412 17.3 412 17.4 412 17.3
436.cactusADM 327 36.5  328 36.5  328 36.5  327 36.5 328 36.5 328 36.5
437.leslie3d 337 27.9  336 28.0  336 27.9  337 27.9 336 28.0 336 27.9
444.namd 299 26.8  299 26.8  299 26.8  299 26.8 299 26.8 299 26.8
447.dealII 529 21.6  528 21.6  529 21.6  529 21.6 528 21.6 529 21.6
450.soplex 734 11.4  734 11.4  733 11.4  717 11.6 717 11.6 717 11.6
453.povray 580 9.16 581 9.16 581 9.16 463 11.5 463 11.5 463 11.5
454.calculix 493 16.7  493 16.7  493 16.7  493 16.7 493 16.7 493 16.7
459.GemsFDTD 588 18.0  588 18.1  588 18.0  539 19.7 538 19.7 538 19.7
465.tonto 772 12.7  772 12.7  772 12.7  750 13.1 751 13.1 751 13.1
470.lbm 366 37.5  366 37.6  365 37.6  366 37.5 366 37.6 365 37.6
481.wrf 675 16.6  676 16.5  675 16.6  675 16.6 676 16.5 675 16.6
482.sphinx3 742 26.3  743 26.2  743 26.2  802 24.3 798 24.4 799 24.4

Operating System Notes

   The system had the September 2007 HP-UX 11i v3 Mission Critical
   Operating Environment (MCOE) and compilers installed, along with
   the following patches:

   PHSS_36349  linker + fdp cumulative patch
   PHSS_36351  Math Library Cumulative Patch
   PHSS_36352  Integrity Unwind Library
   PHSS_36350  aC++ Runtime (A.06.15)
   PHSS_36354  assembler patch

   The following kernel tunables were set, in addition to the defaults
   set by the Mission Critical OE:

   maxdsiz=3221225472
   maxssiz=401604608
   maxrsessiz=41943040

Platform Notes

 The "cpuconfig" EFI command was used prior to booting
   to deconfigure processors.

 Although two cores were enabled during testing,
   the SPEC CPU2006 benchmarks used only one core.

 The setboot command was used to disable hyperthreading.

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Base Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
481.wrf:  -DNOUNDERSCORE   +noppu

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Fortran benchmarks:

 +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Benchmarks using both Fortran and C:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
481.wrf:  -DNOUNDERSCORE   +noppu

Peak Optimization Flags

C benchmarks:

433.milc:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
470.lbm:  basepeak = yes
482.sphinx3:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
453.povray:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
465.tonto:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.07.xml.
