| CPU2006 license: | 13 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Oct-2007 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7330 |
| CPU Characteristics: | Quad Core, 2.40 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (16 * 1GB Samsung DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | Seagate, SAS, 73GB, 10Krpm, 1 disk only |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit SUSE LINUX Enterprise Server 10 SP1 RC1, Kernel linux-cbgm 2.6.16.43-0.5-smp for x86_64 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 Version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

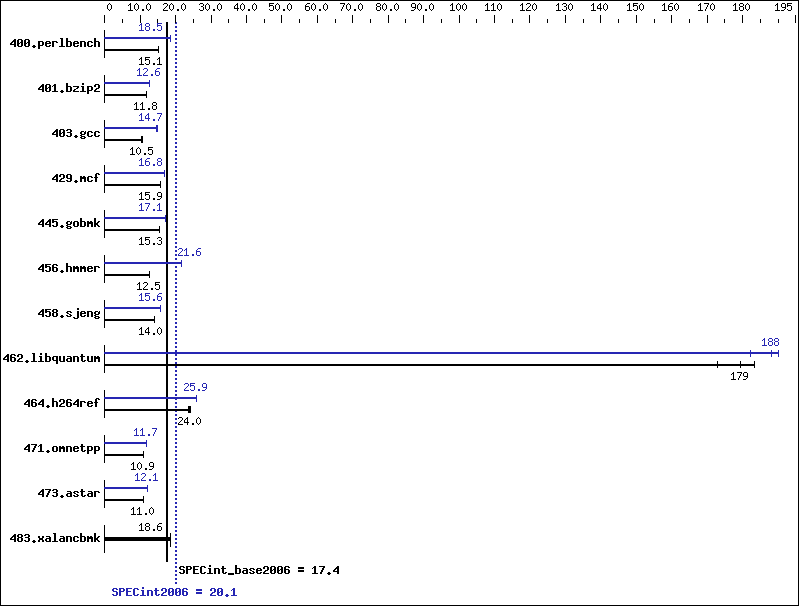

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 650 | 15.0 | 648 | 15.1 | 647 | 15.1 | 525 | 18.6 | 529 | 18.5 | 527 | 18.5 |
| 401.bzip2 | 819 | 11.8 | 820 | 11.8 | 820 | 11.8 | 762 | 12.7 | 767 | 12.6 | 765 | 12.6 |
| 403.gcc | 765 | 10.5 | 768 | 10.5 | 765 | 10.5 | 546 | 14.7 | 549 | 14.7 | 546 | 14.8 |
| 429.mcf | 575 | 15.9 | 575 | 15.9 | 576 | 15.8 | 543 | 16.8 | 542 | 16.8 | 545 | 16.7 |
| 445.gobmk | 685 | 15.3 | 685 | 15.3 | 685 | 15.3 | 615 | 17.1 | 615 | 17.1 | 615 | 17.1 |
| 456.hmmer | 745 | 12.5 | 745 | 12.5 | 745 | 12.5 | 431 | 21.7 | 432 | 21.6 | 431 | 21.6 |
| 458.sjeng | 866 | 14.0 | 862 | 14.0 | 865 | 14.0 | 775 | 15.6 | 774 | 15.6 | 773 | 15.7 |
| 462.libquantum | 113 | 183 | 116 | 179 | 120 | 173 | 110 | 188 | 114 | 182 | 109 | 190 |
| 464.h264ref | 921 | 24.0 | 933 | 23.7 | 911 | 24.3 | 851 | 26.0 | 853 | 25.9 | 853 | 25.9 |
| 471.omnetpp | 571 | 10.9 | 571 | 10.9 | 571 | 10.9 | 534 | 11.7 | 535 | 11.7 | 534 | 11.7 |
| 473.astar | 639 | 11.0 | 638 | 11.0 | 637 | 11.0 | 582 | 12.1 | 582 | 12.1 | 584 | 12.0 |
| 483.xalancbmk | 370 | 18.6 | 371 | 18.6 | 371 | 18.6 | 370 | 18.6 | 371 | 18.6 | 371 | 18.6 |
General Notes
Bios settings: Hardware Prefetcher: Disabled Adjacent Sector Prefetch: Disabled High Bandwidth Option: Disabled All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
