SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 6950 (AMD Opteron 8220, 2.80 GHz)

SPECint®_rate2006 = 102

CPU2006 license: 55 Test date: Sep-2007
Test sponsor: Dell Inc. Hardware Availability: Dec-2006
Tested by: Dell Inc. Software Availability: Oct-2007

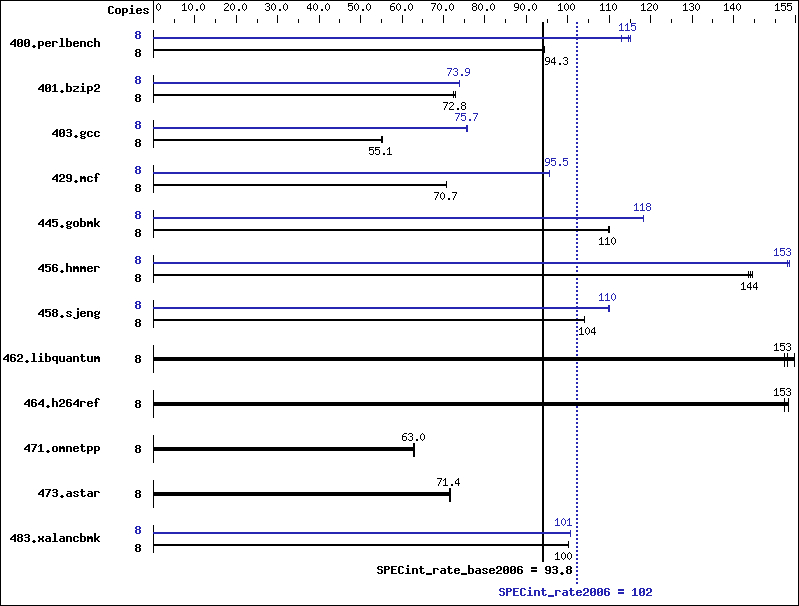

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8220
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16x2GB, DDR2-667 CL5 ECC Dual Rank)
Disk Subsystem: 1 x 250 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10
Compiler: The Portland Group (PGI)
PGI pgcc 7.1-0 C Compiler
PGI pgCC 7.1-0 C++ Compiler
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 828 94.3 829 94.3 827 94.5 8 693 113   681 115   679 115
401.bzip2 8 1059 72.9 1060 72.8 1065 72.5 8 1047 73.7 1045 73.9 1045 73.9
403.gcc 8 1165 55.3 1168 55.1 1172 54.9 8 849 75.8 854 75.4 850 75.7
429.mcf 8 1031 70.7 1031 70.7 1033 70.7 8 764 95.5 764 95.5 764 95.5
445.gobmk 8 763 110   765 110   764 110   8 710 118   710 118   710 118
456.hmmer 8 518 144   516 145   520 143   8 487 153   488 153   488 153
458.sjeng 8 931 104   930 104   932 104   8 880 110   881 110   881 110
462.libquantum 8 1089 152   1084 153   1072 155   8 1089 152   1084 153   1072 155
464.h264ref 8 1162 152   1155 153   1155 153   8 1162 152   1155 153   1155 153
471.omnetpp 8 794 63.0 794 63.0 795 62.9 8 794 63.0 794 63.0 795 62.9
473.astar 8 785 71.6 786 71.4 787 71.3 8 785 71.6 786 71.4 787 71.3
483.xalancbmk 8 551 100   551 100   551 100   8 548 101   548 101   549 101

General Notes

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 'numactl' was used to bind one copy per core, and memory to a local NUMA node
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 Environment variable PGI_HUGE_PAGES set to 150

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mfprelaxed   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   --zc_eh   -tp k8-32   -Bstatic_pgi   -lsmartheap

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w   -L/proj/qa/smartheap/SmartHeap_8/lib

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=inline(pass 2)   -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:8   -Mnounroll   -tp k8-64   -Bstatic_pgi
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:64   -tp k8-64   -Bstatic_pgi
403.gcc:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:32   -Mipa=fast   -Mipa=inline   -tp k8-32   -Bstatic_pgi
429.mcf:  -fastsse   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge:16   -tp k8-32   -Bstatic_pgi
445.gobmk:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -fast   -O4   -Msmartalloc=huge:32   -Mfprelaxed   -Mnovect   -tp k8-64   -Bstatic_pgi
456.hmmer:  -fast   -Msmartalloc=huge:32   -Mfprelaxed   -Msafeptr   -Mipa=const   -Mipa=ptr   -Mipa=arg   -tp k8-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fast   -Msmartalloc=huge:32   -Mfprelaxed   -tp k8-64   -Bstatic_pgi
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  basepeak = yes
483.xalancbmk:  -fastsse   -O4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc   --zc_eh   -tp k8-32   -Bstatic_pgi   -lsmartheap

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w   -L/proj/qa/smartheap/SmartHeap_8/lib

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi710_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi710_flags.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 14:49:21 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 16 October 2007.
