| CPU2006 license: | 3388 | Test date: | Sep-2007 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Aug-2007 |
| Tested by: | ACTION S.A. | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | ST936701SS 36GB SAS 10Krpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 2003 Server Enterprise Edition Service Pack 1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 |

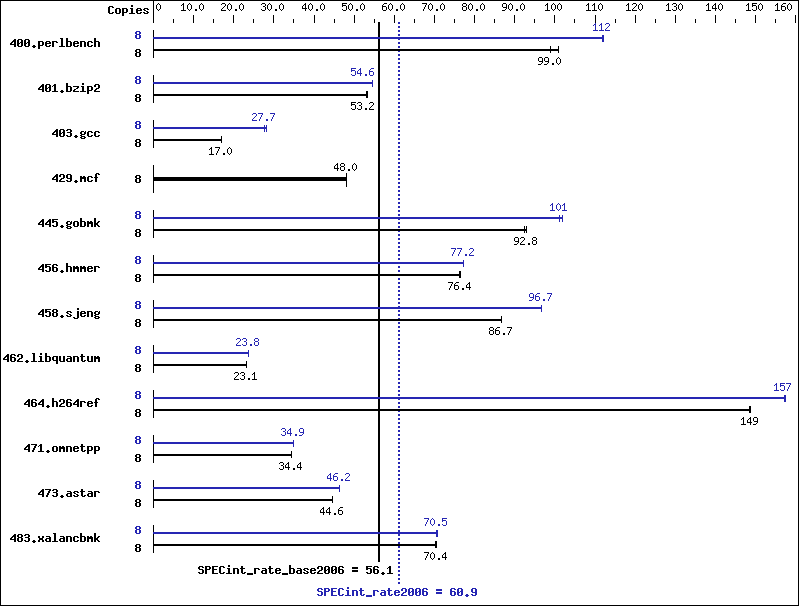

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 775 | 101 | 791 | 98.8 | 790 | 99.0 | 8 | 698 | 112 | 699 | 112 | 698 | 112 |
| 401.bzip2 | 8 | 1454 | 53.1 | 1451 | 53.2 | 1450 | 53.2 | 8 | 1414 | 54.6 | 1418 | 54.5 | 1415 | 54.6 |
| 403.gcc | 8 | 3784 | 17.0 | 3786 | 17.0 | 3792 | 17.0 | 8 | 2284 | 28.2 | 2331 | 27.6 | 2326 | 27.7 |
| 429.mcf | 8 | 1520 | 48.0 | 1521 | 48.0 | 1520 | 48.0 | 8 | 1520 | 48.0 | 1521 | 48.0 | 1520 | 48.0 |
| 445.gobmk | 8 | 903 | 93.0 | 904 | 92.8 | 908 | 92.5 | 8 | 831 | 101 | 824 | 102 | 829 | 101 |
| 456.hmmer | 8 | 979 | 76.3 | 977 | 76.4 | 977 | 76.4 | 8 | 967 | 77.2 | 966 | 77.3 | 967 | 77.2 |
| 458.sjeng | 8 | 1117 | 86.7 | 1117 | 86.7 | 1117 | 86.6 | 8 | 1000 | 96.8 | 1001 | 96.7 | 1001 | 96.7 |
| 462.libquantum | 8 | 7189 | 23.1 | 7190 | 23.1 | 7189 | 23.1 | 8 | 6976 | 23.8 | 6976 | 23.8 | 6979 | 23.8 |
| 464.h264ref | 8 | 1189 | 149 | 1192 | 149 | 1191 | 149 | 8 | 1126 | 157 | 1125 | 157 | 1126 | 157 |
| 471.omnetpp | 8 | 1452 | 34.4 | 1451 | 34.5 | 1452 | 34.4 | 8 | 1435 | 34.9 | 1431 | 34.9 | 1431 | 34.9 |
| 473.astar | 8 | 1260 | 44.6 | 1261 | 44.5 | 1259 | 44.6 | 8 | 1215 | 46.2 | 1213 | 46.3 | 1215 | 46.2 |
| 483.xalancbmk | 8 | 784 | 70.4 | 782 | 70.6 | 784 | 70.4 | 8 | 783 | 70.5 | 783 | 70.5 | 782 | 70.6 |
General Notes
Product description located as of 8/2007: http://www.actina.pl Binaries were built on Windows XP Professional SP2 Start command was used to bind processes to CPUs
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
