| CPU2006 license: | 001176 | Test date: | Oct-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | Quad Core, 2.00GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC) |
| Disk Subsystem: | 500GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | 64-Bit Suse Linux Enterprise Server 10 w/ SP1 |
| Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap library V8.1 Binutils 2.17.50.0.15 |

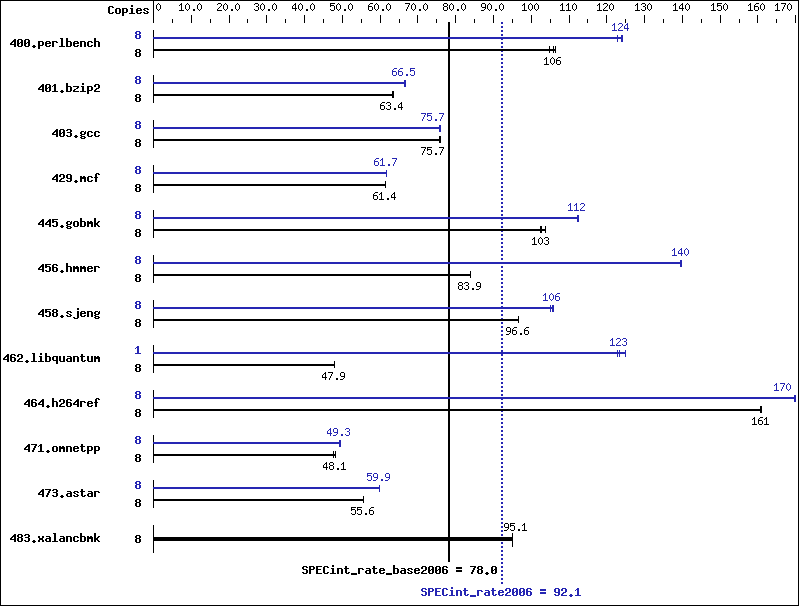

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 745 | 105 | 735 | 106 | 739 | 106 | 8 | 637 | 123 | 631 | 124 | 630 | 124 |
| 401.bzip2 | 8 | 1218 | 63.4 | 1215 | 63.5 | 1219 | 63.3 | 8 | 1157 | 66.7 | 1161 | 66.5 | 1162 | 66.4 |
| 403.gcc | 8 | 847 | 76.0 | 851 | 75.7 | 850 | 75.7 | 8 | 851 | 75.7 | 850 | 75.7 | 849 | 75.9 |
| 429.mcf | 8 | 1190 | 61.3 | 1189 | 61.4 | 1187 | 61.5 | 8 | 1181 | 61.8 | 1182 | 61.7 | 1183 | 61.7 |
| 445.gobmk | 8 | 810 | 104 | 819 | 102 | 816 | 103 | 8 | 748 | 112 | 747 | 112 | 747 | 112 |
| 456.hmmer | 8 | 890 | 83.9 | 890 | 83.9 | 889 | 84.0 | 8 | 534 | 140 | 534 | 140 | 535 | 140 |
| 458.sjeng | 8 | 1002 | 96.6 | 1002 | 96.6 | 1003 | 96.5 | 8 | 914 | 106 | 917 | 106 | 920 | 105 |
| 462.libquantum | 8 | 3457 | 47.9 | 3457 | 47.9 | 3458 | 47.9 | 1 | 169 | 123 | 168 | 123 | 166 | 125 |
| 464.h264ref | 8 | 1101 | 161 | 1100 | 161 | 1100 | 161 | 8 | 1042 | 170 | 1043 | 170 | 1043 | 170 |
| 471.omnetpp | 8 | 1037 | 48.2 | 1041 | 48.1 | 1047 | 47.8 | 8 | 1013 | 49.4 | 1014 | 49.3 | 1016 | 49.2 |
| 473.astar | 8 | 1010 | 55.6 | 1010 | 55.6 | 1010 | 55.6 | 8 | 938 | 59.9 | 938 | 59.9 | 939 | 59.8 |
| 483.xalancbmk | 8 | 580 | 95.1 | 581 | 95.1 | 580 | 95.1 | 8 | 580 | 95.1 | 581 | 95.1 | 580 | 95.1 |
General Notes
Tested systems can be used with CSE-825TQ-R700LPV case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB3.cfm The system bus runs at 1333 MHz Bios settings: Hardware Prefetcher: Enabled Adjacent Sector Prefetch: Disabled All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
