SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R460
(Intel Xeon processor E5335,2.00GHz)

SPECint®2006 = 15.5

CPU2006 license: 20 Test date: Jul-2007
Test sponsor: Bull SAS Hardware Availability: May-2007
Tested by: Bull SAS Software Availability: May-2007

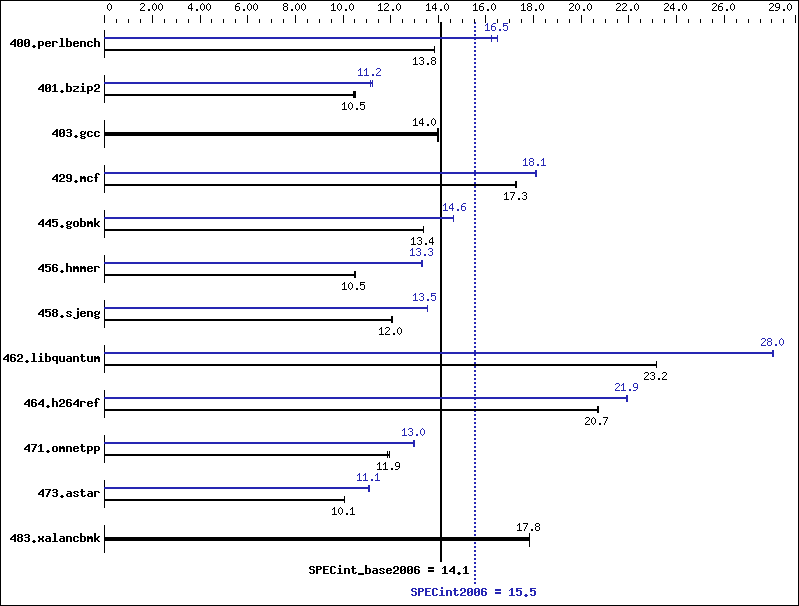

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: 2.00 GHz, 8 MB L2, 1333 MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (12x1 GB) FB-DIMM PC2-4200F ECC CL4
Disk Subsystem: 1x73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10
Kernel 2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for Linux32 version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 705 13.9 707 13.8 706 13.8 593 16.5 593 16.5 602 16.2
401.bzip2 924 10.4 916 10.5 922 10.5 860 11.2 864 11.2 865 11.2
403.gcc 576 14.0 577 14.0 575 14.0 576 14.0 577 14.0 575 14.0
429.mcf 528 17.3 528 17.3 528 17.3 504 18.1 504 18.1 505 18.1
445.gobmk 784 13.4 784 13.4 783 13.4 717 14.6 717 14.6 717 14.6
456.hmmer 889 10.5 888 10.5 889 10.5 701 13.3 700 13.3 699 13.3
458.sjeng 1003 12.1 1005 12.0 1005 12.0 893 13.6 894 13.5 893 13.5
462.libquantum 894 23.2 894 23.2 894 23.2 739 28.1 739 28.0 739 28.0
464.h264ref 1070 20.7 1068 20.7 1070 20.7 1009 21.9 1009 21.9 1011 21.9
471.omnetpp 527 11.9 523 12.0 523 11.9 482 13.0 481 13.0 482 13.0
473.astar 698 10.1 698 10.1 697 10.1 634 11.1 632 11.1 631 11.1
483.xalancbmk 387 17.8 387 17.8 387 17.8 387 17.8 387 17.8 387 17.8

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
 for peak, are compiled in 64-bit mode

General Notes


 The NovaScale R440 and the NovaScale R460 models are
 electronically equivalent.
 The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel100_flags.20090714.xml.
