CPU2006 license: | 55 | Test date: | Sep-2007 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5345 |
CPU Characteristics: | 1333MHz system bus |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10 |
Compiler: | Intel C++ Compiler for Linux32 and Linux64 version 10.1 Build 20070725 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap library V8.1 |

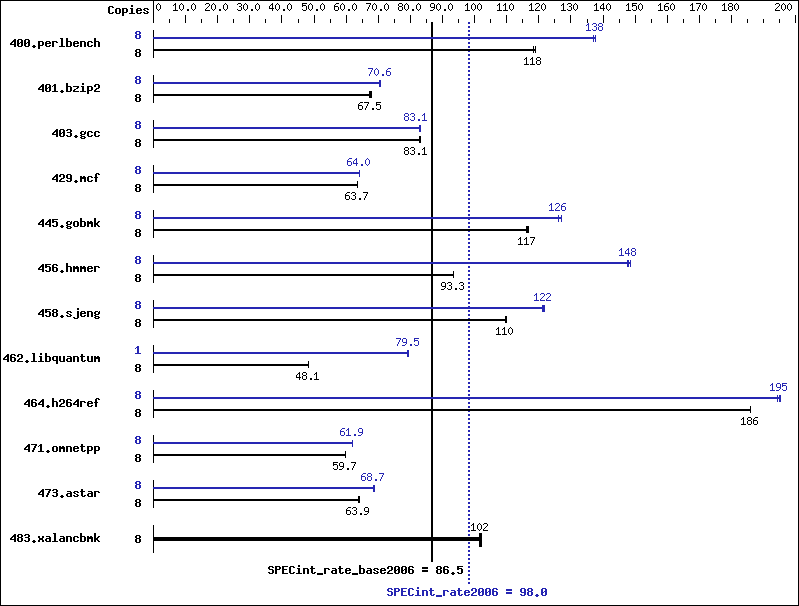

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 660 | 118 | 660 | 118 | 657 | 119 | 8 | 570 | 137 | 567 | 138 | 568 | 138 |
401.bzip2 | 8 | 1146 | 67.4 | 1138 | 67.9 | 1143 | 67.5 | 8 | 1097 | 70.4 | 1093 | 70.6 | 1093 | 70.6 |
403.gcc | 8 | 775 | 83.1 | 779 | 82.7 | 775 | 83.1 | 8 | 775 | 83.1 | 774 | 83.2 | 777 | 82.8 |
429.mcf | 8 | 1146 | 63.7 | 1147 | 63.6 | 1146 | 63.7 | 8 | 1138 | 64.1 | 1139 | 64.0 | 1140 | 64.0 |
445.gobmk | 8 | 722 | 116 | 720 | 117 | 718 | 117 | 8 | 665 | 126 | 666 | 126 | 660 | 127 |
456.hmmer | 8 | 798 | 93.5 | 800 | 93.3 | 800 | 93.3 | 8 | 506 | 147 | 505 | 148 | 503 | 149 |
458.sjeng | 8 | 880 | 110 | 883 | 110 | 883 | 110 | 8 | 797 | 122 | 794 | 122 | 799 | 121 |
462.libquantum | 8 | 3444 | 48.1 | 3445 | 48.1 | 3445 | 48.1 | 1 | 261 | 79.5 | 262 | 79.1 | 261 | 79.5 |
464.h264ref | 8 | 952 | 186 | 952 | 186 | 953 | 186 | 8 | 907 | 195 | 910 | 194 | 908 | 195 |
471.omnetpp | 8 | 837 | 59.8 | 838 | 59.6 | 837 | 59.7 | 8 | 807 | 61.9 | 808 | 61.9 | 808 | 61.9 |
473.astar | 8 | 877 | 64.0 | 879 | 63.9 | 879 | 63.9 | 8 | 818 | 68.7 | 819 | 68.6 | 817 | 68.8 |
483.xalancbmk | 8 | 540 | 102 | 544 | 102 | 542 | 102 | 8 | 540 | 102 | 544 | 102 | 542 | 102 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
