SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL580 G4
(3.0 GHz, Intel Xeon processor 7120M)

SPECfp®_rate2006 = 18.3

SPECfp_rate_base2006 = 17.9

CPU2006 license:	3	Test date:	Aug-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Aug-2006
Tested by:	Hewlett-Packard Company	Software Availability:	May-2007

Hardware
CPU Name:	Intel Xeon 7120M
CPU Characteristics:	3.0 GHz, 800 MHz system bus
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1,2,4 chips
Primary Cache:	12 K micro-ops I + 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16x2 GB PC2-3200R)
Disk Subsystem:	1x72 GB 15 K SAS
Other Hardware:	None

Software
Operating System:	SuSE LinuxEnterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-smp
Compiler:	Intel C++ Compiler for IA32/EM64T applications, Version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 Intel Fortran Compiler for applications running on Intel 64, Version 10.0 Build 20070426 Package ID: l_fc_p_10.0.023
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

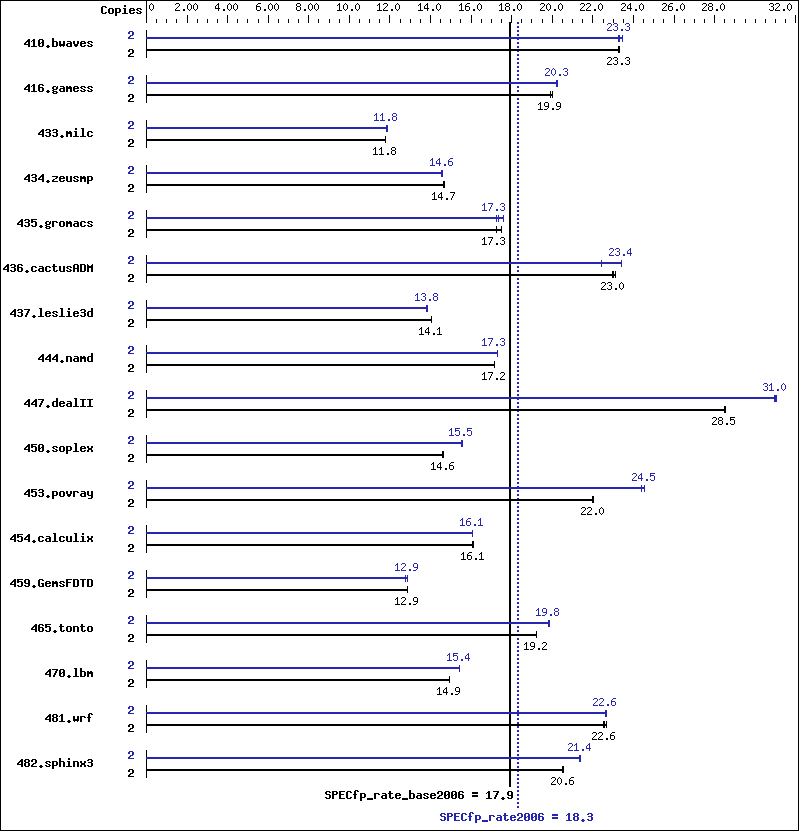

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1166	23.3	1166	23.3	1169	23.3	2	1159	23.5	1166	23.3	1169	23.2
416.gamess	2	1956	20.0	1968	19.9	1965	19.9	2	1938	20.2	1931	20.3	1931	20.3
433.milc	2	1559	11.8	1558	11.8	1558	11.8	2	1551	11.8	1554	11.8	1548	11.9
434.zeusmp	2	1241	14.7	1240	14.7	1240	14.7	2	1250	14.6	1246	14.6	1247	14.6
435.gromacs	2	829	17.2	816	17.5	828	17.3	2	828	17.2	811	17.6	824	17.3
436.cactusADM	2	1040	23.0	1033	23.1	1038	23.0	2	1021	23.4	1021	23.4	1066	22.4
437.leslie3d	2	1338	14.1	1339	14.0	1338	14.1	2	1360	13.8	1363	13.8	1359	13.8
444.namd	2	935	17.2	935	17.1	935	17.2	2	927	17.3	927	17.3	927	17.3
447.dealII	2	802	28.5	802	28.5	803	28.5	2	737	31.1	738	31.0	739	31.0
450.soplex	2	1140	14.6	1142	14.6	1140	14.6	2	1072	15.6	1074	15.5	1073	15.5
453.povray	2	483	22.0	483	22.0	484	22.0	2	434	24.5	436	24.4	433	24.6
454.calculix	2	1025	16.1	1024	16.1	1026	16.1	2	1026	16.1	1025	16.1	1026	16.1
459.GemsFDTD	2	1650	12.9	1648	12.9	1649	12.9	2	1662	12.8	1648	12.9	1649	12.9
465.tonto	2	1023	19.2	1025	19.2	1023	19.2	2	992	19.8	993	19.8	994	19.8
470.lbm	2	1842	14.9	1842	14.9	1842	14.9	2	1783	15.4	1782	15.4	1781	15.4
481.wrf	2	986	22.7	989	22.6	991	22.5	2	986	22.7	986	22.6	987	22.6
482.sphinx3	2	1895	20.6	1900	20.5	1894	20.6	2	1826	21.3	1824	21.4	1823	21.4

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  Power Regulator Disabled
  Adjacent Sector Prefetch Enabled
  Hardware Prefetcher Enabled
  Hyper-Threading Technology Disabled

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks (except as noted below):

	/opt/intel/cc/10.0.023/bin/icc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include
433.milc:	icc

C++ benchmarks (except as noted below):

	icpc
450.soplex:	/opt/intel/cc/10.0.023/bin/icpc -L/opt/intel/cc/10.0.023/lib -I/opt/intel/cc/10.0.023/include

Fortran benchmarks (except as noted below):

	ifort
437.leslie3d:	/opt/intel/fc/10.0.023/bin/ifort -L/opt/intel/fc/10.0.023/lib -I/opt/intel/fc/10.0.023/include

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias
470.lbm:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -no-scalar-rep -prefetch
482.sphinx3:	-xP -ipo -O3 -static -no-prec-div -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -ansi-alias -no-scalar-rep
450.soplex:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xP -ipo -O3 -static -no-prec-div
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -Ob0 -ansi-alias -no-scalar-rep
434.zeusmp:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div
437.leslie3d:	Same as 434.zeusmp
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -Ob0
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -fno-alias
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xP -ipo -O3 -static -no-prec-div -unroll2 -auto-ilp32
454.calculix:	-xP -ipo -O3 -static -no-prec-div -auto-ilp32
481.wrf:	Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic10-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic10-flags.xml.
