CPU2006 license: | 9006 | Test date: | Aug-2007 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Aug-2007 |
Tested by: | NEC Corporation | Software Availability: | Jun-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5310 |
CPU Characteristics: | 1.60 GHz, 2x4 MB L2 shared, 1066 MHz bus |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x73.2 GB SAS, 15000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp for x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 10.0 - Build 20070426 Package ID: l_cc_p_10.0.023 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap library 8.1 binutils-2.17.tar.gz, Version 2.17 |

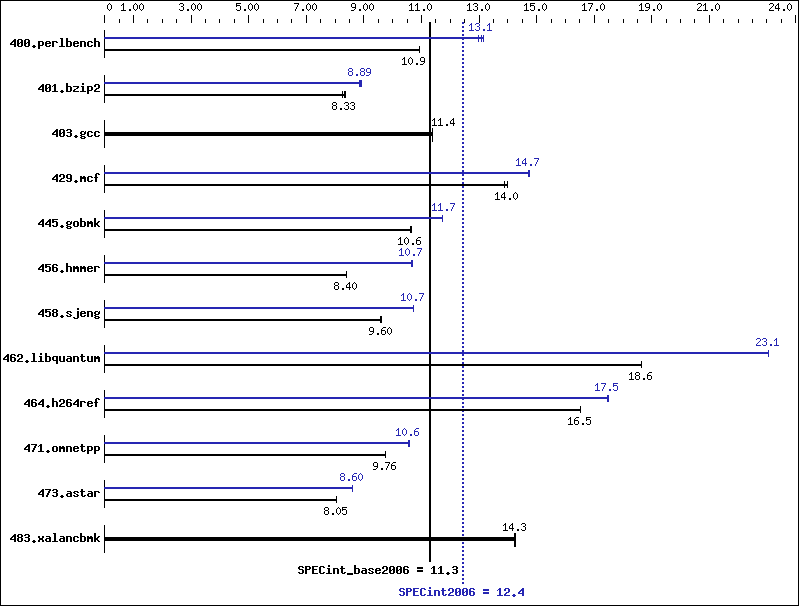

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 893 | 10.9 | 893 | 10.9 | 894 | 10.9 | 747 | 13.1 | 752 | 13.0 | 743 | 13.2 |
401.bzip2 | 1158 | 8.33 | 1168 | 8.26 | 1155 | 8.36 | 1092 | 8.83 | 1083 | 8.91 | 1085 | 8.89 |
403.gcc | 707 | 11.4 | 708 | 11.4 | 707 | 11.4 | 707 | 11.4 | 708 | 11.4 | 707 | 11.4 |
429.mcf | 652 | 14.0 | 652 | 14.0 | 657 | 13.9 | 620 | 14.7 | 618 | 14.7 | 620 | 14.7 |
445.gobmk | 986 | 10.6 | 986 | 10.6 | 986 | 10.6 | 895 | 11.7 | 895 | 11.7 | 894 | 11.7 |
456.hmmer | 1111 | 8.40 | 1111 | 8.40 | 1111 | 8.40 | 876 | 10.6 | 876 | 10.7 | 873 | 10.7 |
458.sjeng | 1260 | 9.60 | 1262 | 9.59 | 1257 | 9.62 | 1127 | 10.7 | 1130 | 10.7 | 1128 | 10.7 |
462.libquantum | 1112 | 18.6 | 1112 | 18.6 | 1111 | 18.6 | 898 | 23.1 | 899 | 23.1 | 899 | 23.1 |
464.h264ref | 1339 | 16.5 | 1338 | 16.5 | 1339 | 16.5 | 1267 | 17.5 | 1265 | 17.5 | 1269 | 17.4 |
471.omnetpp | 640 | 9.76 | 640 | 9.76 | 641 | 9.75 | 591 | 10.6 | 592 | 10.6 | 592 | 10.6 |
473.astar | 871 | 8.06 | 873 | 8.05 | 872 | 8.05 | 816 | 8.60 | 817 | 8.60 | 815 | 8.61 |
483.xalancbmk | 484 | 14.3 | 485 | 14.2 | 484 | 14.3 | 484 | 14.3 | 485 | 14.2 | 484 | 14.3 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icc | |
401.bzip2: | /opt/intel/cce/10.0.023/bin/icc |
456.hmmer: | /opt/intel/cce/10.0.023/bin/icc |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast |
403.gcc: | basepeak = yes |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
456.hmmer: | -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | Same as 471.omnetpp |
483.xalancbmk: | basepeak = yes |
