| CPU2006 license: | 97 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5140 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73 GB 10000RPM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 EM64T (kernel 2.6.16.21-0.8-smp) |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

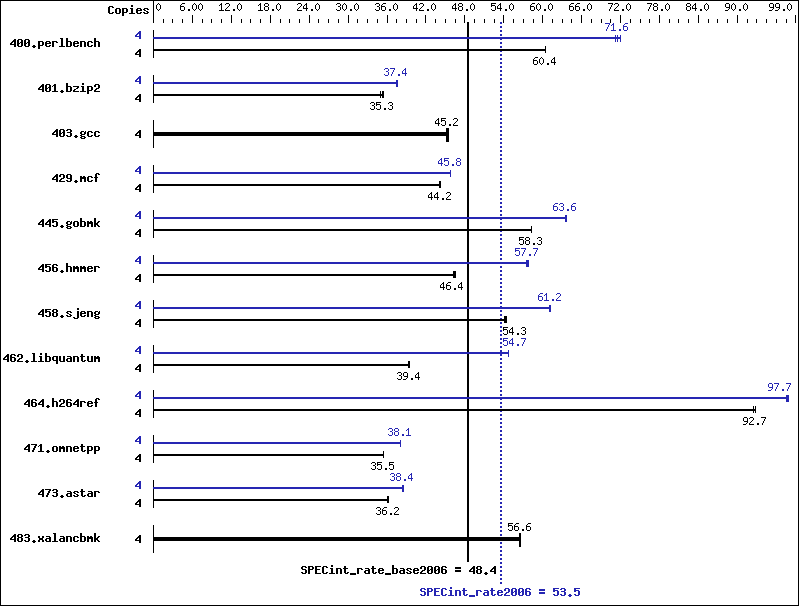

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 647 | 60.4 | 646 | 60.5 | 647 | 60.4 | 4 | 549 | 71.2 | 546 | 71.6 | 543 | 71.9 |
| 401.bzip2 | 4 | 1089 | 35.5 | 1092 | 35.3 | 1106 | 34.9 | 4 | 1026 | 37.6 | 1032 | 37.4 | 1031 | 37.4 |
| 403.gcc | 4 | 708 | 45.5 | 712 | 45.2 | 712 | 45.2 | 4 | 708 | 45.5 | 712 | 45.2 | 712 | 45.2 |
| 429.mcf | 4 | 826 | 44.2 | 826 | 44.2 | 826 | 44.2 | 4 | 798 | 45.7 | 796 | 45.8 | 797 | 45.8 |
| 445.gobmk | 4 | 719 | 58.3 | 720 | 58.3 | 720 | 58.3 | 4 | 659 | 63.7 | 660 | 63.6 | 661 | 63.5 |
| 456.hmmer | 4 | 807 | 46.2 | 802 | 46.5 | 804 | 46.4 | 4 | 650 | 57.4 | 647 | 57.7 | 646 | 57.8 |
| 458.sjeng | 4 | 894 | 54.2 | 889 | 54.4 | 891 | 54.3 | 4 | 791 | 61.2 | 793 | 61.0 | 791 | 61.2 |
| 462.libquantum | 4 | 2107 | 39.3 | 2104 | 39.4 | 2104 | 39.4 | 4 | 1515 | 54.7 | 1514 | 54.7 | 1514 | 54.7 |
| 464.h264ref | 4 | 957 | 92.5 | 955 | 92.7 | 954 | 92.8 | 4 | 904 | 97.9 | 907 | 97.6 | 906 | 97.7 |
| 471.omnetpp | 4 | 704 | 35.5 | 705 | 35.5 | 704 | 35.5 | 4 | 655 | 38.1 | 657 | 38.1 | 656 | 38.1 |
| 473.astar | 4 | 777 | 36.2 | 778 | 36.1 | 775 | 36.2 | 4 | 730 | 38.5 | 731 | 38.4 | 733 | 38.3 |
| 483.xalancbmk | 4 | 488 | 56.6 | 487 | 56.6 | 489 | 56.4 | 4 | 488 | 56.6 | 487 | 56.6 | 489 | 56.4 |
General Notes
taskset was used to bind copies to cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
